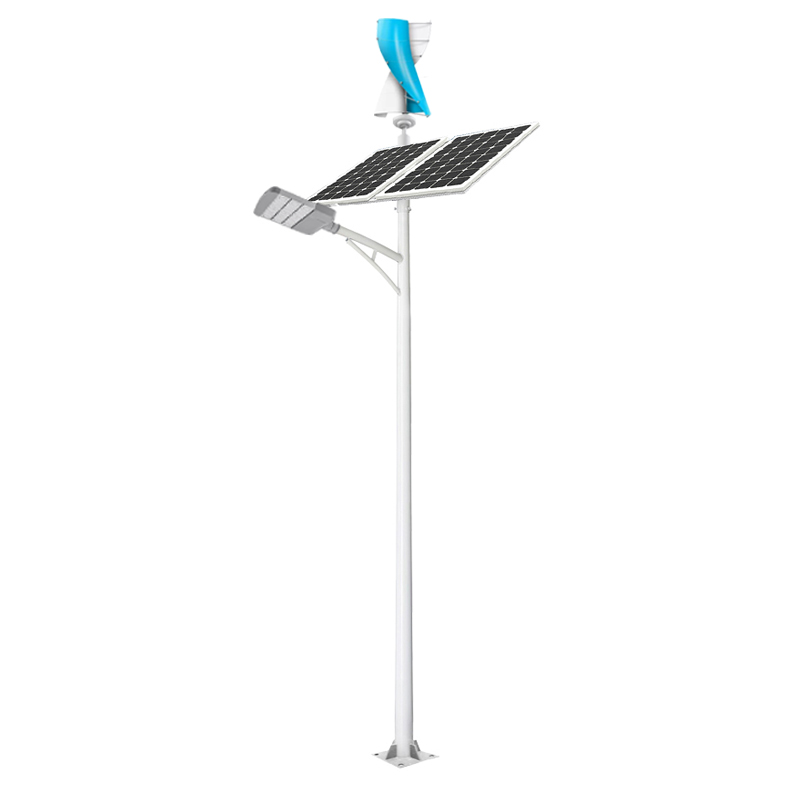

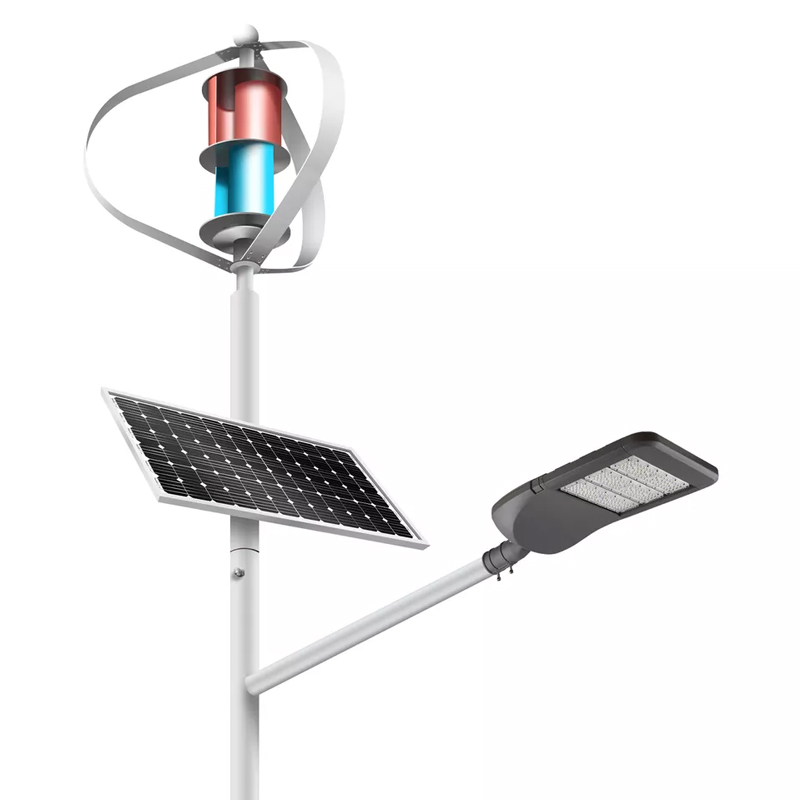

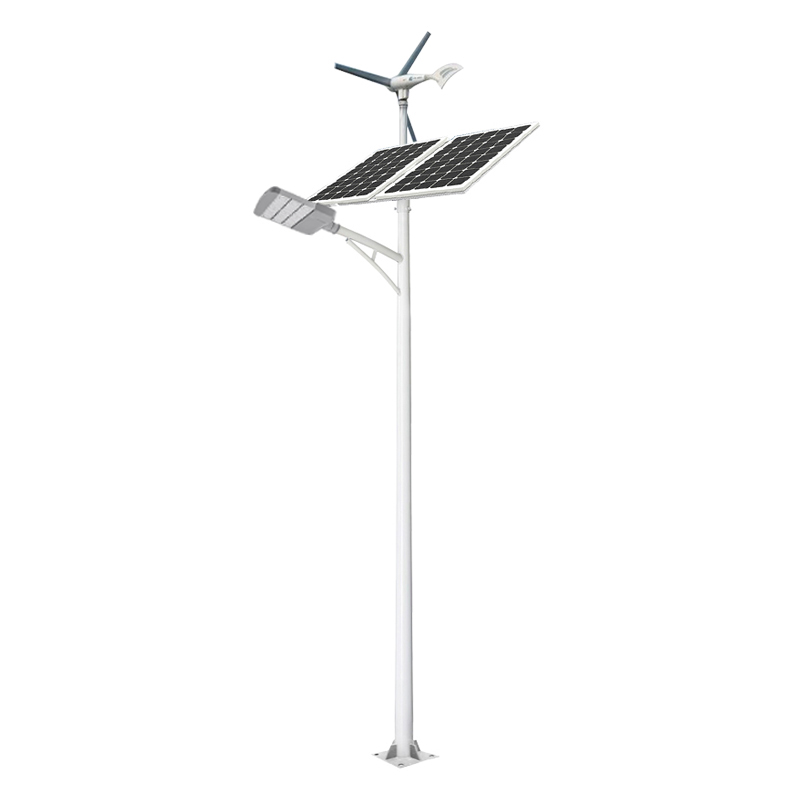

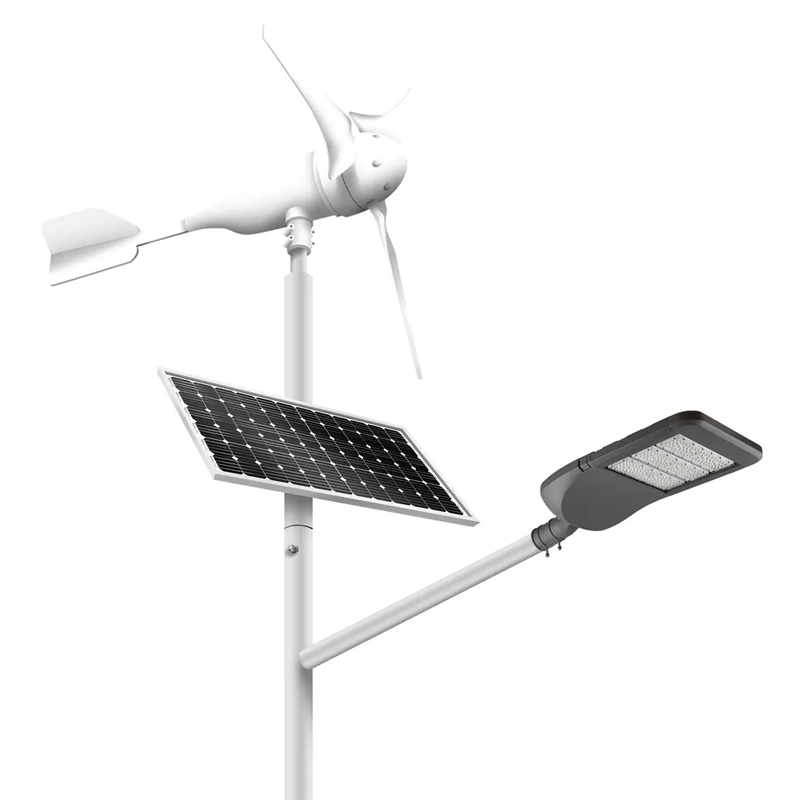

30W-120W Solar wind turbine hybrid Street Light with pole

SEND INQUITY
30W-120W Solar wind turbine hybrid Street Light with pole
30W-120W Solar wind turbine hybrid Street Light with pole
30W-120W Solar wind turbine hybrid Street Light with pole
30W-120W Solar wind turbine hybrid Street Light with pole
30W-120W Solar wind turbine hybrid Street Light with pole

Quick Information
  • Power: 30W-120W
  • Material: Die-cast Aluminum
  • LED Chip: Luxeon,Cree,Bridgelux,3030
  • Light Efficiency: >170lm/W
  • CCT: 3000-6500k
  • Viewing Angle: 120°
  • IP: 66
  • Working Environment: 30℃~+70℃

Our Advantages

LECUSO is a company that specializes in solar wind hybrid street lights, which offer a combination of solar and wind energy generation for increased complementarity and stability. This means that the street lights can harness power from both the sun and the wind, ensuring a more reliable and consistent energy supply.

To provide sufficient power for the hybrid street lights, LECUSO utilizes high-performance and large capacity maintenance-free lead-acid batteries or lithium batteries. These batteries are designed to store energy generated by the solar panels and wind turbines, ensuring that the street lights can operate even during rainy days or in areas with insufficient sunlight.

LECUSO's hybrid street lights are equipped with high-efficiency fans that have a minimum start wind speed of 2.0m/s. This means that even in low wind conditions, the fans can begin operating and contribute to the energy generation. Additionally, the street lights utilize MPPT (Maximum Power Point Tracking) fast charging technology, which optimizes the charging process to extract maximum power from the solar panels and wind turbines. These features enable the street lights to work stably for more than 10 days even in bad weather conditions.

LECUSO has successfully installed solar hybrid street lights in various countries, including Russia and Poland. These street lights have demonstrated reliable performance even in harsh weather conditions, such as temperatures as low as -20℃. This indicates that LECUSO's products are designed to withstand extreme temperatures and continue functioning effectively.

The specifications of LECUSO's hybrid street lights include a fan power range of 100W-500W. The solar cells used in the street lights are made of either monocrystalline or polycrystalline silicon, which are known for their high conversion rates and efficient energy generation. The street lights are equipped with an MPPT controller that offers time control and light control functionalities. This controller helps prevent overcharging and overdischarging of the batteries and includes output short circuit protection, ensuring the safe and efficient operation of the street lights.


Specification

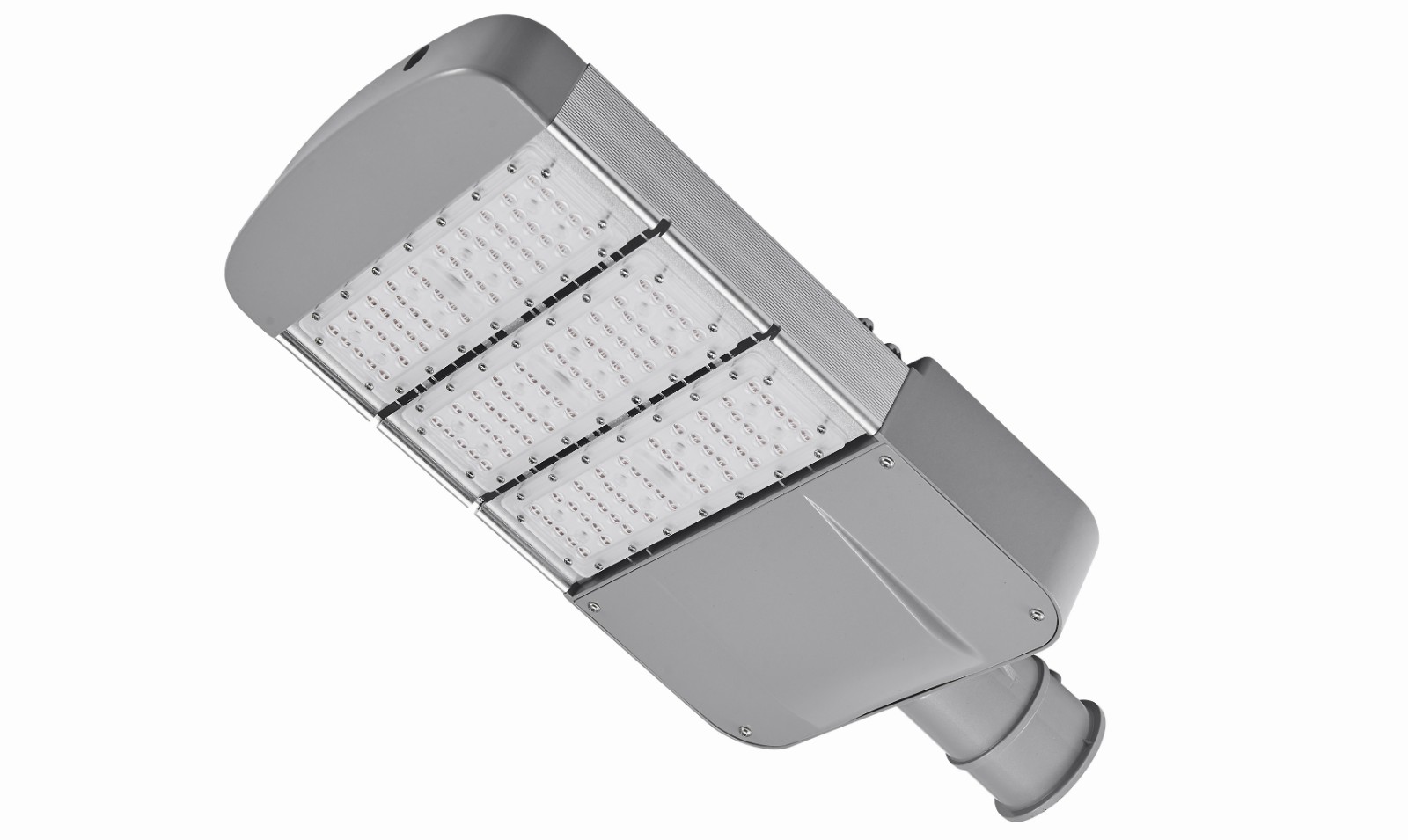

PIC

Item

30w60w 80w   100w 120w led street light


Power

30w-120w

LED Chip

Cree/Bridgelux/Philips   Brand

Light   Efficiency

>120lm/w-140Lm/w

CCT

3000-6500K

Viewing   Angle

120°

IP

65

Working Environment:

-30℃~+70℃

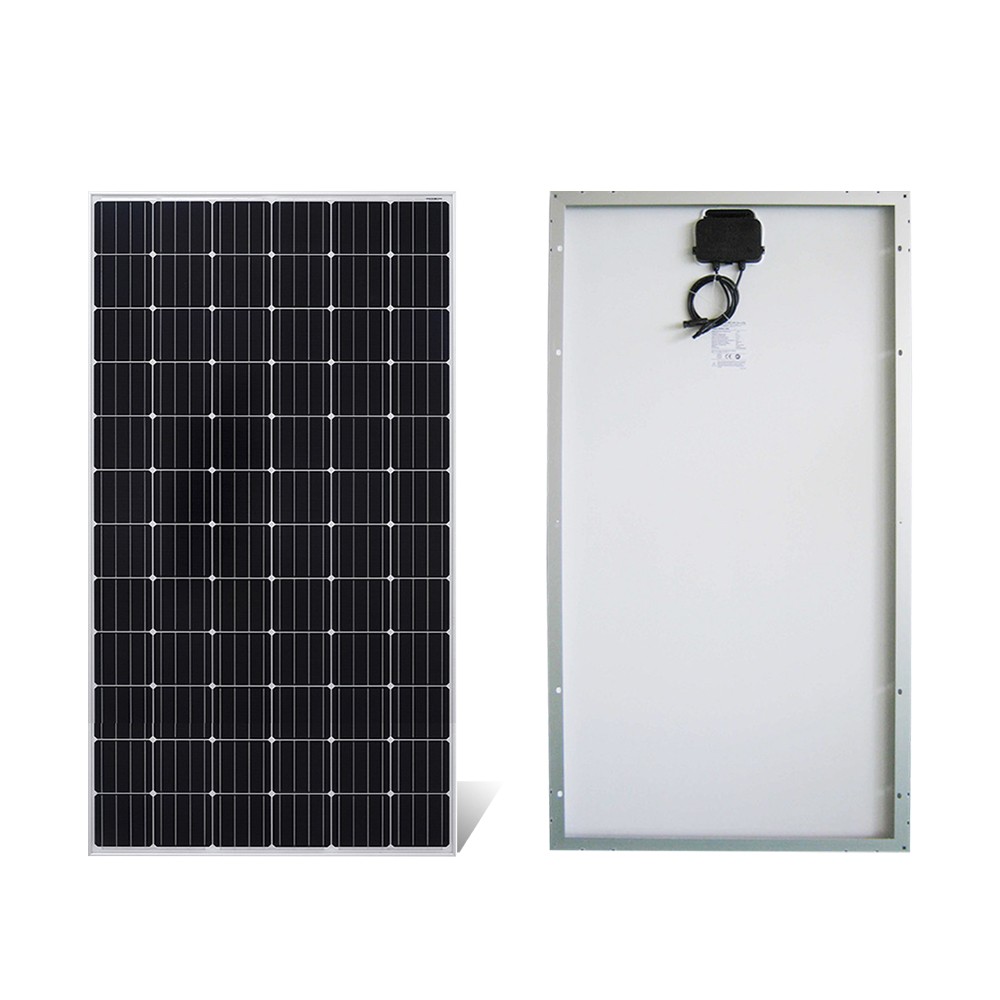

PIC

Item

Mono/Poly   Solar Panel


Power

100w-300w

Efficiency of   solar cells

>18%

Maximum   power voltage

18.5v

Maximum   circult voltage

8.11A

Open circult   voltage

22.2

Short   circult current

8.52

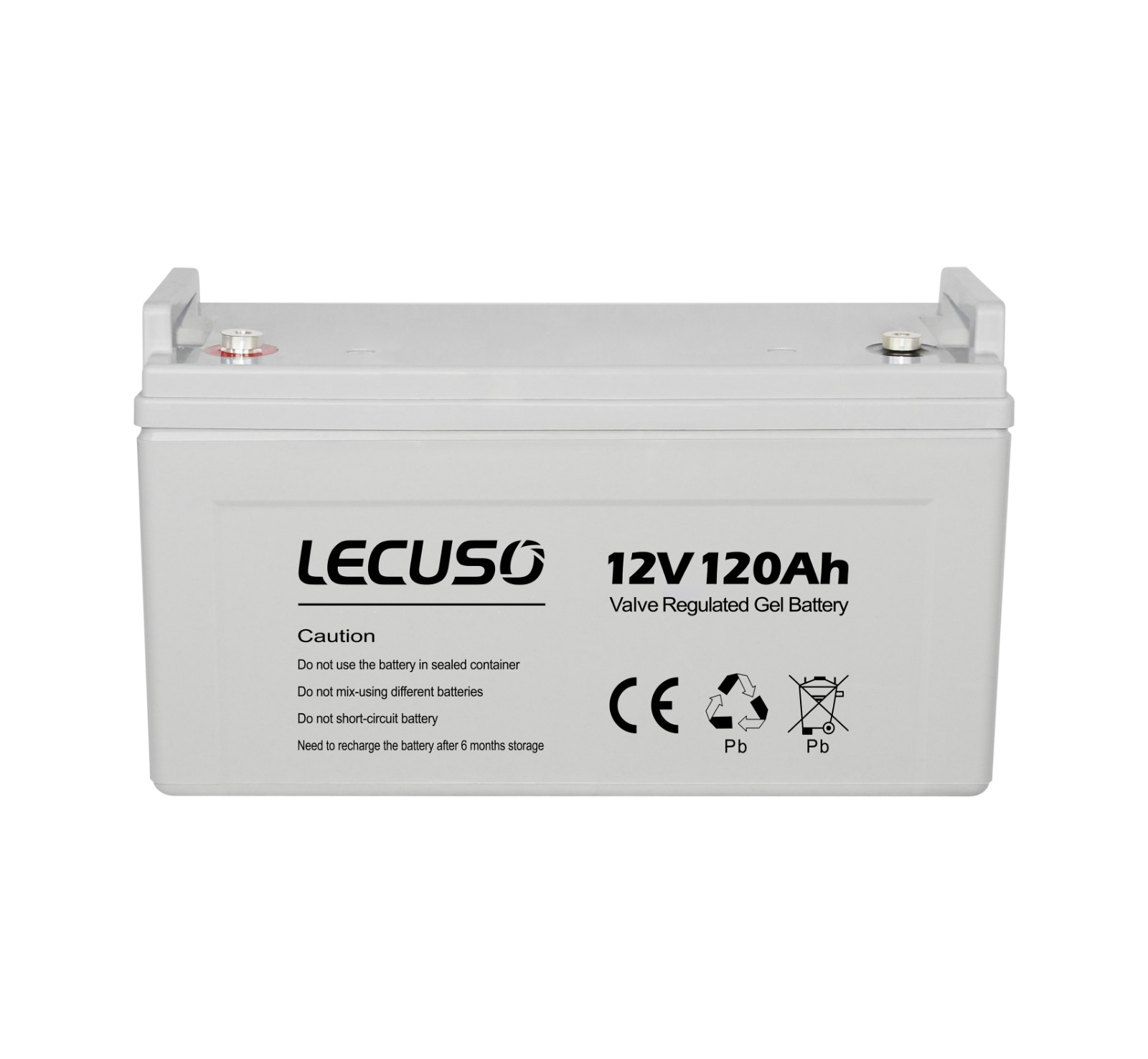

PIC

Item

Gel   Battery


Rated   Voltage

12v/24V

Rated   Capacity

50AH-200AH

Terminal

Cable(2.5mm²×2 m)

Maximum   Charge Current

20A

Case

ABS

Warranty

3Years

Size

405*173*231mm

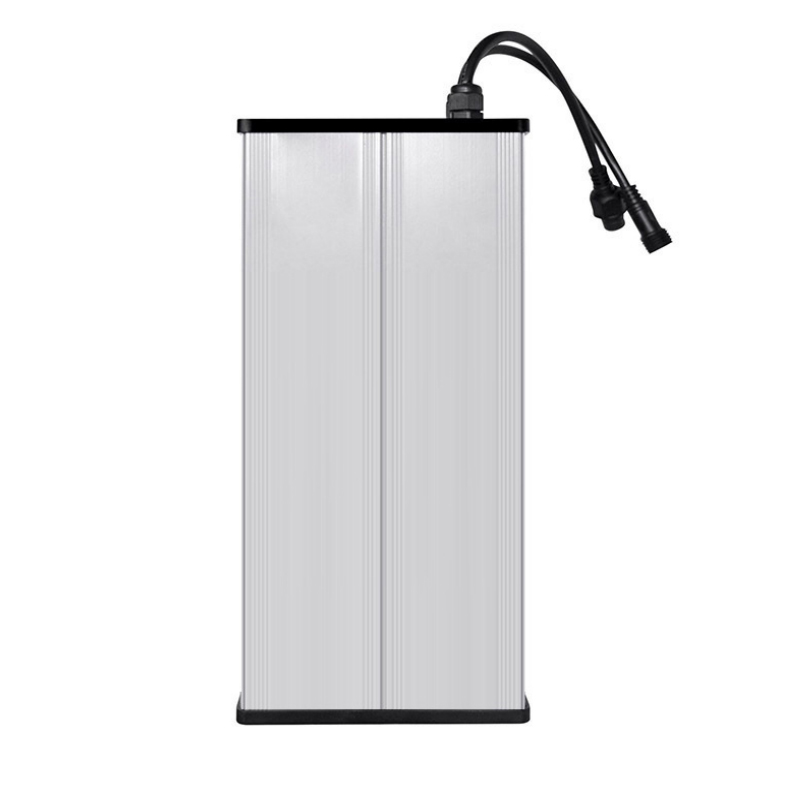

PIC

Item

Lithium Battery


Rated Voltage

12v/24v

Rated Capacity

30AH-200AH

Terminal

Cable(2.5mm²×2 m)

Maximum Charge Current

20A

Case

Aluminium/Steel

Warranty

3Years/5Years

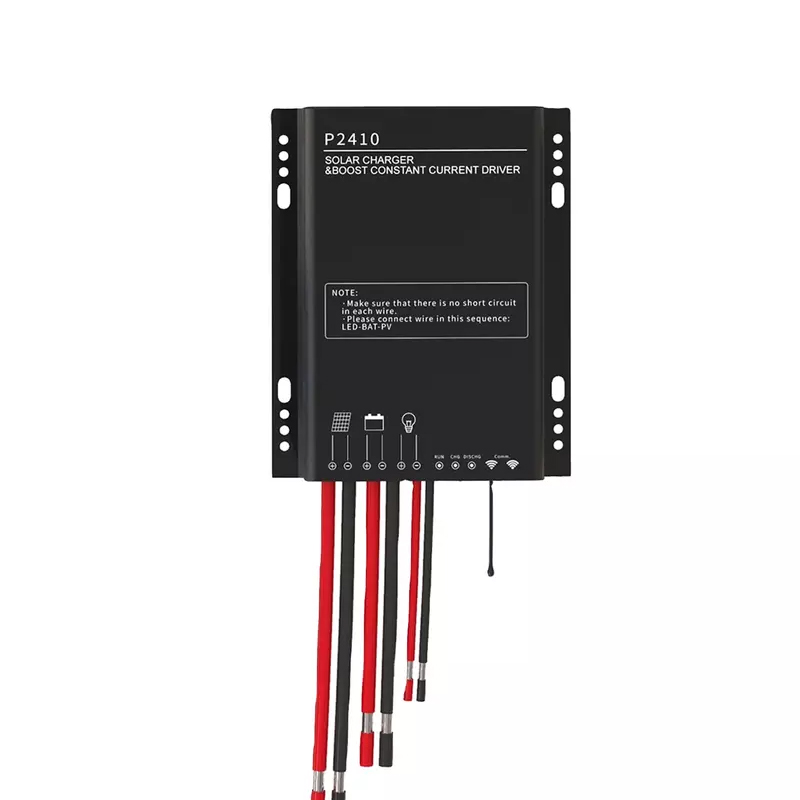

PIC

Item

Solar Controller


Rated working voltage

12/24V

Max. charging current

10A-20A

levels of protection

IP67

Maximum Charge Current

20A

Constant current efficiency

96%

Output voltage range

Max panel/ 24V 480WP   solar panel

Warranty

3years

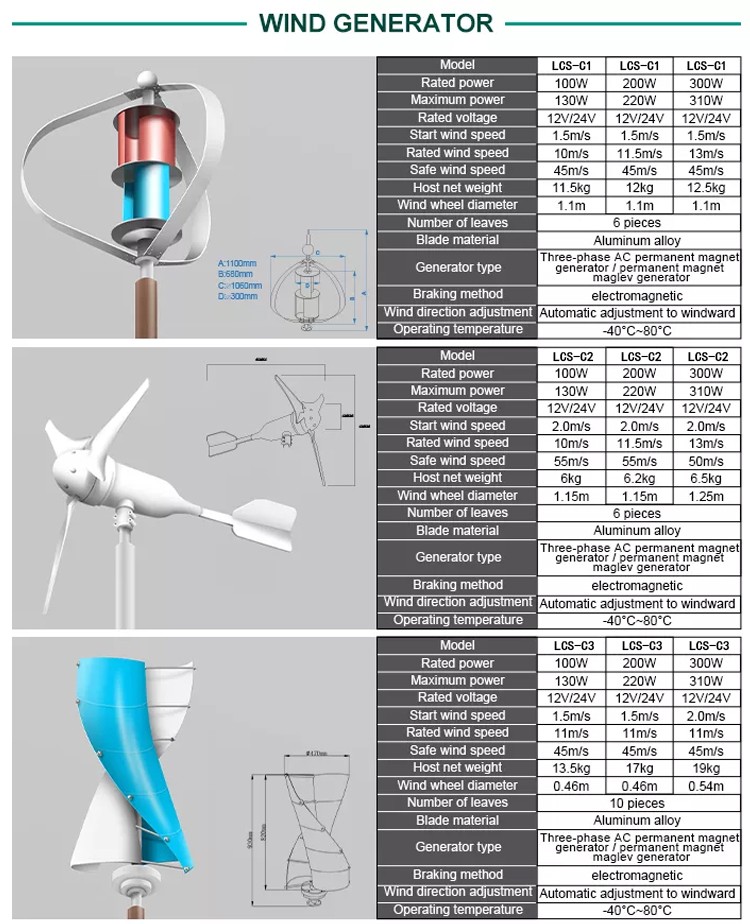

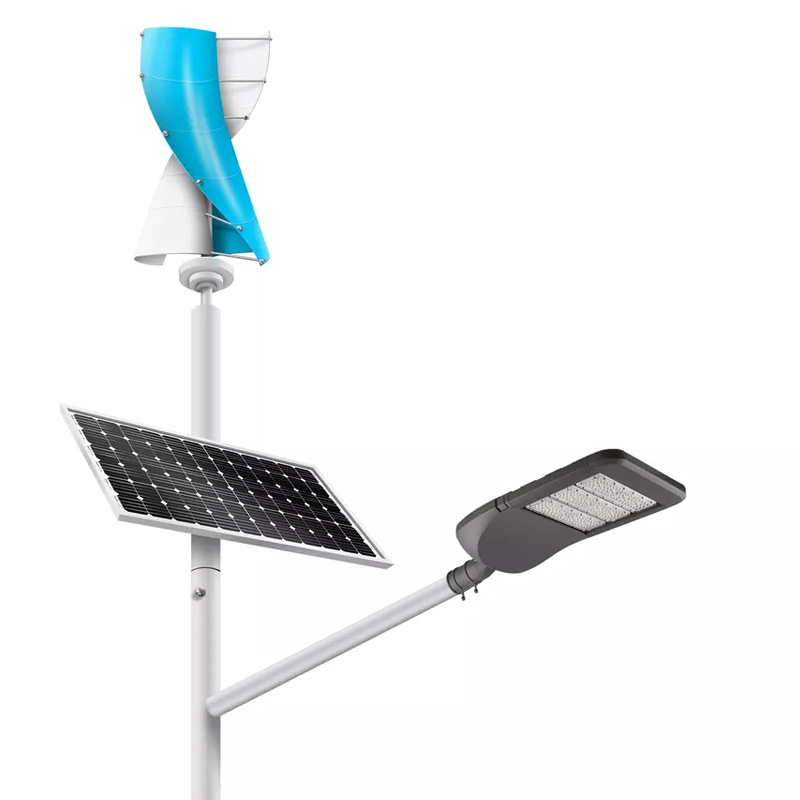

PIC

Item

Wind Tubine


Rated voltage

12/24V

Start Wind Speed

2.0m/s

Rated Wind Speed

10m/s

Blades Number

3/5

Generator

Three phase   permanent magnel ac generator

Working   temperature

-40℃~+80℃

Warranty

3years

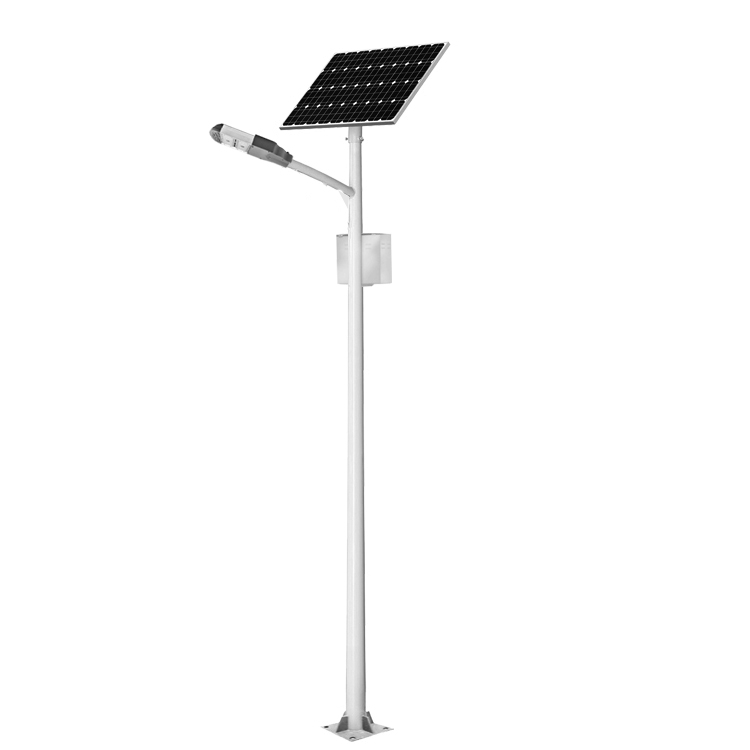

PIC

Item

6-12M   Street light pole


Material

Q235   Steel

Diameter

80/170mm

Thickness

3.0mm-5.0mm

Light   Arm

1.5M

Base   plate

350*350*20mm

Anchor   Bolt

4-M20-800mm

Surface   Treatment

Hot   dip galvanized+ Powder Coating

Warranty

20years







Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.
