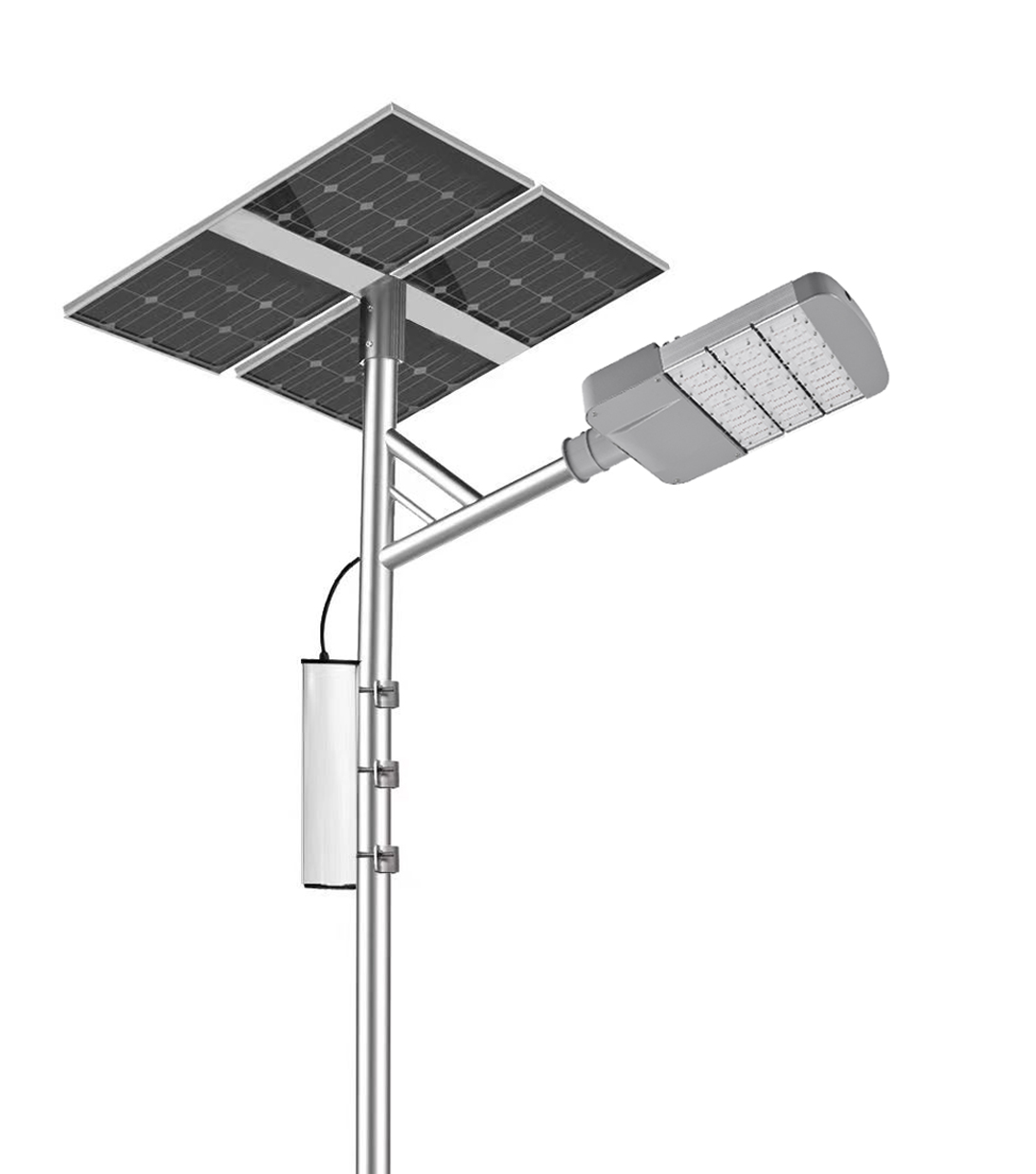

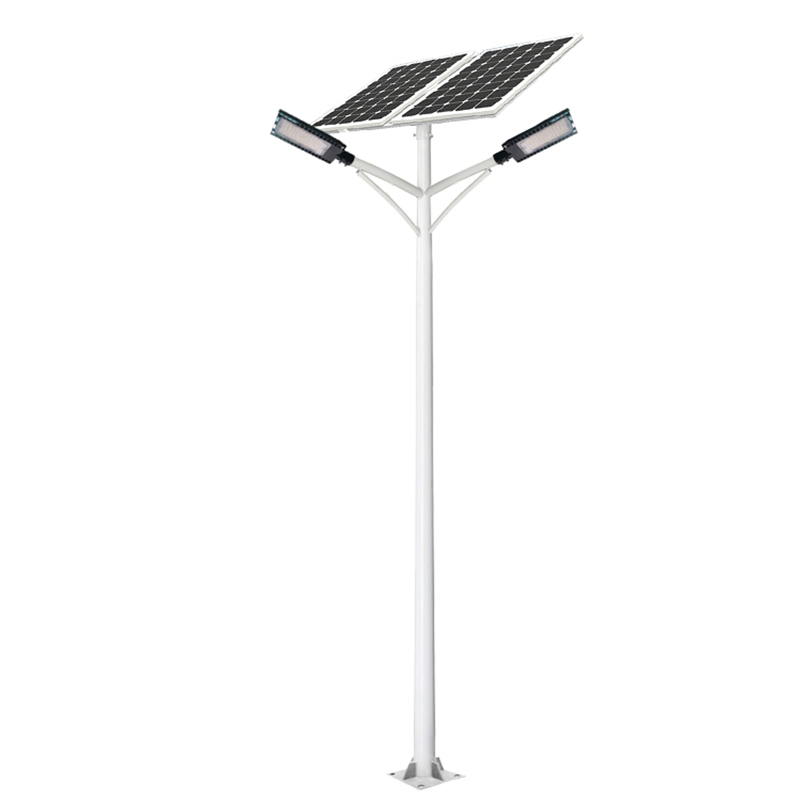

9M 80W High Brightness single and double arm Solar Street Light

SEND INQUITY
9M 80W High Brightness single and double arm Solar Street Light
9M 80W High Brightness single and double arm Solar Street Light
9M 80W High Brightness single and double arm Solar Street Light
9M 80W High Brightness single and double arm Solar Street Light

Quick Information
  • Power: 80W
  • Material: Die-cast Aluminum
  • LED Chip: Luxeon,Cree,Bridgelux,3030
  • Light Efficiency: >170lm/W
  • CCT: 3000-6500k
  • Viewing Angle: 120°
  • IP: 66
  • Working Environment: 30℃~+70℃

Our Advantages

Working Mode: The LED lamp in this product has a default working time of 12 hours (factory setup). It operates in different modes based on specific customer needs. The sequence can be set to provide 4 hours of brightness, followed by 4 hours of 50% brightness, and then 4 hours of 30% brightness. This flexibility allows customization for different lighting requirements.

Wide Lighting Angle and Auto On/Off: The luminaire provides a wide lighting angle of 120°, ensuring a broad coverage area. Once fully charged, the product can support lighting for 3-7 nights, depending on the settings and usage. It is easy to install and equipped with an automatic on/off feature, providing convenience and energy efficiency.

Solar Bracket Angle Design: The product incorporates a solar bracket angle design. This design aims to optimize the solar cell module's exposure to solar radiation throughout the year. Generally, an optimal angle of 15-30 degrees is chosen to maximize solar energy absorption.

CE Certified and European Standards: All parts of the product are CE certified, indicating that they meet the quality and safety standards set by the European Union. This certification ensures that the product adheres to high-quality levels and complies with European standards.

IP66 Rainproof Structure: The product features an IP66 rainproof structure, providing a high level of protection against water ingress. The main body of the structure is made of alloy material, which enhances its resistance to rust and corrosion. This ensures the safety and reliability of the product even in challenging weather conditions.

High-Capacity and Long-Life Lithium Battery: The product utilizes a high-capacity and long-life (Class A) lithium battery. This battery has excellent high-temperature characteristics and a long service life, ensuring the overall durability and longevity of the product. The use of a high-quality lithium battery contributes to the reliability and performance of the lighting system.


Specification

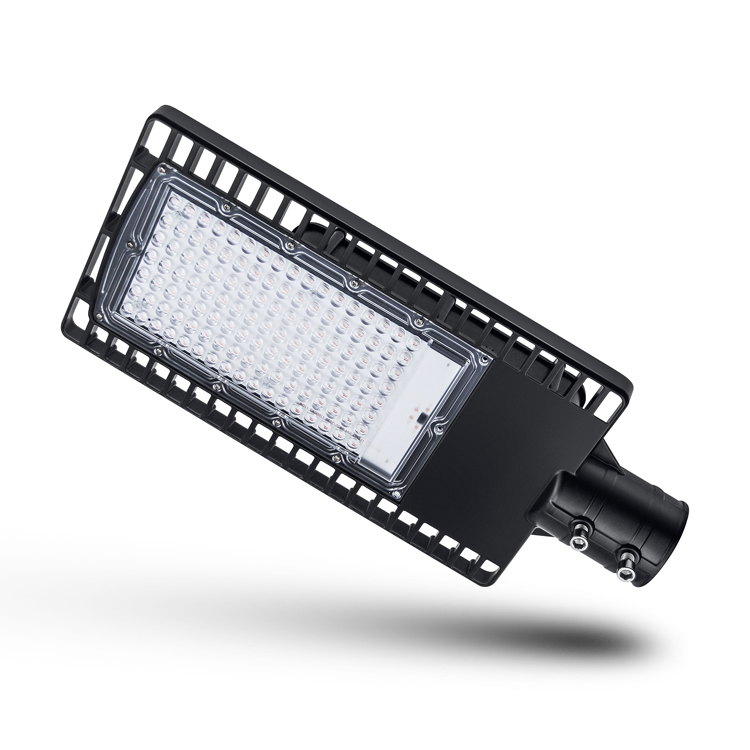

PIC

Item

80W


Power

80w

LED Chip

Cree/Bridgelux/Philips   Brand

Light   Efficiency

>120lm/w-140Lm/w

CCT

3000-6500K

Viewing   Angle

120°

IP

65

Working Environment:

30℃~+70℃

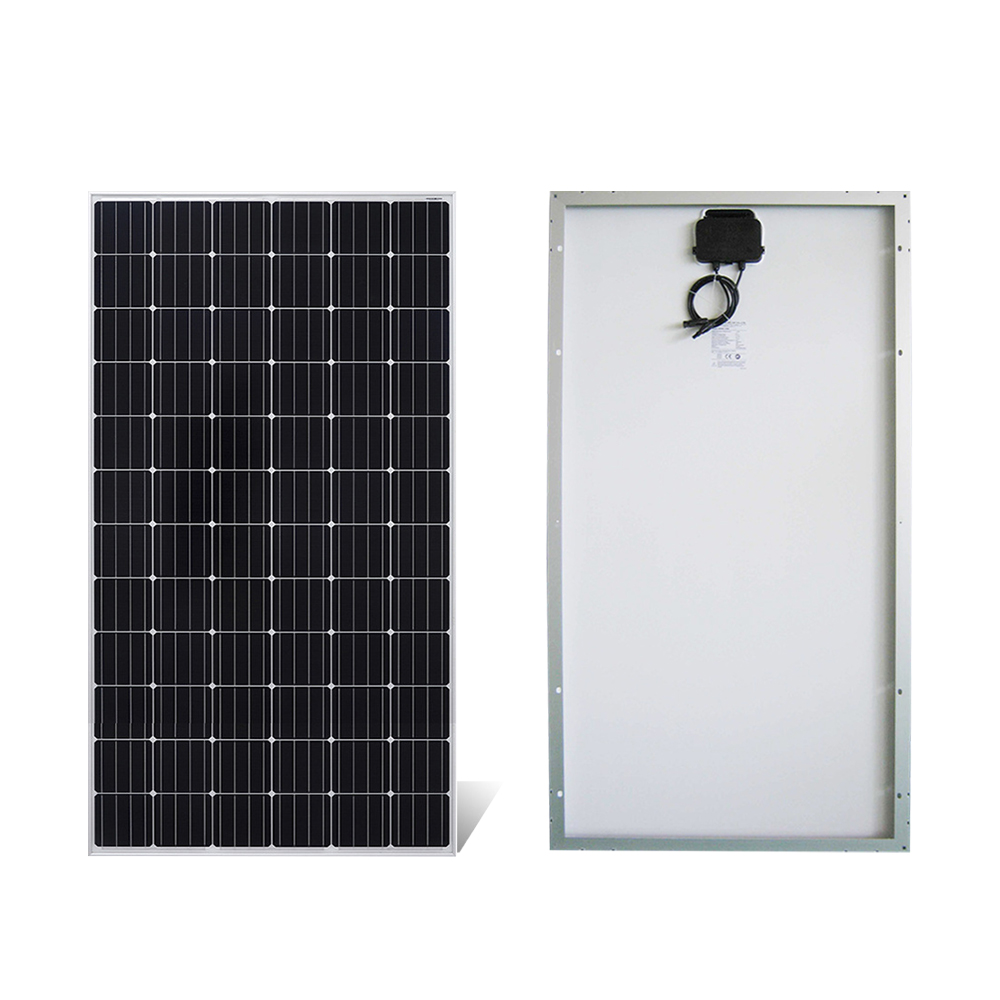

PIC

Item

120w Mono   Solar Panel 2pcs


Power

120w

Efficiency of   solar cells

>18%

Maximum   power voltage

18.7v

Maximum   circult voltage

6.42A

Open circult   voltage

22.44

Short   circult current

6.74

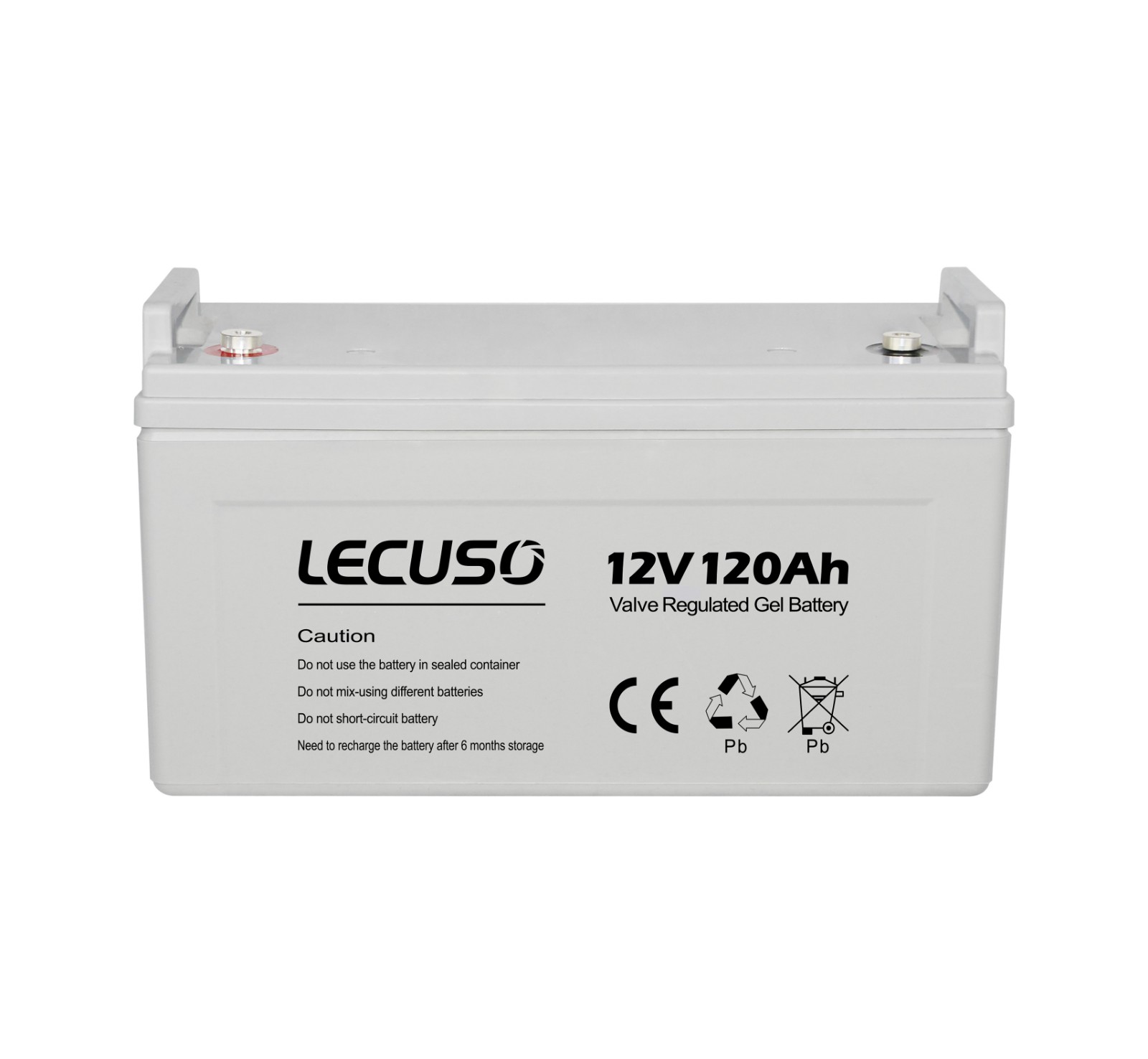

PIC

Item

Gel Battery   2pcs


Rated Voltage

12v

Rated Capacity

80AH

Terminal

Cable2.5mm²×2   m

Maximum Charge Current

20A

Case

ABS

Warranty

3Years

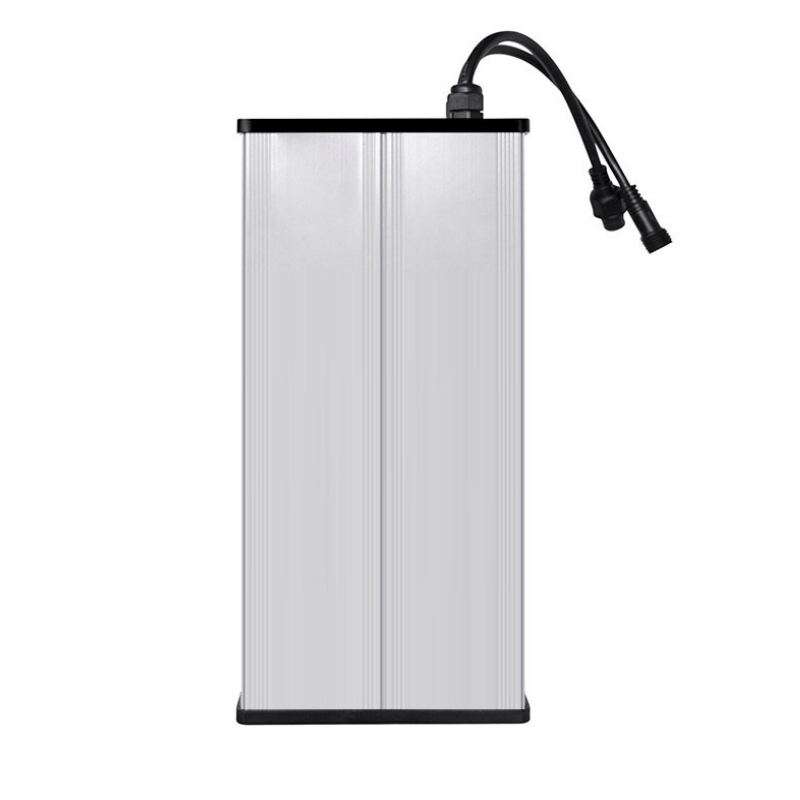

PIC

Item

Lithium Battery


Rated Voltage

24v

Rated Capacity

60AH 1536WH

Terminal

Cable2.5mm²×2   m

Maximum Charge Current

10A

Case

Aluminium/Steel

Warranty

3Years



PIC

Item

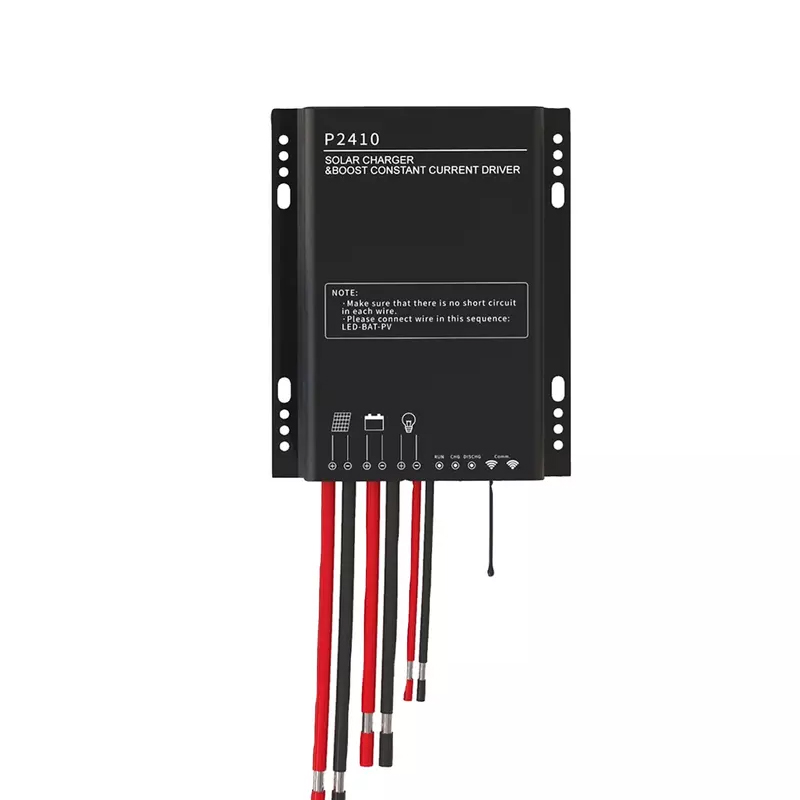

Solar Controller


Rated working voltage

12V/24V

Max. charging current

15A

levels of protection

IP67

Maximum Charge Current

15A

Constant current efficiency

96%

Output voltage range

Max panel/ 12V 480WP   solar panel

Warranty

3years


PIC

Item

9M   Street light pole


Material

Q235   Steel

Diameter

80/200mm

Thickness

3.5mm

Light   Arm

1.5M

Base   plate

350*350*20mm

Anchor   Bolt

4-M20-800mm

Surface   Treatment

Hot   dip galvanized+ Powder Coating

Warranty

20years


Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.
