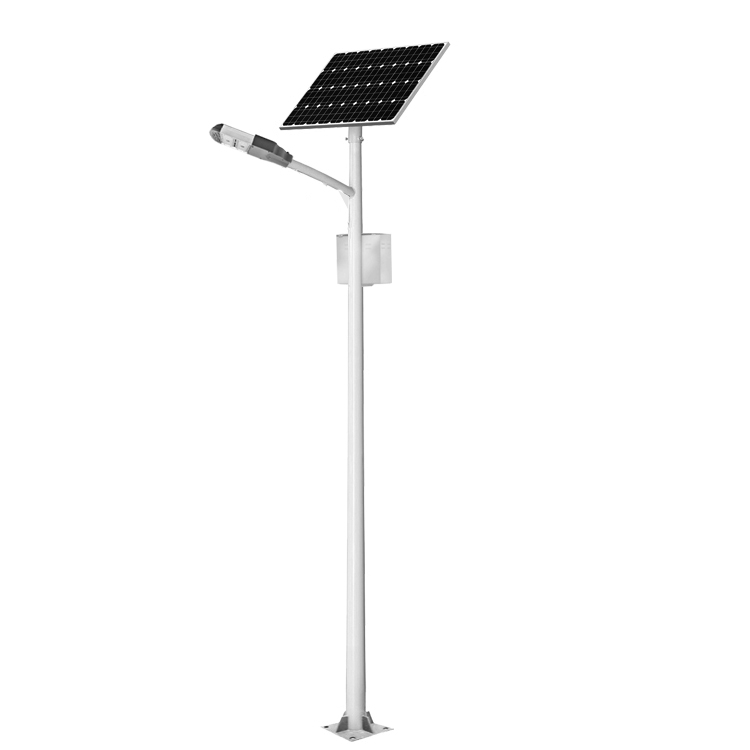

12M 120W Best Quality Solar Street Lights

SEND INQUITY

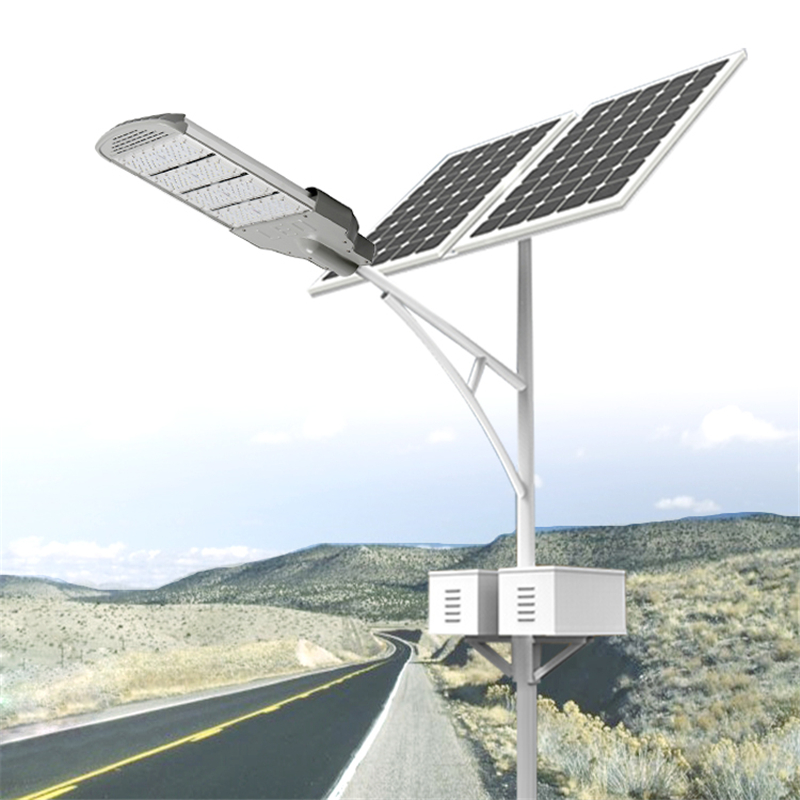

12M 120W Best Quality Solar Street Lights
12M 120W Best Quality Solar Street Lights
12M 120W Best Quality Solar Street Lights
12M 120W Best Quality Solar Street Lights

Quick Information
  • Power: 60W
  • Material: Die-cast Aluminum
  • LED Chip: Luxeon,Cree,Bridgelux,3030
  • Light Efficiency: >170lm/W
  • CCT: 3000-6500k
  • Viewing Angle: 140°
  • IP: 66
  • Working Environment: 30℃~+70℃

Our Advantages

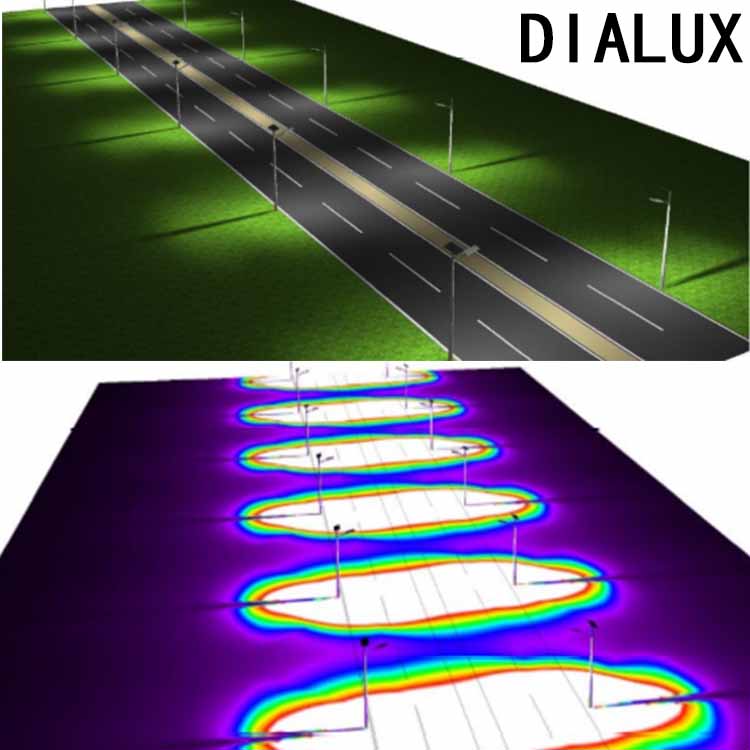

The 12m 120w solar street light is suitable for highway and main street lighting, as it provides adequate lighting effects with a lux level of 30-40. It meets the standard requirements for road street lights.

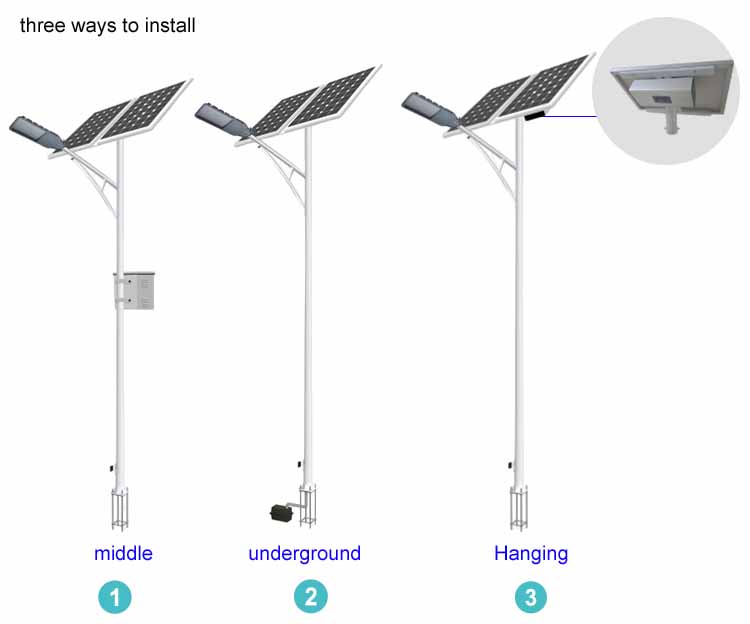

The solar street light uses a split design for battery charging. This design ensures a long battery lifespan, even when used in extreme temperature conditions ranging from -20°C to +60°C. This feature allows the solar street light to operate reliably in various weather conditions.

With a high brightness of 20400 lumens, the solar street light can effectively illuminate 2-4 lanes of the road. This level of brightness ensures sufficient visibility for motorists and pedestrians, contributing to road safety.

The solar street light is equipped with an automatic dusk-to-dawn sensor. It turns on automatically at dusk, providing illumination throughout the night, and turns off at dawn when natural daylight is sufficient. This feature eliminates the need for manual control and ensures energy efficiency.

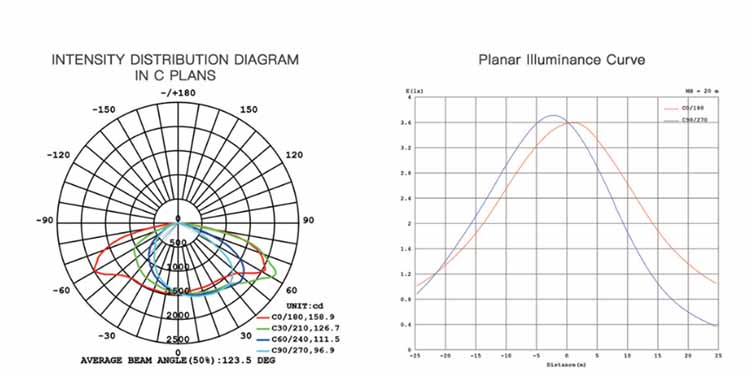

The solar street light has a wide lighting angle of 140°, which allows it to cover a wider road area. This wide coverage ensures that the light reaches a larger portion of the road, enhancing visibility and safety for road users.

The solar street light utilizes high-capacity, long-life lithium or gel batteries to ensure the product's overall service life. The adoption of a modular design concept facilitates installation, maintenance, and repair processes, making it easier to handle and manage the street light system. Additionally, the main body of the structure is made from alloy material, providing excellent rust and corrosion prevention properties, which helps to extend the product's lifespan.


Specification

PIC

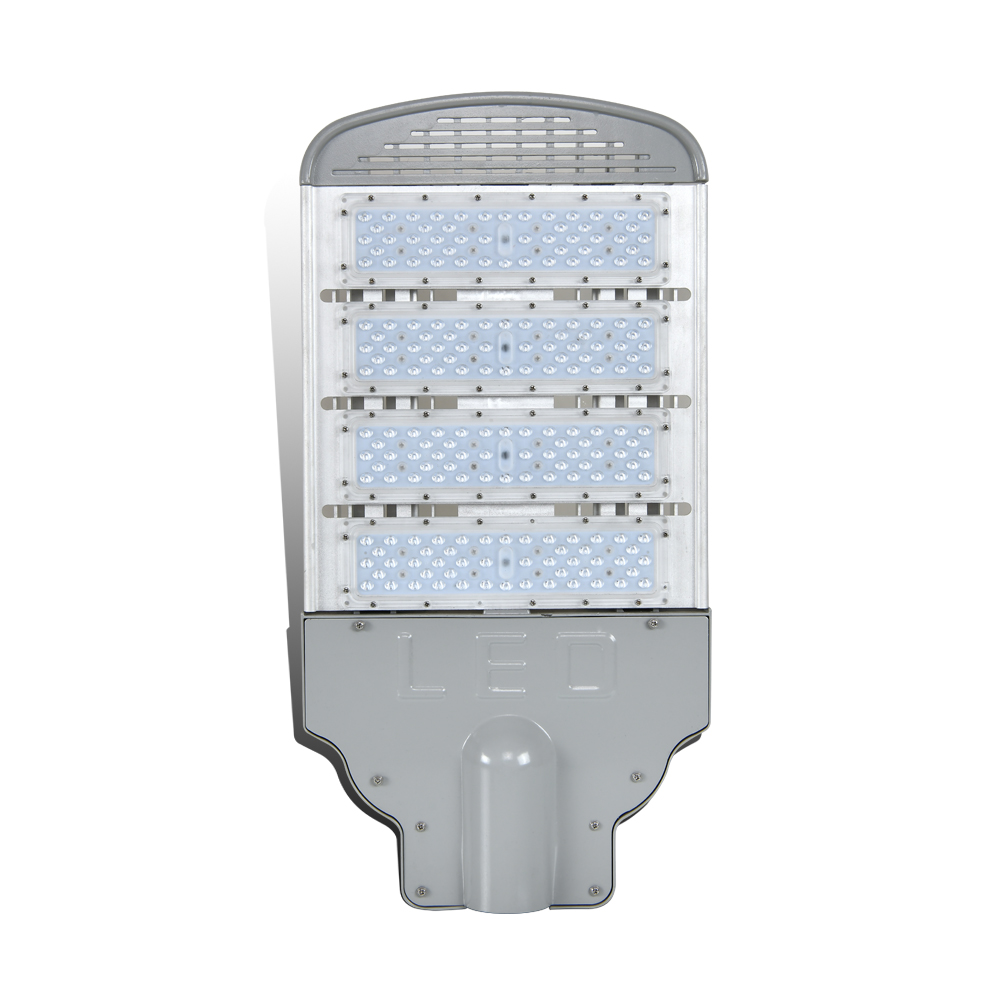

Item

120W


Power

120w

LED Chip

Cree/Bridgelux/Philips   Brand

Light   Efficiency

>170Lm/w

CCT

3000-6500K

Viewing   Angle

120°

IP

65

Working Environment:

30℃~+70℃



PIC

Item

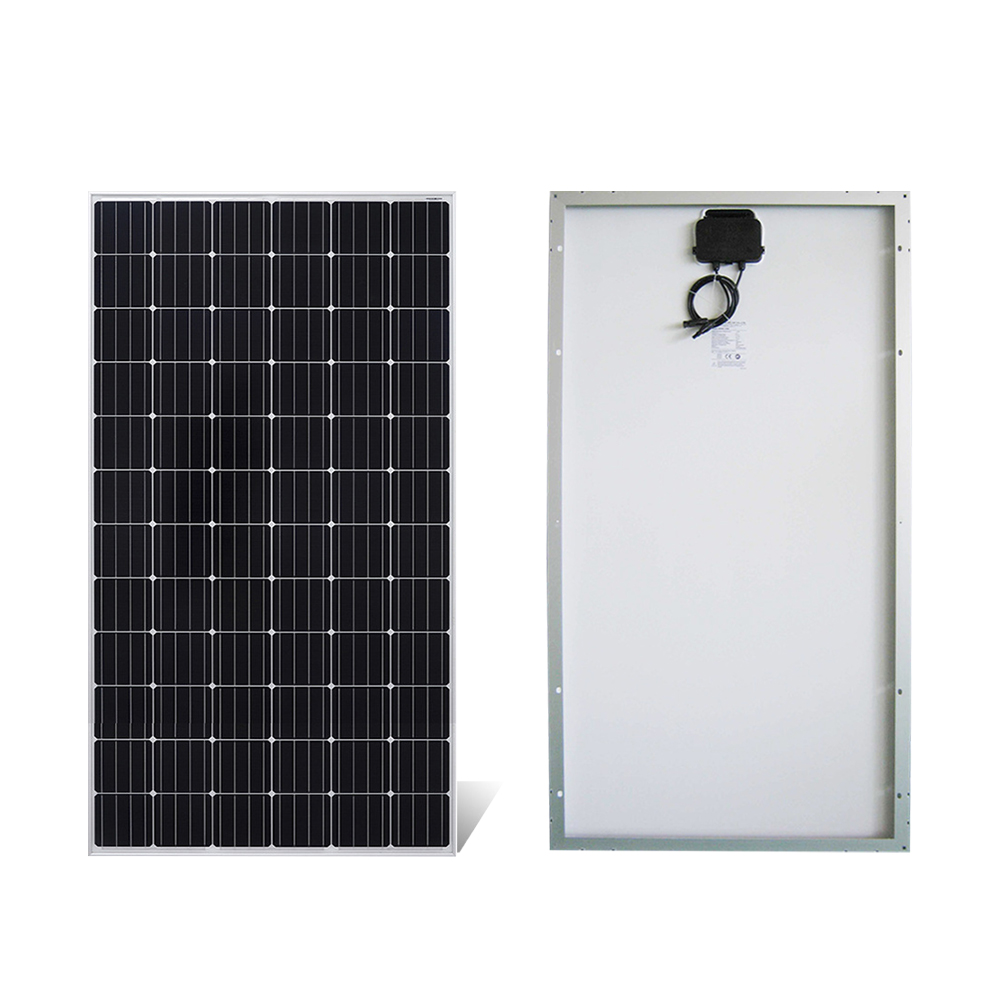

180w Mono   Solar Panel 2pcs


Power

180w

Efficiency of   solar cells

>18%

Maximum   power voltage

18.95v

Maximum   circult voltage

9.5A

Open circult   voltage

22.74V

Short   circult current

9.98A


PIC

Item

Gel Battery   2pcs


Rated Voltage

12v

Rated Capacity

150AH

Terminal

Cable2.5mm²×2   m

Maximum Charge Current

20A

Case

ABS

Warranty

3Years


PIC

Item

Lithium Battery


Rated Voltage

24v

Rated Capacity

100AH 2560WH

Terminal

Cable2.5mm²×2 m

Maximum Charge Current

20A

Case

Aluminium/Steel

Warranty

3Years




PIC

Item

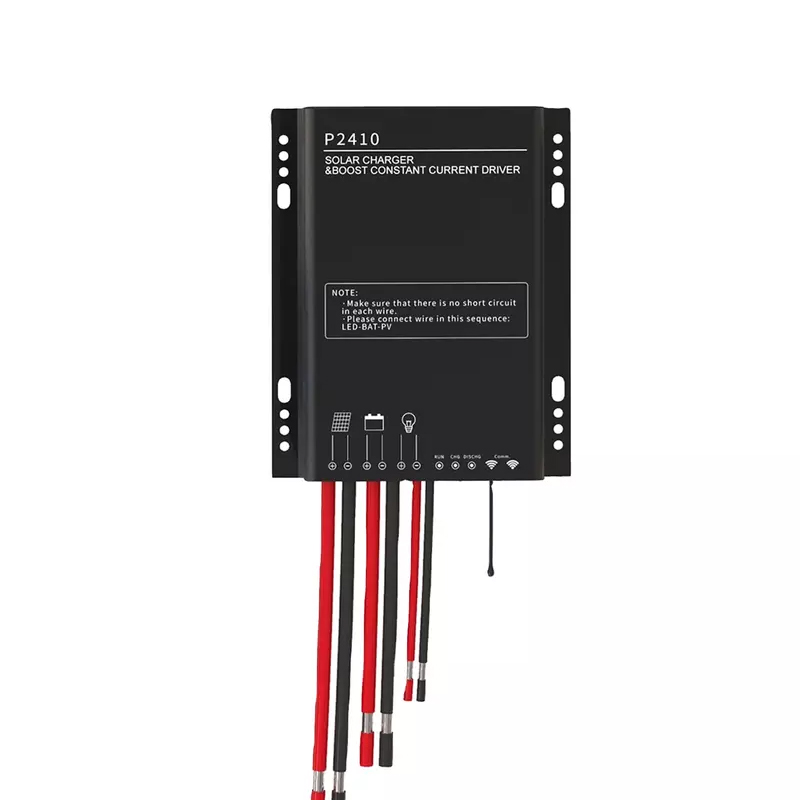

Solar Controller


Rated working voltage

12V/24V

Max. charging current

20A

levels of protection

IP67

Maximum Charge Current

20A

Constant current efficiency

96%

Output voltage range

Max panel/ 12V 480WP   solar panel

Warranty

3years

PIC

Item

12M   Street light pole


Material

Q235   Steel

Diameter

100/200mm

Thickness

4mm

Light   Arm

1.5M

Base   plate

400*400*20mm

Anchor   Bolt

4-M20-1000mm

Surface   Treatment

Hot   dip galvanized+ Powder Coating

Warranty

20years





Company profile

After 15years’ Exploration and development,Lecuso Solar’s foot prints are all over the world and we exported more than 120countries,including Africa,Asia,Europe,North America,Middle east and Oceania,etc.In this land of the world,there is not only our street lights but also our engineers who guide the installation on site.Our Mission is to illuminate the world,Illuminate the way people go!


Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.
