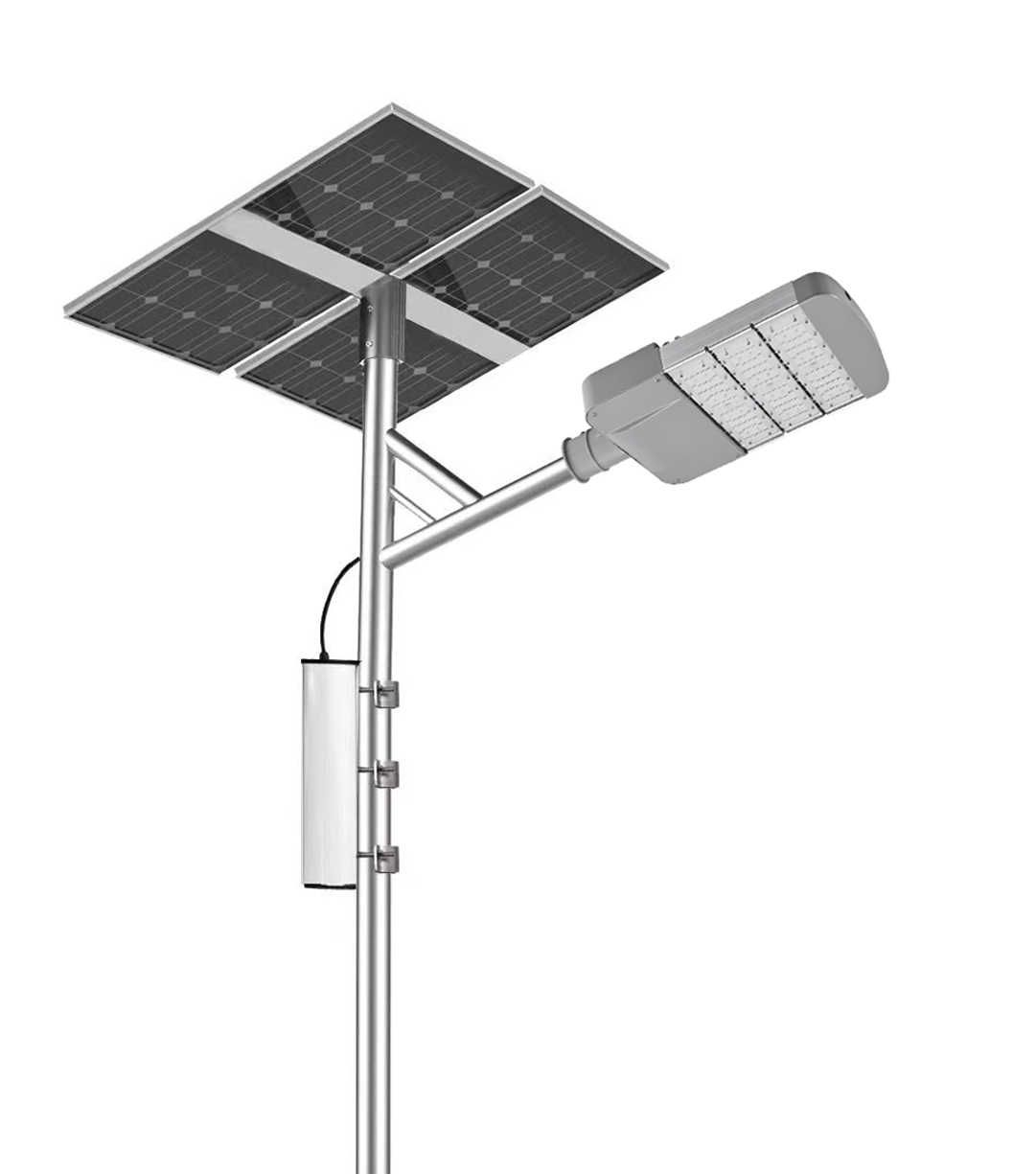

10M 100W Super Bright 170LM/W High watt Led Solar Street Light

SEND INQUITY

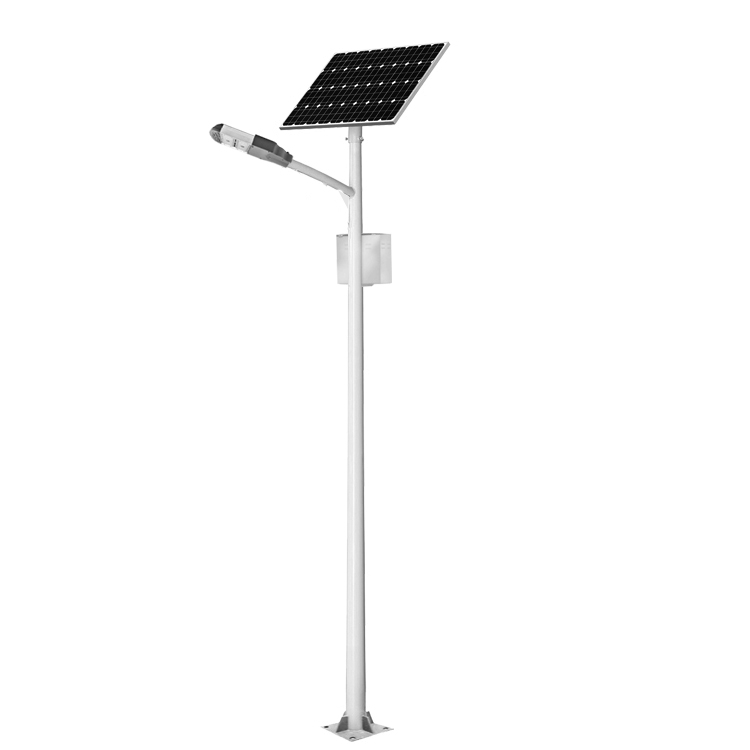

10M 100W Super Bright 170LM/W High watt Led Solar Street Light
10M 100W Super Bright 170LM/W High watt Led Solar Street Light
10M 100W Super Bright 170LM/W High watt Led Solar Street Light
10M 100W Super Bright 170LM/W High watt Led Solar Street Light

Quick Information
  • 100W LED Power,IP67 waterproof
  • 170lm/w,bridgelux chip 150pcs
  • Color temperature: 2700-6500K
  • LED life span>50000hours
  • Lamp body: Aluminium

Our Advantages

IP66 Waterproof Rating: The product has an IP66 waterproof rating, ensuring complete protection against the intrusion of foreign objects and making it capable of withstanding heavy rain and strong water spray. This robust waterproof design ensures reliable performance even in challenging weather conditions.

Solar Energy: The use of solar energy in this product promotes energy conservation and environmental protection. By harnessing sunlight, the product is able to operate without relying on traditional power sources, making it easy to use and reducing the carbon footprint.

Easy Energy Access and Environment Friendly: The product is powered by solar energy, which makes it easy to access renewable energy. By utilizing clean and renewable solar power, the product contributes to a more sustainable and environmentally friendly lighting solution.

Long Warranty and Lifespan: The solar panel in the product comes with a warranty of more than 25 years, ensuring its long-term performance and reliability. The LED light source has a lifespan of up to 50,000 hours, providing long-lasting illumination. Additionally, the battery has a usage span of more than 5-7 years, ensuring the longevity of the entire product.

High Lumen Solar Luminaire Module: The solar luminaire module in this product offers a higher luminosity compared to normal types, with a 20% increase in brightness. This high lumen output ensures improved visibility and enhanced lighting performance.

Simple Management and Maintenance: Solar street lights are known for their simple management and maintenance requirements. They have a long service life, reducing the need for frequent replacements and minimizing associated costs. Moreover, solar street lights offer not only functional lighting but also a decorative element, providing an elegant and high-end aesthetic. Their cost-saving benefits make them widely used in major cities, public places, and stadiums, helping to maximize annual night lighting cost savings.


Specification

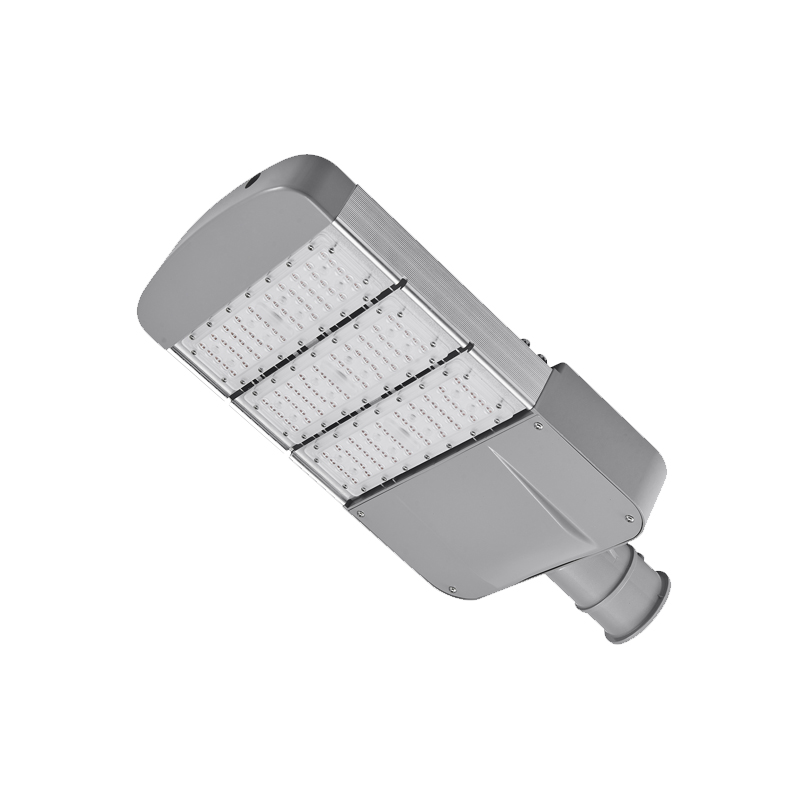

PIC

Item

100W


Power

100w

LED Chip

Cree/Bridgelux/Philips   Brand

Light   Efficiency

>170Lm/w

CCT

3000-6500K

Viewing   Angle

120°

IP

65

Working Environment:

30℃~+70℃

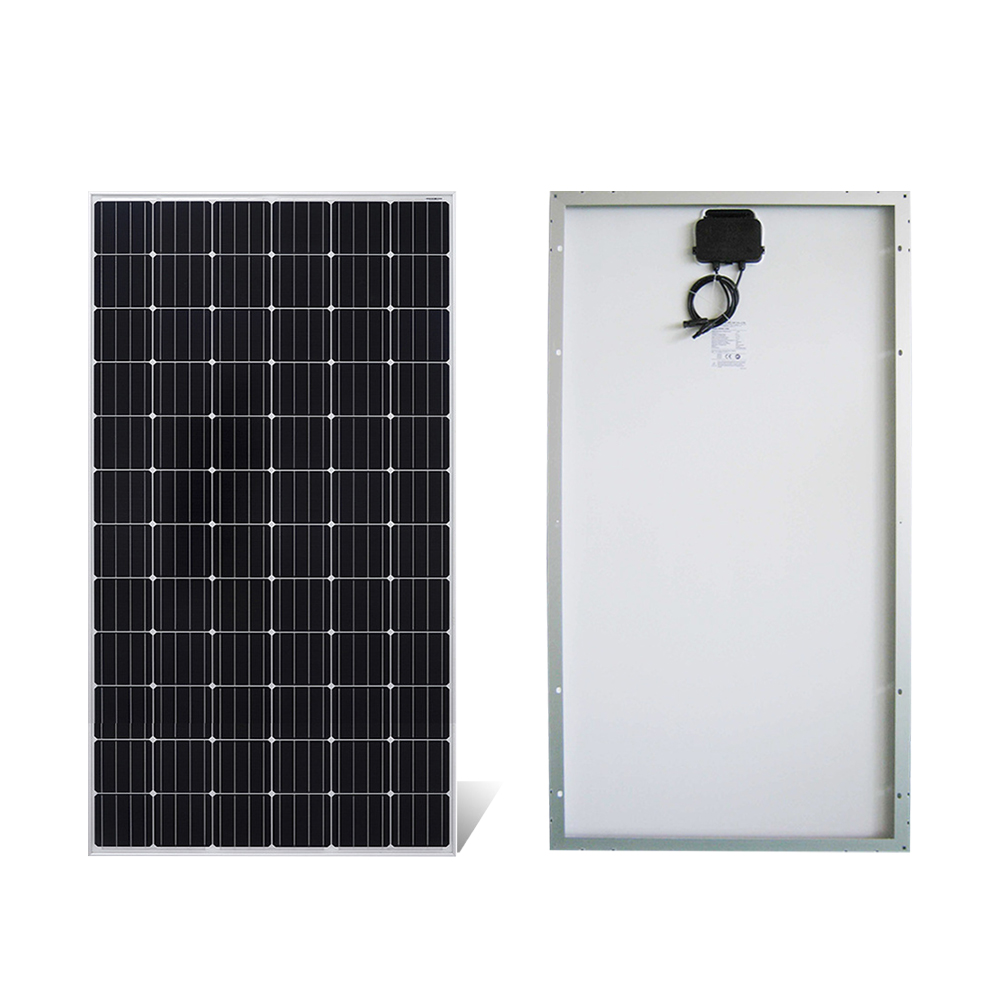

PIC

Item

150w Mono   Solar Panel 2pcs


Power

150w

Efficiency of solar   cells

>18%

Maximum   power voltage

18.5v

Maximum   circult voltage

8.11A

Open circult   voltage

22.2V

Short   circult current

8.52A

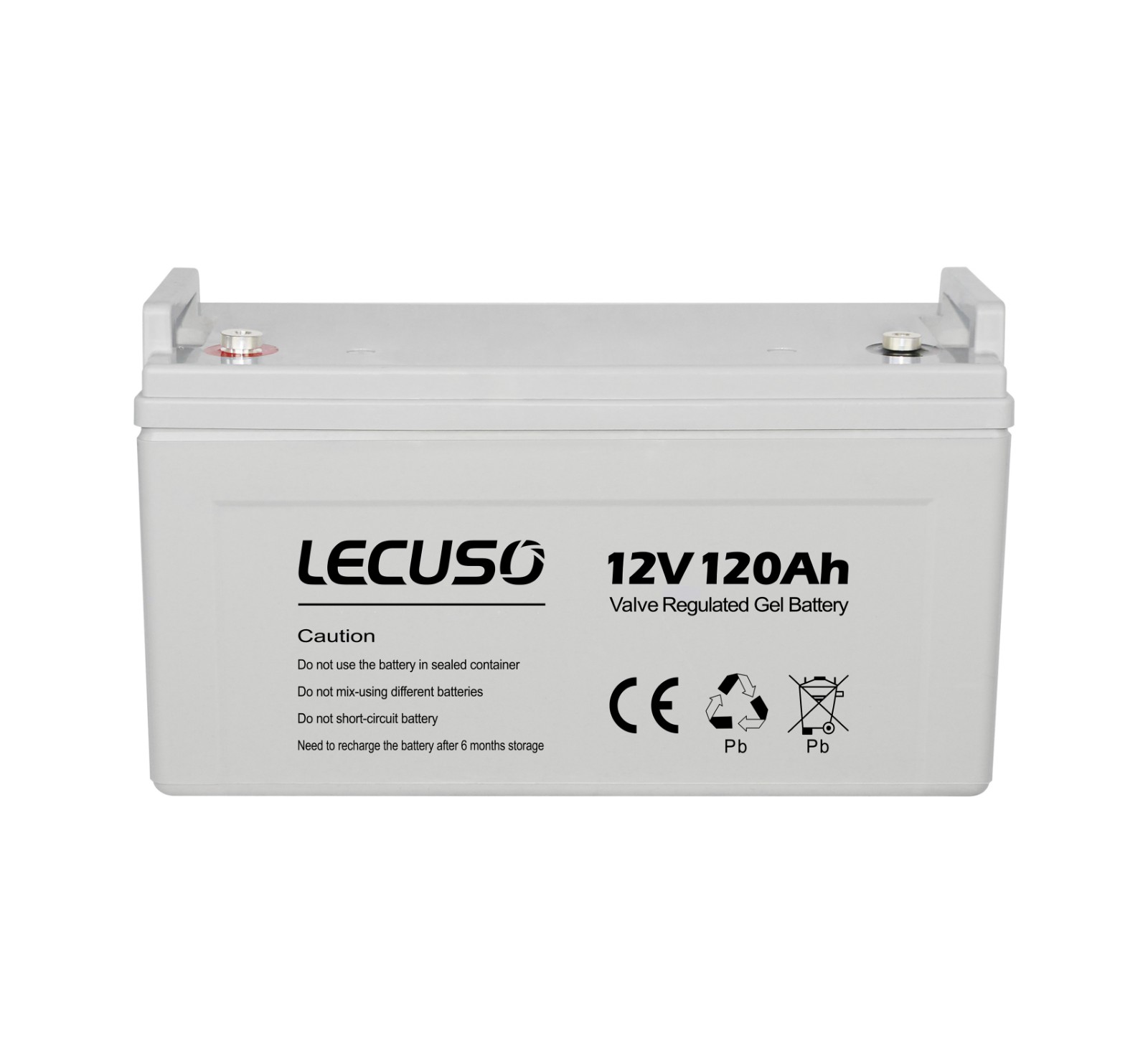

PIC

Item

Gel Battery   2pcs


Rated Voltage

12v

Rated Capacity

100AH

Terminal

Cable2.5mm²×2   m

Maximum Charge Current

20A

Case

ABS

Warranty

3Years

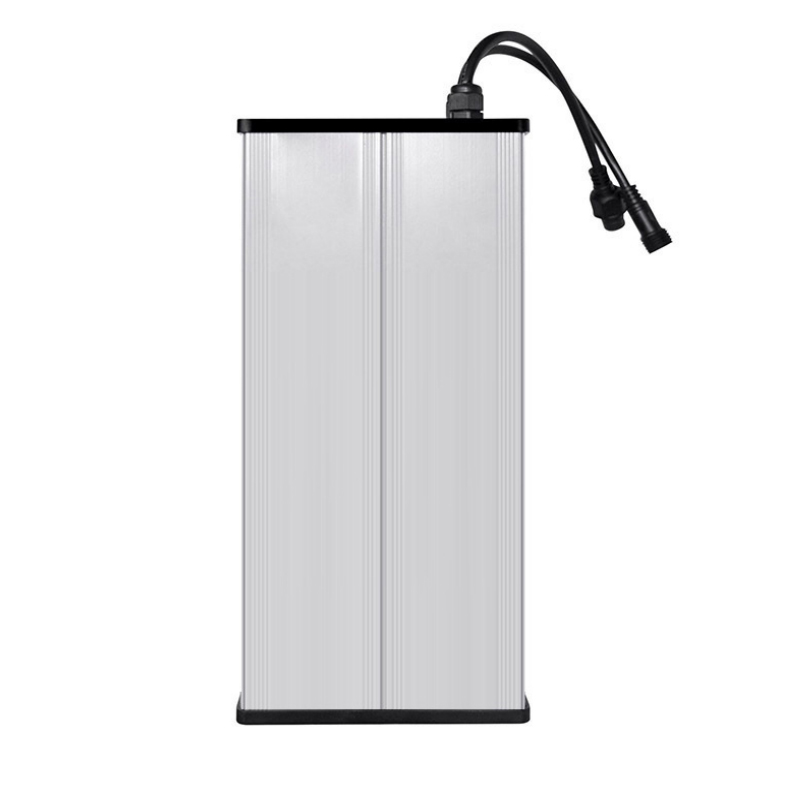

PIC

Item

Lithium Battery


Rated Voltage

24v

Rated Capacity

80AH 2048WH

Terminal

Cable2.5mm²×2 m

Maximum Charge Current

20A

Case

Aluminium/Steel

Warranty

3Years

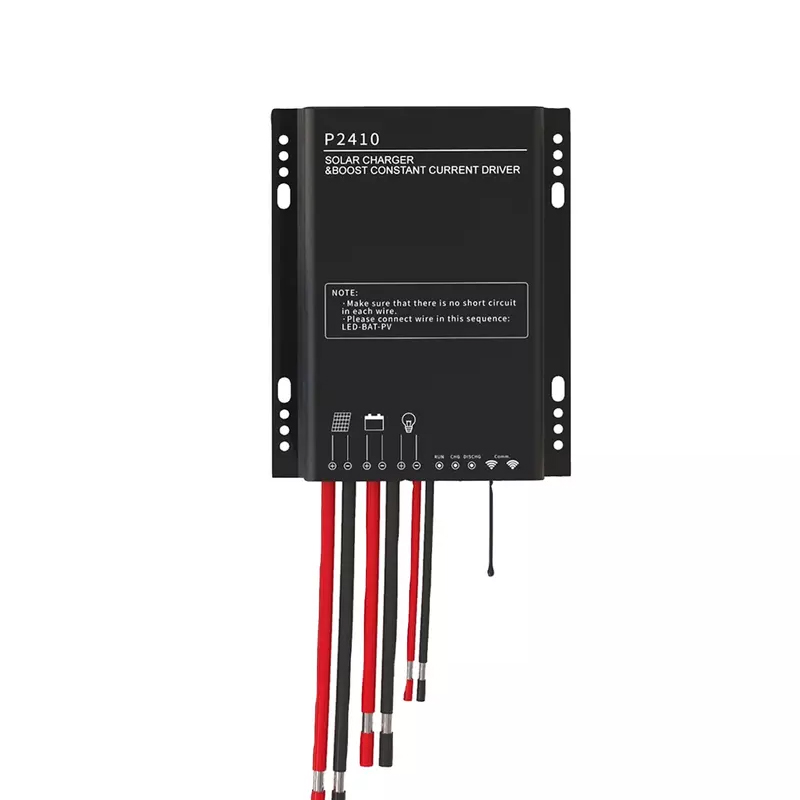

PIC

Item

Solar Controller


Rated working voltage

12V/24V

Max. charging current

15A

levels of protection

IP67

Maximum Charge Current

15A

Constant current efficiency

96%

Output voltage range

Max panel/ 12V 480WP   solar panel

Warranty

3years


PIC

Item

9M   Street light pole


Material

Q235   Steel

Diameter

80/200mm

Thickness

4mm

Light   Arm

1.5M

Base   plate

400*400*20mm

Anchor   Bolt

4-M20-1000mm

Surface   Treatment

Hot   dip galvanized+ Powder Coating

Warranty

20years







Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.
