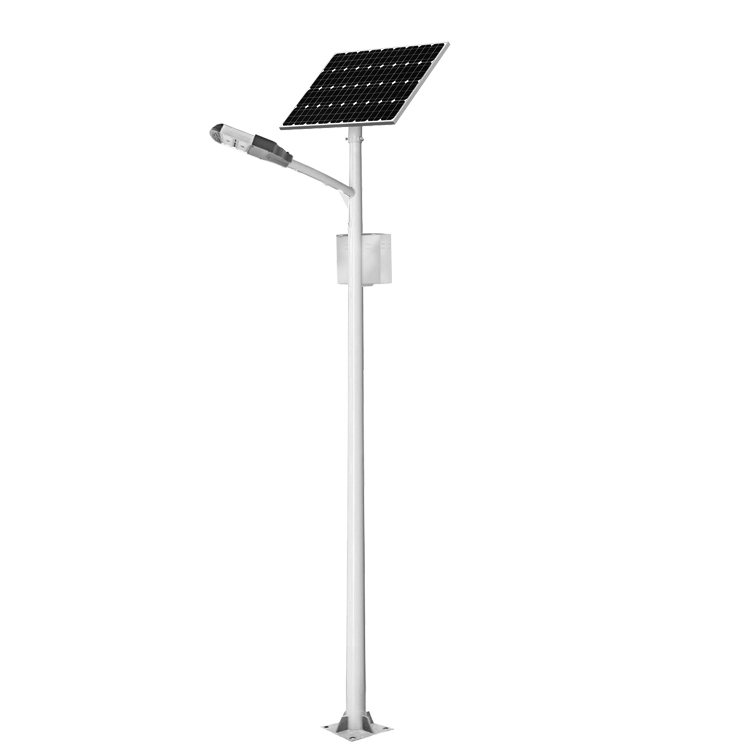

8M 60W Separate Solar Street Light with pole and gel battery

SEND INQUITY
8M 60W Separate Solar Street Light with pole and gel battery
8M 60W Separate Solar Street Light with pole and gel battery
8M 60W Separate Solar Street Light with pole and gel battery
8M 60W Separate Solar Street Light with pole and gel battery

Quick Information
  • Power: 60W
  • Material: Die-cast Aluminum
  • LED Chip: Luxeon,Cree,Bridgelux,3030
  • Light Efficiency: >170lm/W
  • CCT: 3000-6500k
  • Viewing Angle: 120°
  • IP: 66
  • Working Environment: 30℃~+70℃

Our Advantages

Our solar street lights offer several key features that make them a reliable and efficient choice for outdoor lighting:

High Brightness and Full Power Whole Night: Our solar street lights are designed to provide high brightness throughout the night. With advanced LED technology, they deliver excellent illumination while conserving energy.

Deep Cycle Gel Batteries: We utilize deep cycle maintenance-free gel batteries in our solar street lights. These batteries are suitable for both high-temperature environments of up to 65°C and low-temperature environments as low as -30°C. They have a low failure rate, ensuring consistent and reliable performance.

Wide Lighting Angle: Our solar street lights provide a wide lighting angle of 120°-140°, offering excellent coverage for various road types. You can choose from different options to meet the specific requirements of your project.

Extended Autonomy: Our solar street lights are equipped with high-capacity batteries, allowing them to support 3-5 nights of lighting after a full charge. In areas with prolonged cloudy or rainy weather, our lights can sustain operation for more than 10 days. For locations with low sunlight intensity, we recommend using polycrystalline silicon solar panels to maximize energy generation.

Secure and Flexible Installation: Our solar street lights feature gel batteries that can be installed on top of the light pole or hung from it. We use IP67 waterproof cases to protect the batteries, making them resistant to theft. In high-temperature environments, burying the batteries underground is recommended to enhance their lifespan and working cycles.

We are dedicated to providing reliable solar street lighting solutions that offer long-lasting performance, energy efficiency, and adaptability to various environmental conditions. Our products undergo rigorous testing to ensure they meet the highest quality standards.


Specification

PIC

Item

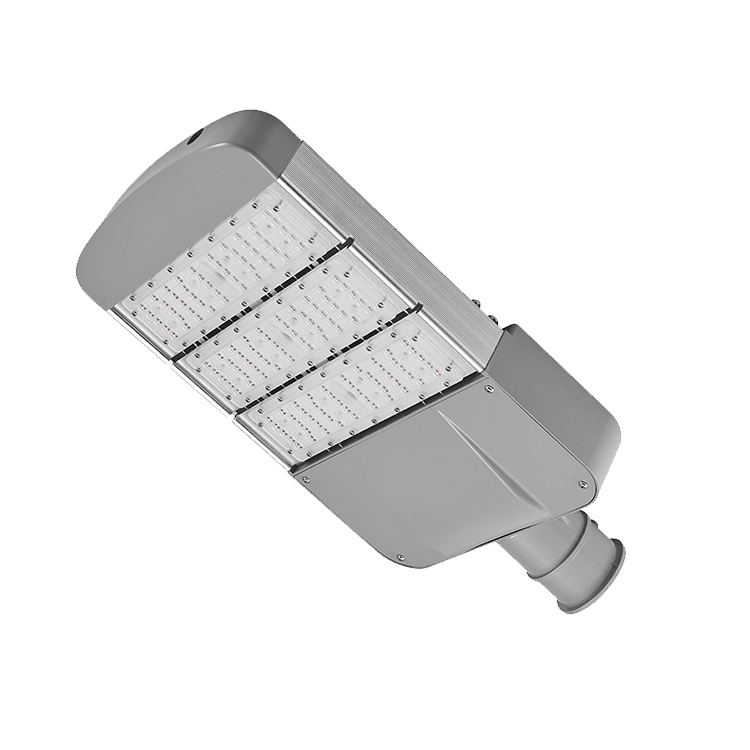

60W led   street light


Power

60w

LED Chip

Cree/Bridgelux/Philips   Brand

Light   Efficiency

>120lm/w-140Lm/w

CCT

3000-6500K

Viewing   Angle

120°

IP

65

Working Environment:

30℃~+70℃



PIC

Item

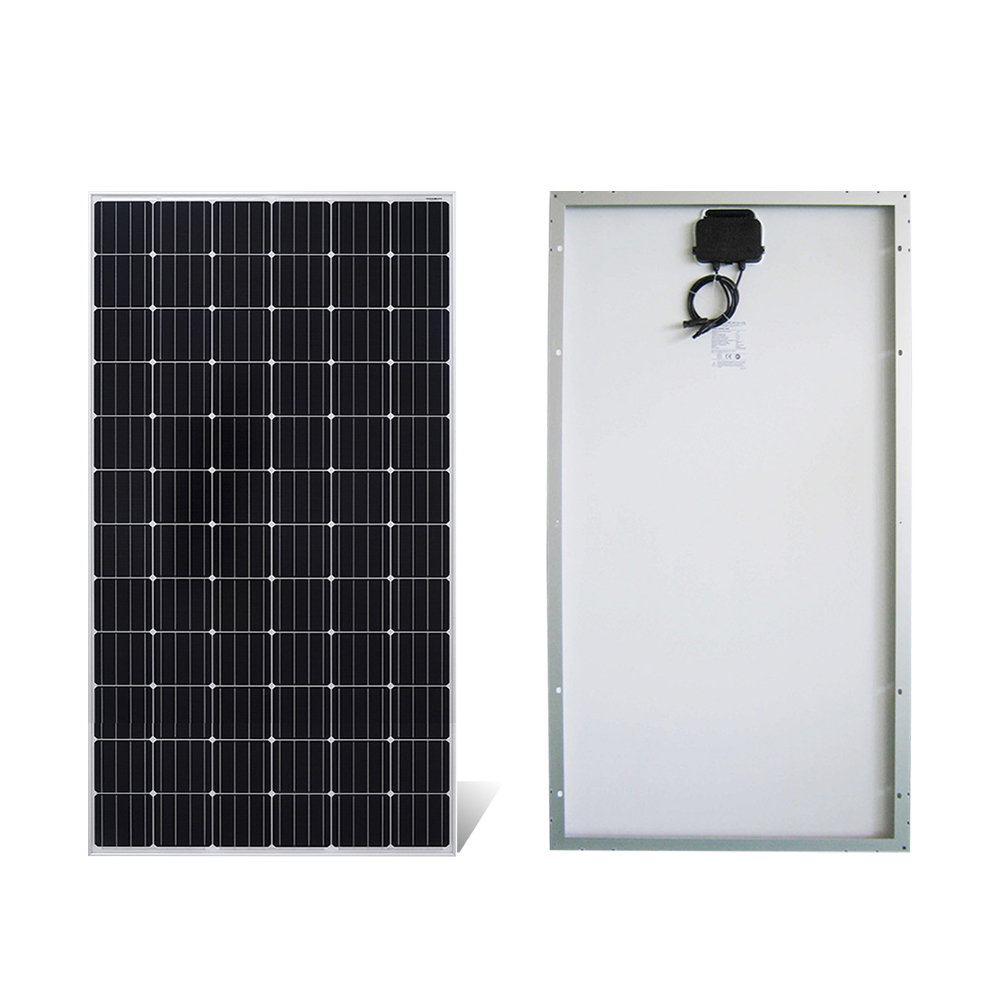

Mono Solar   Panel


Power

150w

Efficiency of   solar cells

>18%

Maximum   power voltage

18.5v

Maximum   circult voltage

8.11A

Open circult   voltage

22.2

Short   circult current

8.52

Size

1480*680*30mm















PIC

Item

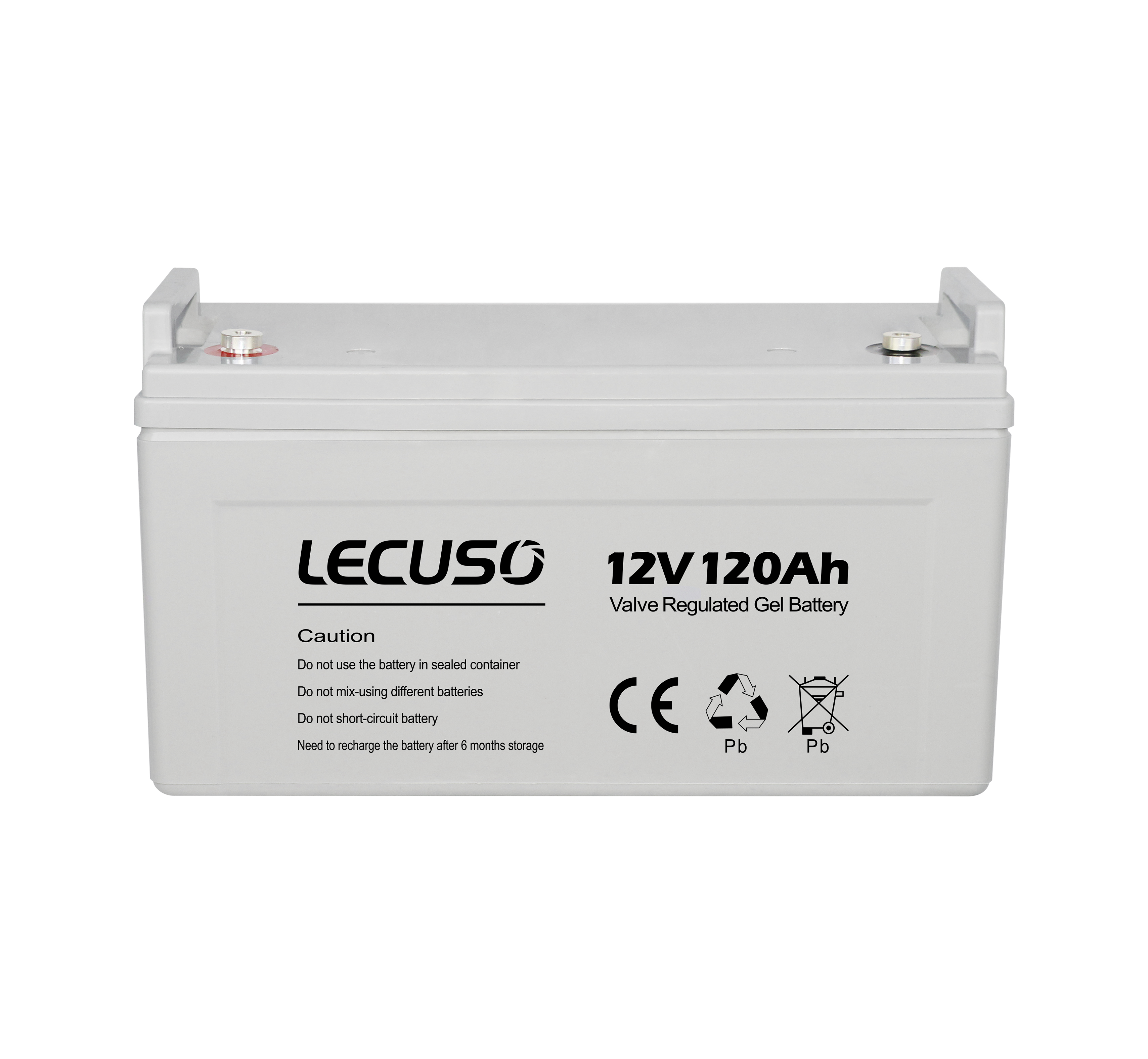

Gel Battery


Rated Voltage

12v

Rated Capacity

120AH

Terminal

Cable2.5mm²×2 m

Maximum Charge Current

10A

Case

ABS

Warranty

3Years

Size

405*173*231mm















PIC

Item

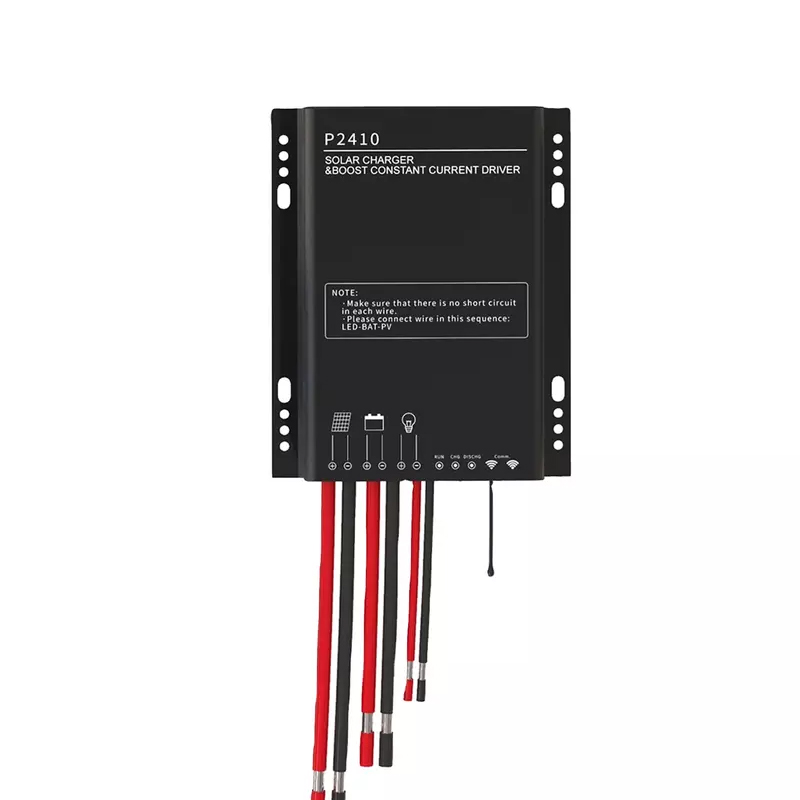

Solar Controller


Rated working voltage

15A

Max. charging current

15A

levels of protection

IP67

Maximum Charge Current

10A

Constant current efficiency

96%

Output voltage range

Max panel/ 12V 150WP   solar panel

Warranty

3years





PIC

Item

8M   Street light pole


Material

Q235   Steel

Diameter

80/170mm

Thickness

3.5mm

Light   Arm

1.5M

Base   plate

320*320*16mm

Anchor   Bolt

4-M18-800mm

Surface   Treatment

Hot   dip galvanized+ Powder Coating

Warranty

20years


Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.
