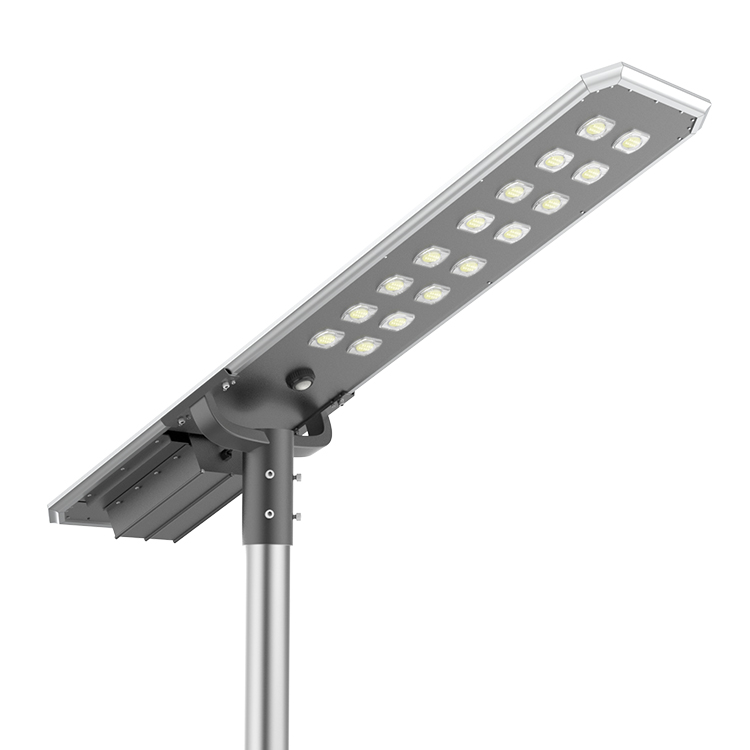

DY series High brightness 30w 60w 80w 100w 120w Integrated All in one led solar street light

SEND INQUITY
DY series High brightness 30w 60w 80w 100w 120w Integrated All in one led solar street light
DY series High brightness 30w 60w 80w 100w 120w Integrated All in one led solar street light
DY series High brightness 30w 60w 80w 100w 120w Integrated All in one led solar street light
DY series High brightness 30w 60w 80w 100w 120w Integrated All in one led solar street light
DY series High brightness 30w 60w 80w 100w 120w Integrated All in one led solar street light

Quick Information

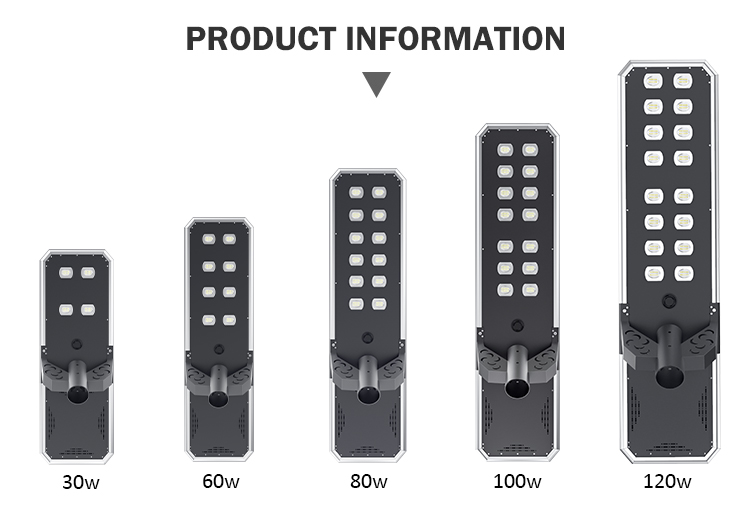

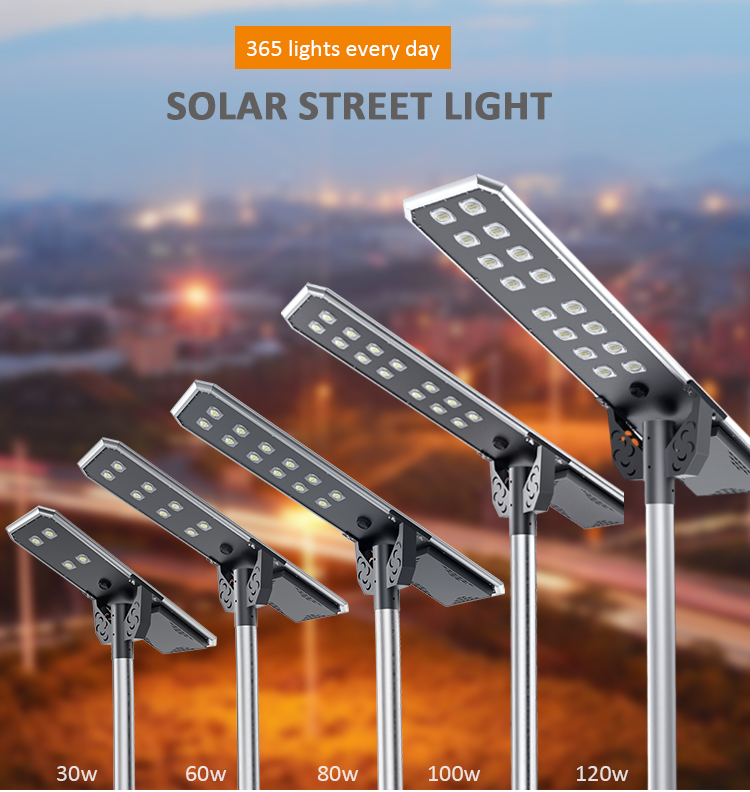

  • Power: 30w/60w/80w/100w/120w

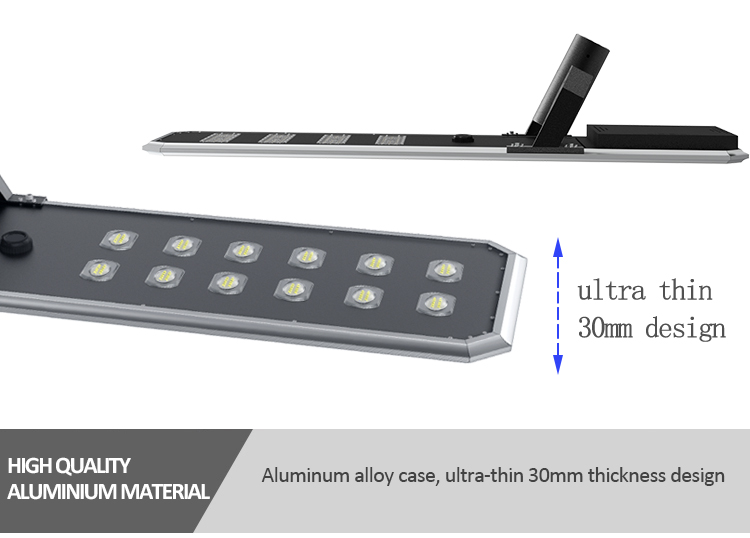

  • Material: Die-cast Aluminum
  • LED Chip: Luxeon,Cree,Bridgelux,3030
  • Light Efficiency: >170lm/W
  • CCT: 3000-6500k
  • Viewing Angle: 120°
  • IP: 66
  • Working Environment: 30℃~+70℃

Our Advantages

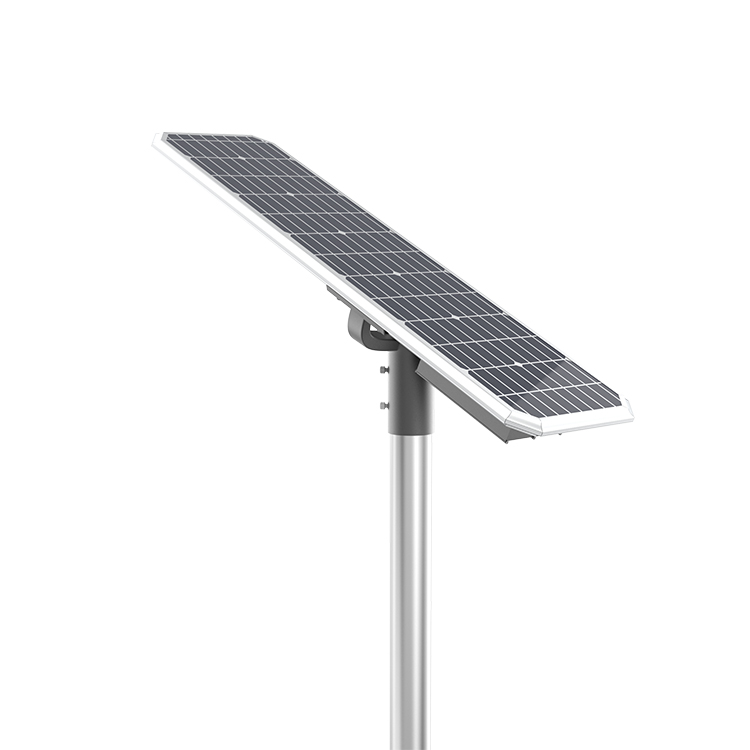

5. 1. Our solar street lights adopt a compact design, integrating solar panels, controllers, LED beads and batteries in one housing. This streamlined design not only saves space, but also makes installation quick and hassle-free.

2. We use world-renowned brand LED chips, such as 3030/5050, which are famous for their excellent quality and lifespan. The service life of the LED light source is extended, and the energy can be saved in time-sharing at night, which effectively saves energy and improves the overall efficiency.

3. The luminous efficiency of solar street lamps is more than 170LM, which is more than 75% energy-saving than traditional high-pressure sodium lamps. This energy-saving feature helps reduce carbon emissions and promotes environmental sustainability.

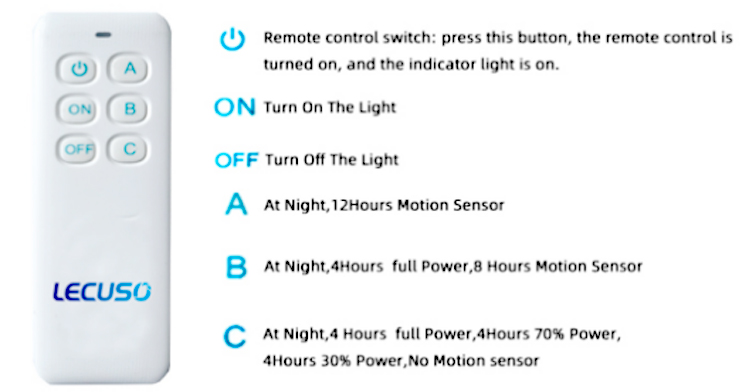

4. Equipped with motion sensors and smart controllers, our solar lights can automatically adjust the working mode according to the weather conditions, which can ensure stable operation even in long-term cloudy days. The light can work continuously for 3-5 nights after being fully charged, and provides three lighting modes, which can be easily switched by the remote control.

5. Our all-in-one solar street light is very convenient to install without wiring. Just turn on the switch or use the remote control, the light will start working automatically. In addition, the mainstream integrated structure design saves transportation costs and improves the convenience of installation.

6. Compared with traditional street lights and AC LED street lights, the maintenance cost of our LED solar street lights is significantly lower. This cost-effectiveness makes it a long-term, reliable investment for a variety of applications.

7. We are proud to have installed about 50,000 sets of DY COB solar street lights in Africa, including Mozambique, Tanzania, Kenya, Nigeria, Algeria and other countries, as well as the Philippines, Thailand, Vietnam, Dubai, Saudi Arabia, Jordan, and more. The widespread adoption of our solar street lights is a testament to their efficiency, durability, and proven performance in different environments.



Choose our integrated solar street lights for excellent brightness, energy efficiency, easy installation and low maintenance. Our goal is to provide reliable, environmentally friendly lighting solutions for a brighter and more sustainable future.

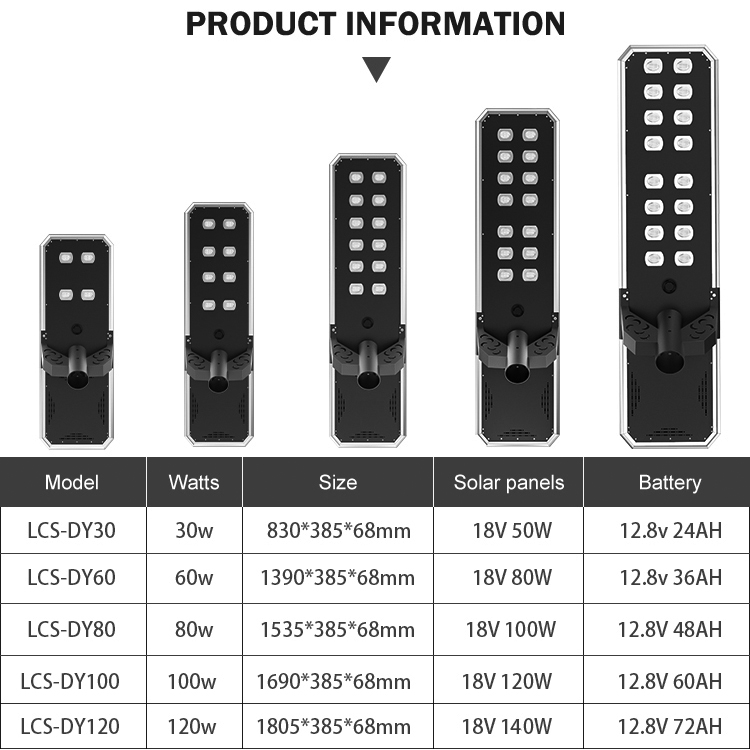

Specification

Specifications Of LECUSO DY Series LED Solar Street Light

Power

30w

60w

80w

100w

120w

3030 LED chip

40PCS

80PCS

120PCS

140PCS

160PCS

Luminous Flux

5100LM

10200LM

13600LM

17000LM

20400LM

LiFePO4  Lithium Battery

12.8v 24AH

12.8v 36AH

12.8V 48AH

12.8V 60AH

12.8V 72AH

Mono Solar Panel

18V 50W

18V 80W

18V 100W

18V 120W

18V 140W

Install height

4-5M

6-7M

7-8M

8-10M

9-12M

Solar charging time

5-6 hours

Material

Aluminum Alloy+ PMMA

Lighting Mode

motion sensor/timer/remote control/ODM

CRI

>80

Rated Life

80000h

Working Temperature

-25~+60°C

Install

76mm-114mm

Application

Highway, street, road, garden, outdoor, etc.

Warranty

3/5 Years

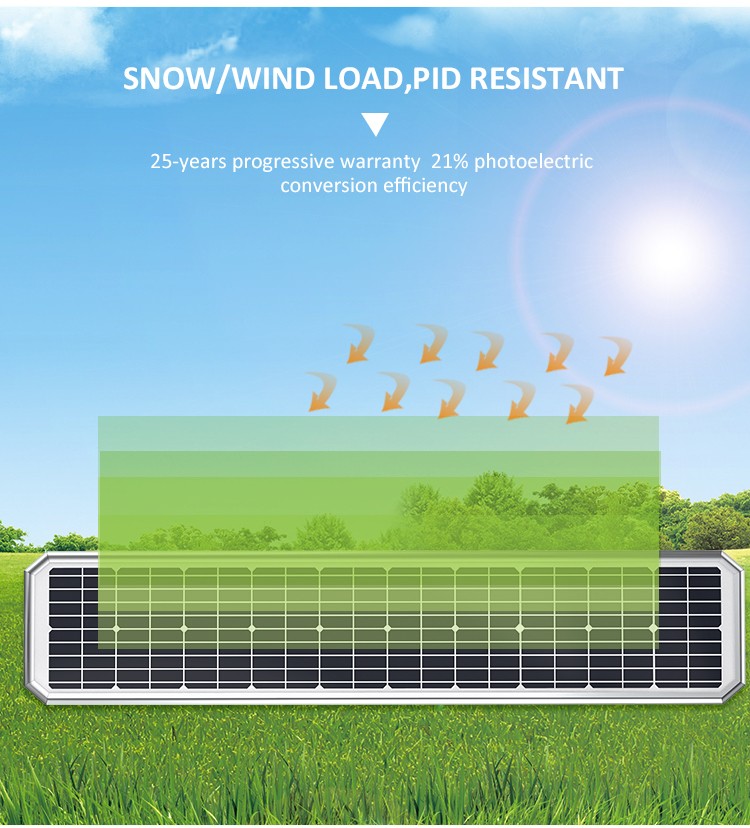

SNOW/WIND LOAD,PID RESISTANT

25-years progressive warranty 21% photoelectric conversion efficiency

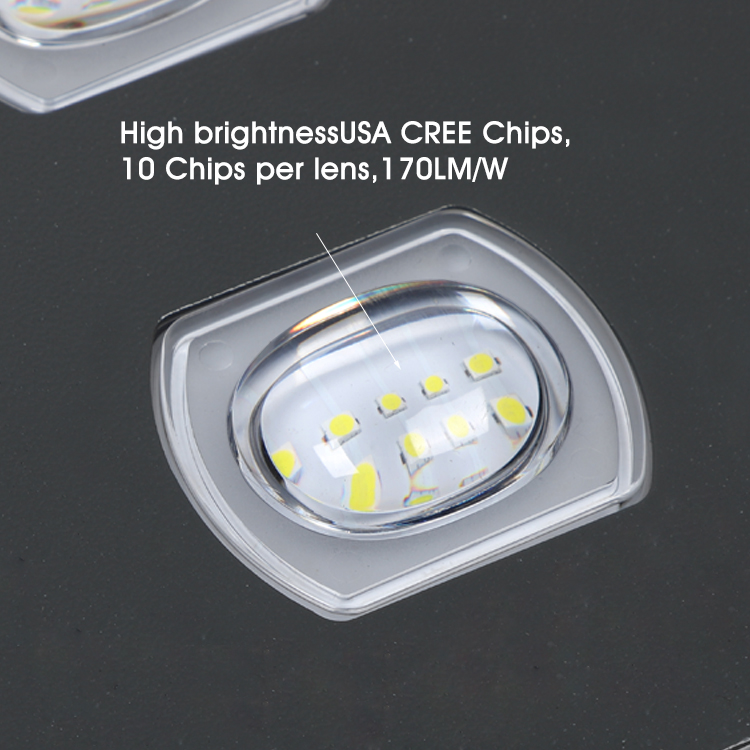

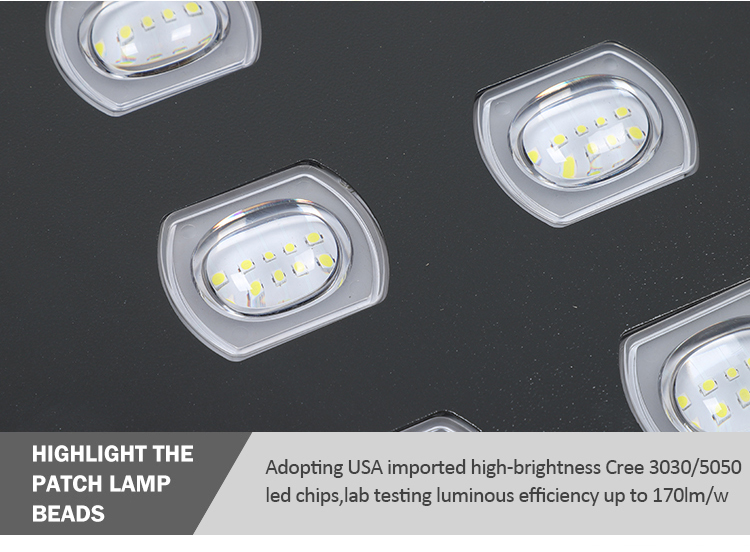

HIGH LIGHT THE PATCH LAMP CHIPS

Adopting USA imported high-brightness Cree 3030/5050led chips,lab testing luminous efficiency up to 170lm/w








HIGH LIGHT THE PATCH LAMP CHIPS

Adopting USA imported high-brightness Cree 3030/5050led chips,lab testing luminous efficiency up to 170lm/w

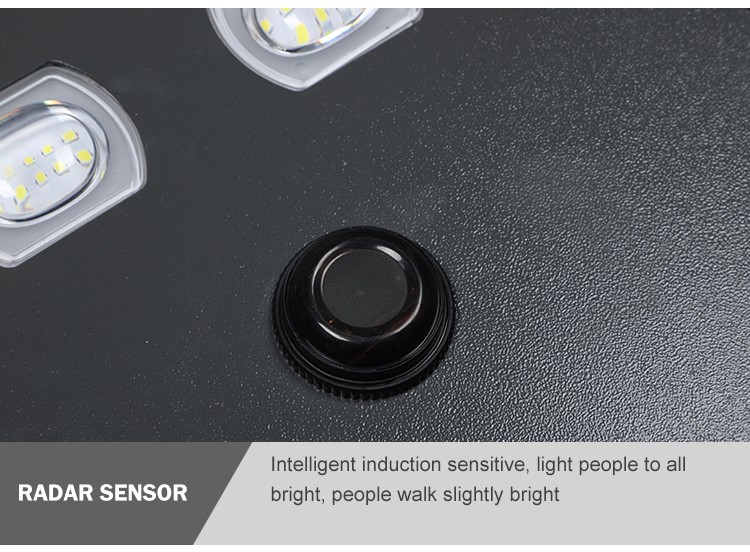

RADAR SENSOR

Intelligent induction sensitive, People pass Brightness, people Leave 30% Brightness

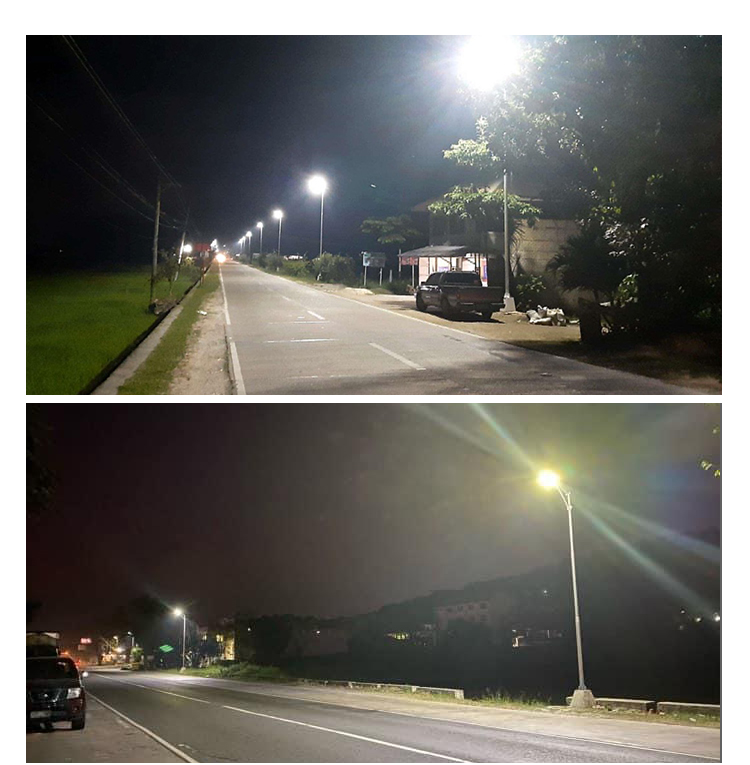

PROJECT CASE

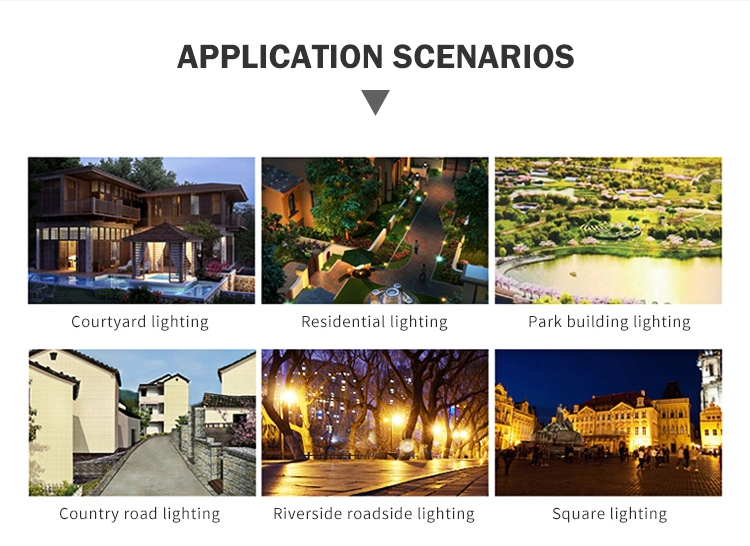

Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.
