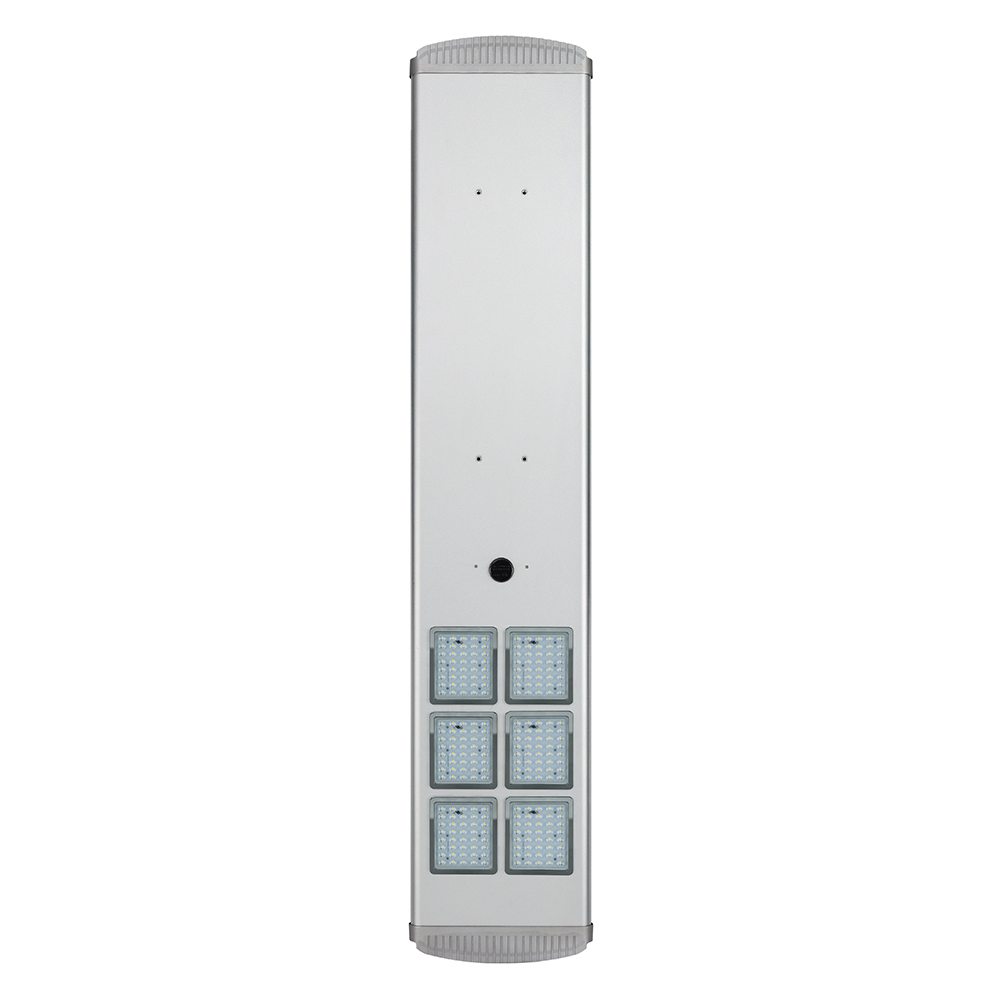

PD Series 30W-120W Integrated solar road street light

SEND INQUITY
PD Series 30W-120W Integrated  solar road street light
PD Series 30W-120W Integrated  solar road street light
PD Series 30W-120W Integrated  solar road street light
PD Series 30W-120W Integrated  solar road street light
PD Series 30W-120W Integrated  solar road street light
PD Series 30W-120W Integrated  solar road street light

Quick Information
  • Power: 30w/60w/80w/100w/120w
  • Material: Die-cast Aluminum+PWMA
  • LED Chip: Philips,Lumileds,3030
  • Light Efficiency: >170lm/W
  • CCT: 3000-6500k
  • Viewing Angle: 120°
  • IP: 66
  • Working Environment: 30℃~+70℃

Our Advantages

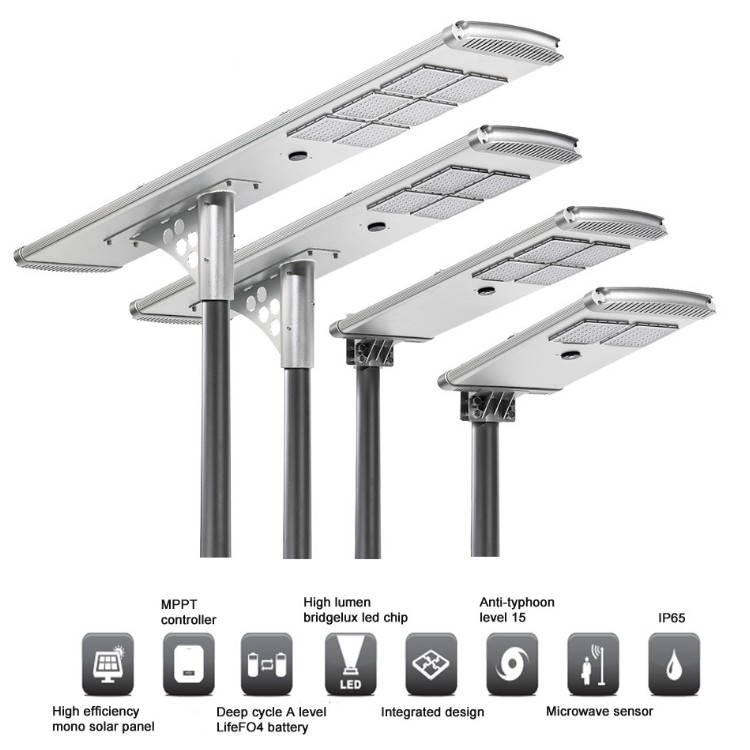

1. The product adopts an integrated design, with built-in light source, large-capacity lithium battery, solar cell module, and automatic controller with motion sensor. This ensures seamless and efficient operation.

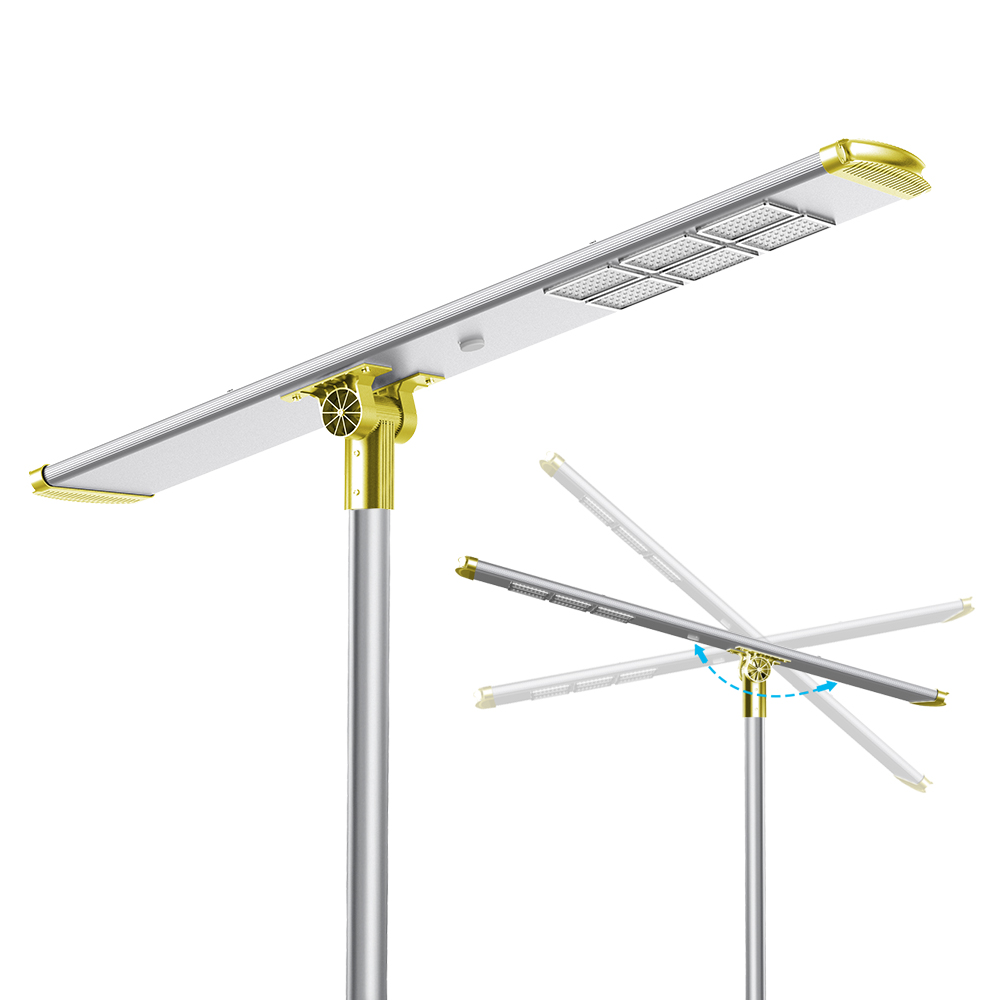

2. We use high-performance LED chips, such as 3030/5050 high-efficiency American LED chips, which can provide high brightness of 170LM/W. The lamp is made of durable aluminum alloy and PMMA materials. It also has a 140-degree adjustable stand, making it suitable for various road conditions. The maximum wattage can reach 120 watts, which is very suitable for engineering projects. It also includes a night sensor, microwave motion sensor, and remote control for added convenience.

3. Our products use solar power generation systems to utilize inexhaustible and inexhaustible pure green energy. This makes it the best choice for the environment, reducing dependence on traditional energy sources.

4. The high-capacity lithium-ion battery used in our products has excellent energy storage performance, long life, lightweight structure and environmentally friendly production process, and will not release harmful substances.

5. Our products adopt LED light sources to provide concentrated and efficient lighting solutions. The unique secondary optical design ensures wider coverage and further improves light efficiency. LED light sources are known for their long-lasting performance, high luminous efficiency and uniform light color, making them the best choice for sustainable and environmentally friendly lighting.

6. The shell of the product is made of aluminum material, which has the characteristics of lightness, corrosion resistance and wear resistance. This ensures durability and enables the product to withstand a variety of environmental conditions, including moisture and exposure to hydro-acids.

7. Our products adopt MPPT control system with industrial grade components. This ensures reliable performance even in harsh environments, ensuring the lights stay bright all night long.


Specification

specifications

Power

30w

60w

80w

100w

120w

3030 LED chip

100PCS

200PCS

200PCS

300PCS

300PCS

Luminous Flux

5100LM

10200LM

13600LM

17000LM

20400LM

LiFePO4 Battery

12.8v 24AH

12.8v 42AH

12.8V 48AH

12.8V 54AH

12.8V 64AH

Mono Solar Panel

18V 50W

18V 80W

18V 110W

18V 130W

18V 150W

Install height

6-7M

7-9M

8-10M

9-11M

10-12M

Solar charging time

5-6 hours

Material

Aluminum Alloy+ PMMA

Work temperature

 -25℃ to 65℃

Warranty

5 Years

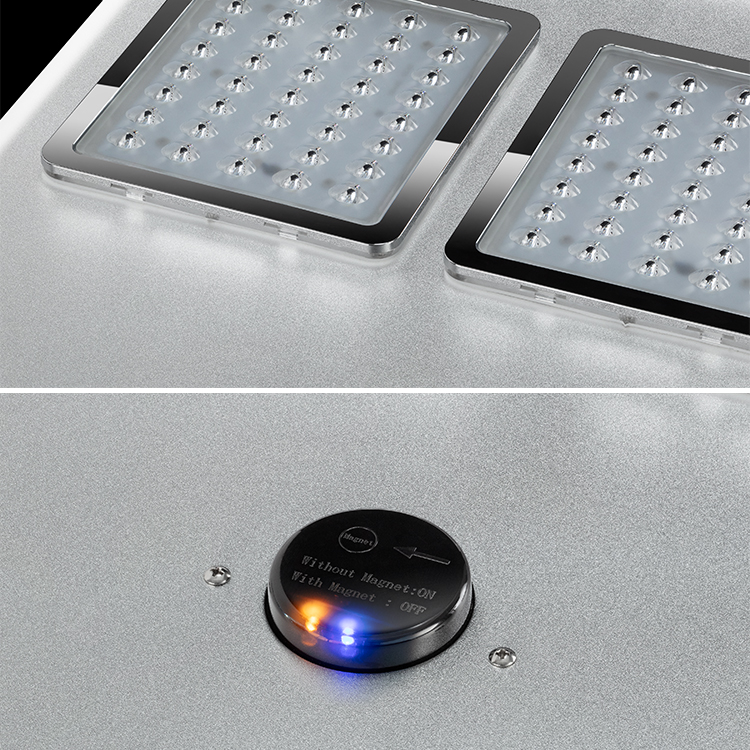

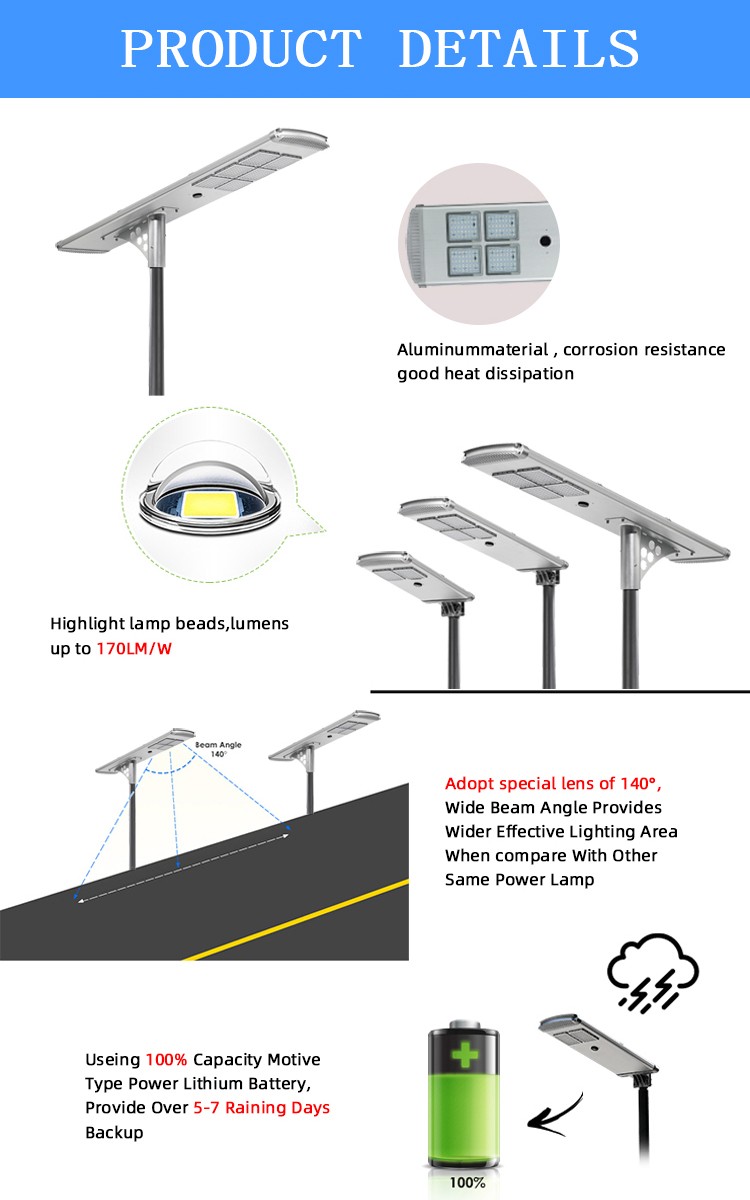

1.Aluminum material, corrosion resistance good heat dissipation

2.Highlight lamp beads,lumensup to 170LM/W

3.Adopt special lens of 140°, Wide Beam Angle Provides Wider Effective Lighting Area When compare With OtherSame Power Lamp

4.Useing Capacity MotiveType Power Lithium Battery,Provide Over 5-7 Raining DaysBac

No matter day or night,light "OFF"

No matter day or night,light "on" for 1 minute.

At night,12hrs full power.

 At night,4hrs full power+8hrs 25%

At night,4hrs full power+8hrs motion sensor control.

At night,12hrs motion sensor control.

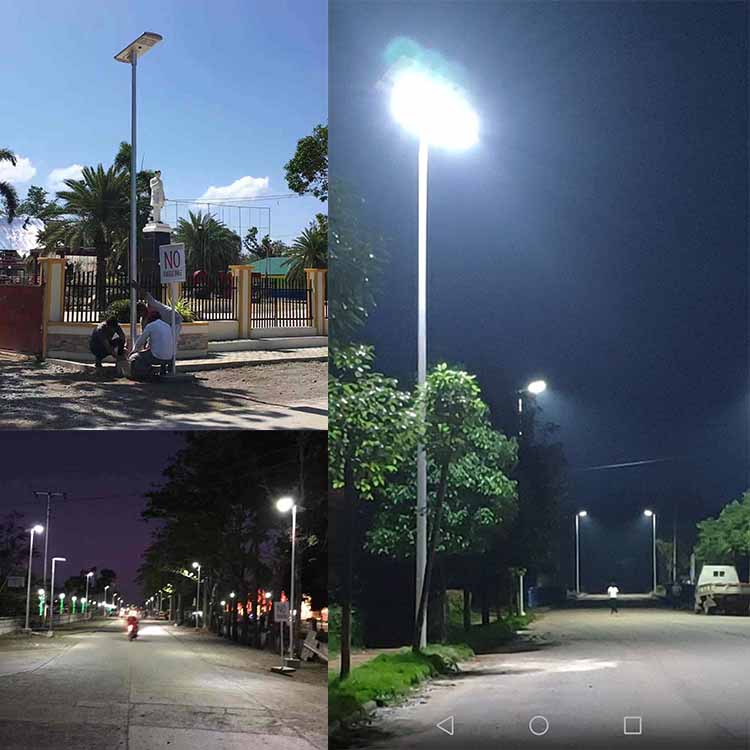

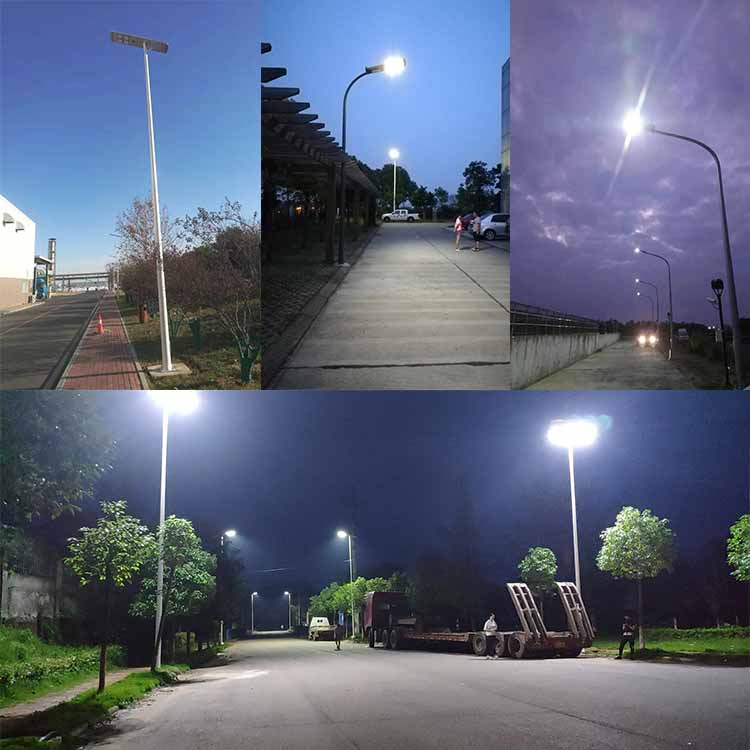

PROJECT CASE







Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.
