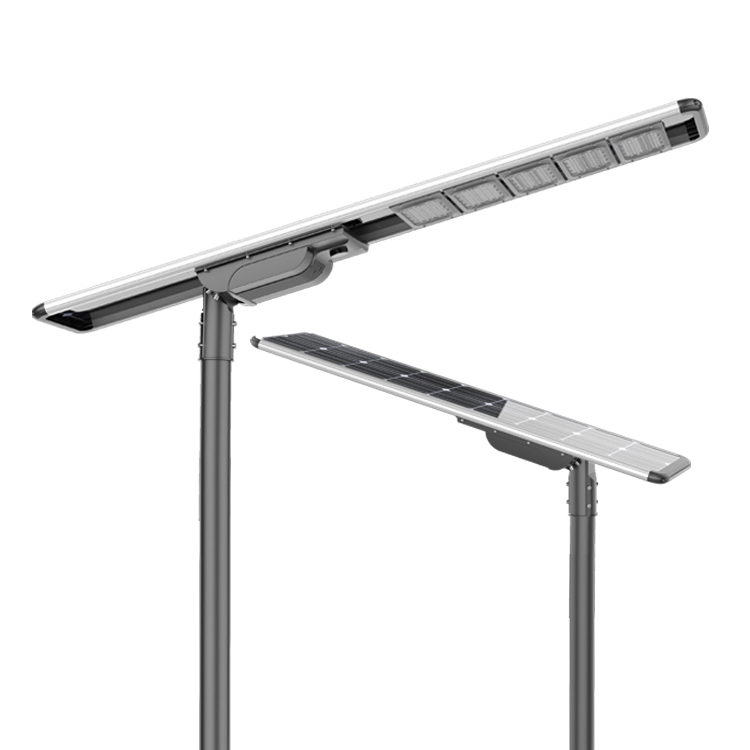

FX series 40w 60w 80w 100w 120w ip66 solar outdoor light efficiency led solar street light

SEND INQUITY
FX series  40w 60w 80w 100w 120w ip66 solar outdoor light efficiency led solar street light
FX series  40w 60w 80w 100w 120w ip66 solar outdoor light efficiency led solar street light
FX series  40w 60w 80w 100w 120w ip66 solar outdoor light efficiency led solar street light
FX series  40w 60w 80w 100w 120w ip66 solar outdoor light efficiency led solar street light
FX series  40w 60w 80w 100w 120w ip66 solar outdoor light efficiency led solar street light
FX series  40w 60w 80w 100w 120w ip66 solar outdoor light efficiency led solar street light

Quick Information
  • Power:40w/60w/80w/100w/120w
  • Material: Die cast Aluminum+UL PWMA Led lens
  • LED Chip: 3030 Bridgelux High Efficiency LED Chip
  • Lamp Efficiency: >170Lm/W-180LM/W
  • Viewing Angle: 140°
  • Install height: 3-15m

Our Advantages

1. The LED module design with enhanced power and increased capacity is equipped with high-brightness Bridgelux LED chips, and the brightness is increased by 40%. The power output of a single chip is as high as 200LM/W, and has successfully passed the IES test.

2. Convenient remote control function, providing three lighting modes for you to choose. You can easily switch between these modes using the remote.

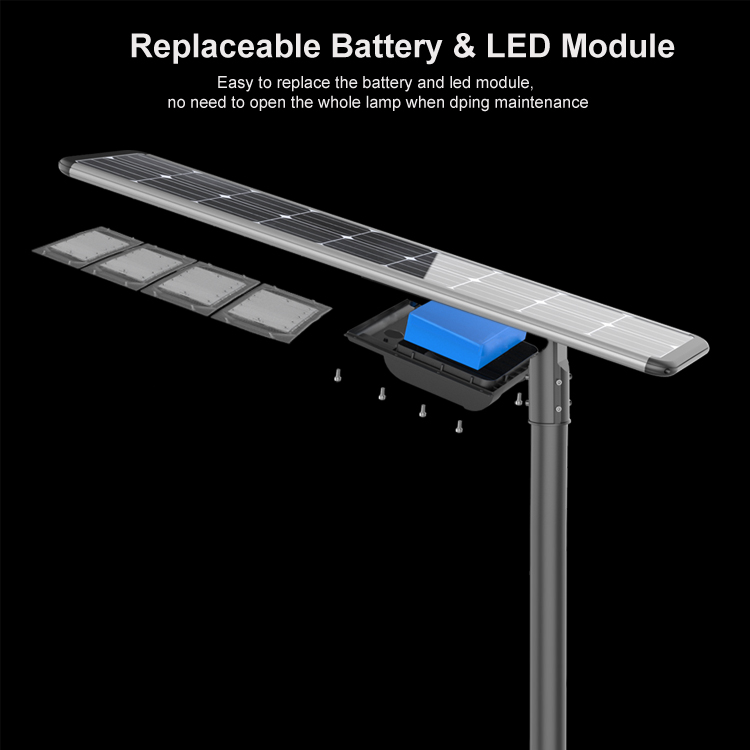

3. Our products are made of durable cast aluminum bracket with high mechanical strength to ensure excellent wind resistance up to grade 16. 4. Using ultra-thin integrated aluminum profile design, compared with standard integrated street lights, the weight is reduced and the light efficiency is increased by 30%. FX series solar street lights have been carefully adjusted to optimize the thermal insulation performance between LED modules, batteries and solar panels. This eliminates the risk of short circuits caused by excessive internal temperatures and extends the life of the outdoor solar lights up to 10 years. It also has an external battery compartment and is waterproof up to IP66.

5. With 15 years of experience, Lecuso has been committed to the development and manufacture of LED street lights and solar products. We specialize in providing OEM and ODM services. We warmly welcome you to order samples for testing.

Product Parameters



Specification

Specifications Of LECUSO FX Series LED Solar Street   Light

Power

40w

50w

60w

80w

100w

120W

3030 LED chip

96PCS

144PCS

144PCS

198PCS

240PCS

248PCS

Luminous Flux

6600lm

8200lm

10000lm

13400lm

17000lm

20400lm

LiFePO4  Lithium Battery

12.8V 28AH

12.8V 36AH

12.8V 42AH

12.8V 57AH

12.8V 63AH

12.8V 72AH

Mono Solar Panel

18V 65W

18V 70W

18V 80W

18V 100W

18V 130W

18V 140W

Install height

4~6m

5~7m

5~8m

6~9m

7~10m

9~12m

Solar charging time

5-6 hours

Material

Aluminum Alloy+ PMMA led lens

Lighting Mode

motion sensor/timer/remote control/ODM

CCT

3000K-6500K

Rated Life

100000h

Working Temperature

-25~+60°C

Install

60mm-76mm

Application

Highway, street, road,   garden, outdoor, etc.

Warranty

5 Years

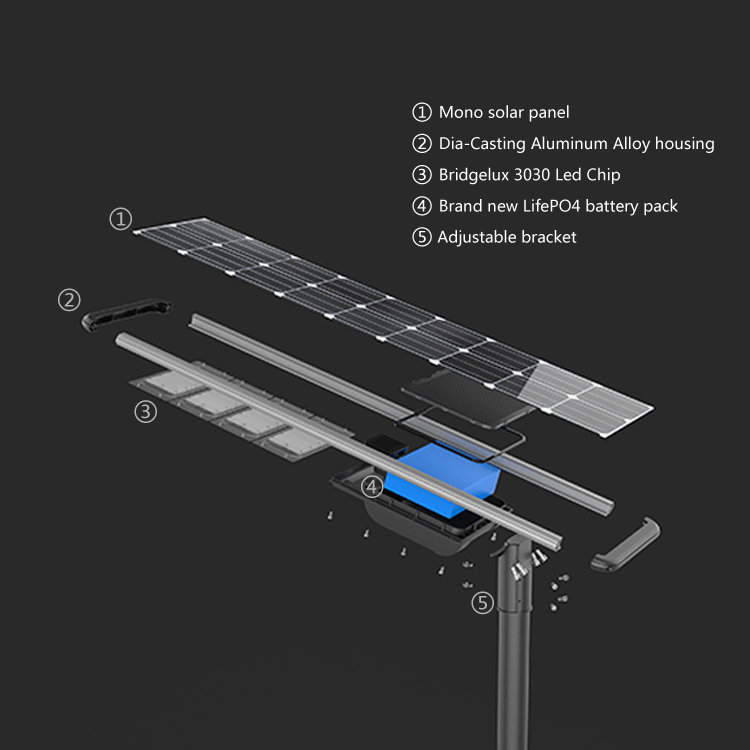

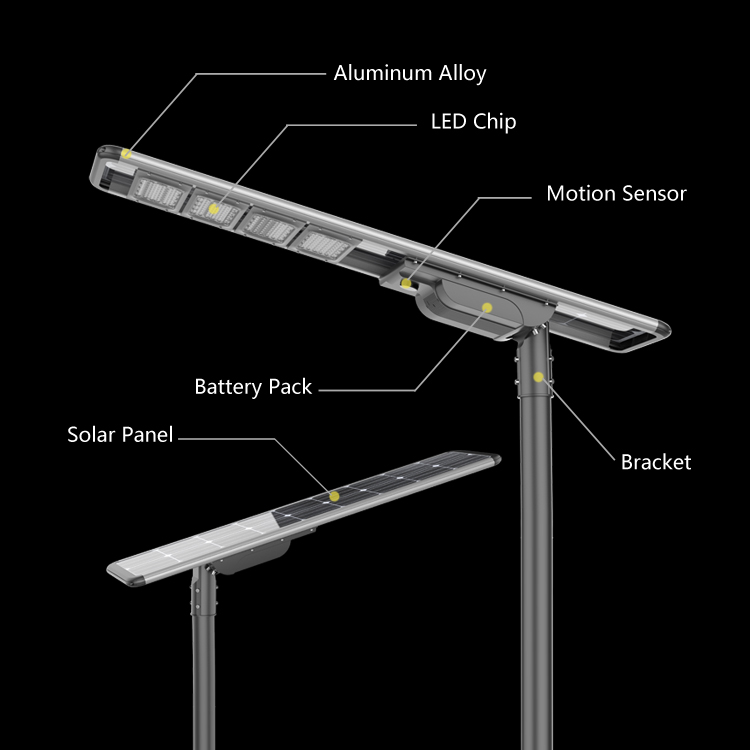

①Mono solar panel ②Dia-Casting Aluminum Alloy housing ③Bridgelux 3030 Led Chip ④ Brand new LifePO4 battery pack ⑤ Adjustable bracket

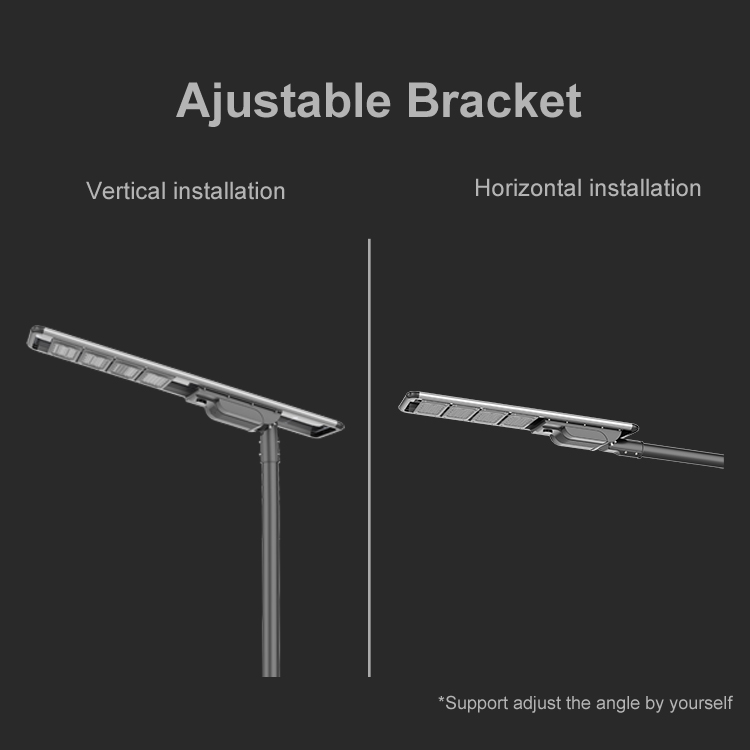

Ajustable Bracket

Vertical installation ,Horizontal installation

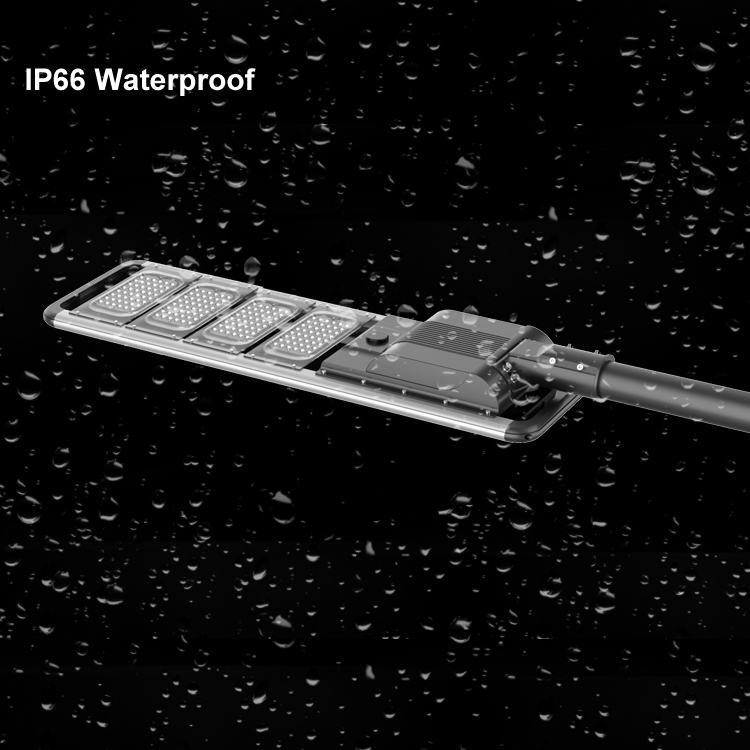

Waterproof IP66



Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.
