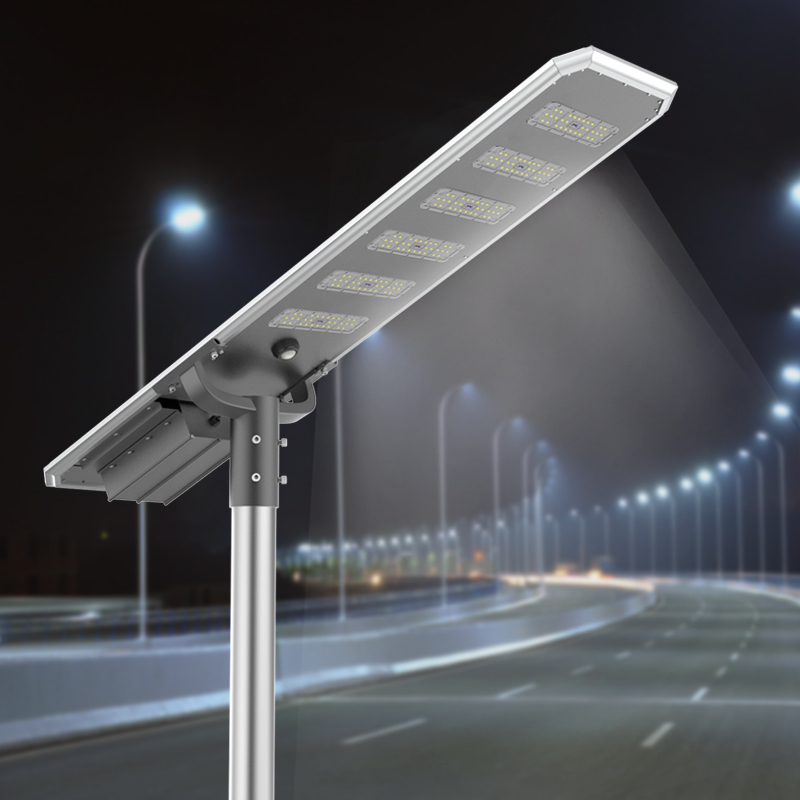

DYM series china manufacturer 30w 60w 80w 100w 120w All in one led solar street light with pole

SEND INQUITY
DYM series china manufacturer 30w 60w 80w 100w 120w  All in one led solar street light with pole
DYM series china manufacturer 30w 60w 80w 100w 120w  All in one led solar street light with pole
DYM series china manufacturer 30w 60w 80w 100w 120w  All in one led solar street light with pole
DYM series china manufacturer 30w 60w 80w 100w 120w  All in one led solar street light with pole
DYM series china manufacturer 30w 60w 80w 100w 120w  All in one led solar street light with pole

Quick Information

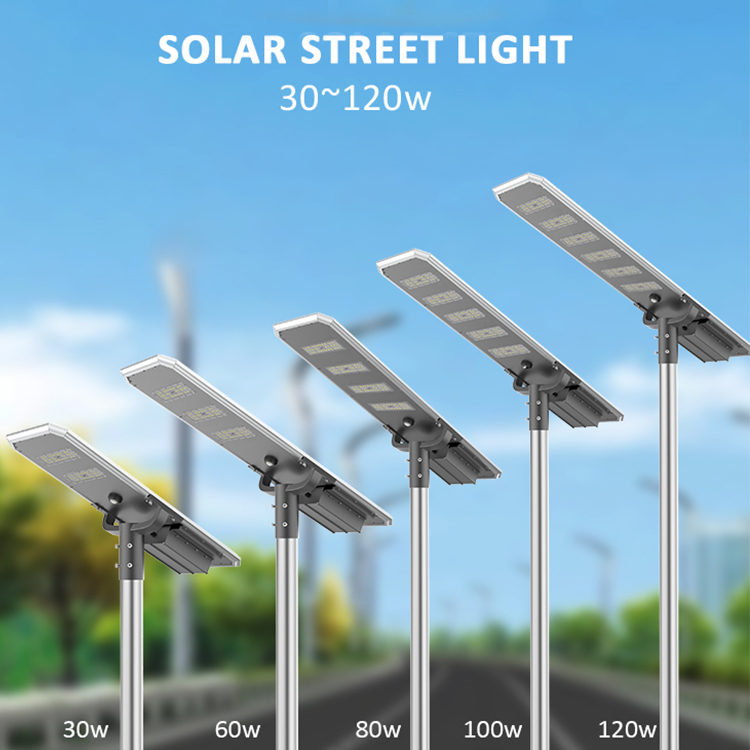

  • Power: 30w/60w/80w/100w/120w
  • Light Efficiency: >170Lm/W
  • Solar panel:Monocrystalline
  • Material: Die-cast Aluminum+PWMA Led lens
  • LED Chip: Luxeon,Cree,Bridgelux,3030
  • Battery:A class Lifepo4 Battery

Our Advantages

1. Our lithium-ion batteries have a lifespan of 10 years and a cycle rating of 3000 cycles. This ensures a long-lasting and reliable power supply for street lights.

2. Our solar street lights adopt modular design and scientifically designed LED modules, which have wide light coverage, larger lighting area and higher visibility.

3. Due to the built-in sensing element, the light automatically turns off charging during the day. It also features an automatic lighting function at night, with an integrated sensing element that detects the absence of natural light and activates the light source.

 4. Our solar street lights integrate various high-performance components, including high-efficiency solar panels, ultra-long-life lithium batteries, high-efficiency LEDs, and MPPT intelligent controllers. It also includes PIR sensor human body sensing module and anti-theft mounting bracket. Installation is quick and easy, requiring only two workers to install in as little as

5 minutes with the provided wrench, no heavy equipment or tools required. 5. DYM series solar street lights can be installed at a height of 3 meters to 13 meters. They can be mounted horizontally or vertically on high pole lights, with adjustable sleeves, with a tilt angle of 15-30°. These lights are suitable for a variety of applications including single and dual carriageway roads, motorways and gardens with a recommended installation spacing of 15-40m. DYM series is very suitable for high-quality engineering projects, providing economical and practical solutions. We take pride in being able to provide reliable, high-efficiency solar street lights that meet your needs.

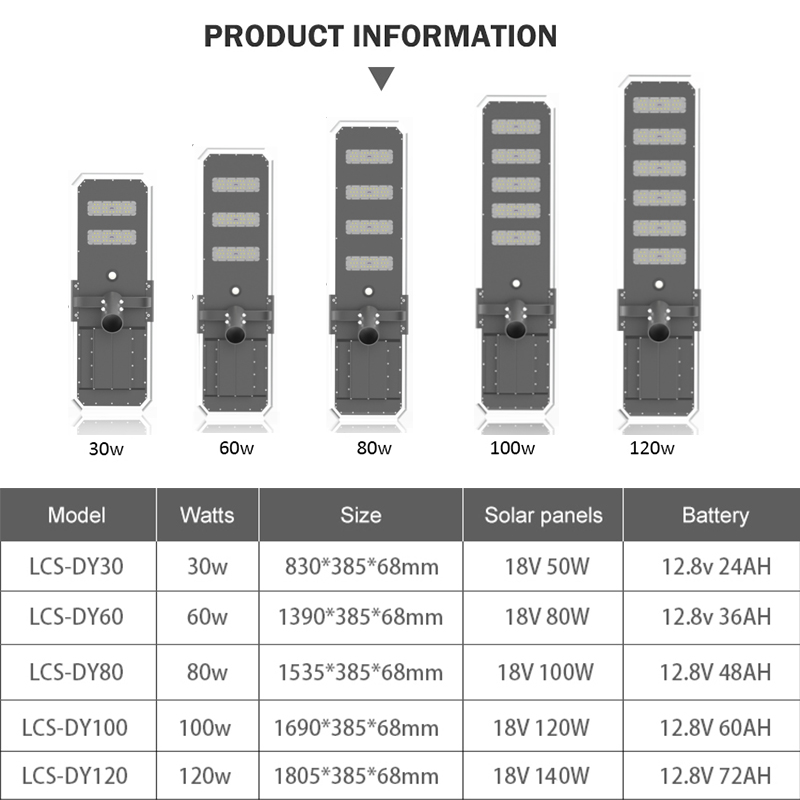

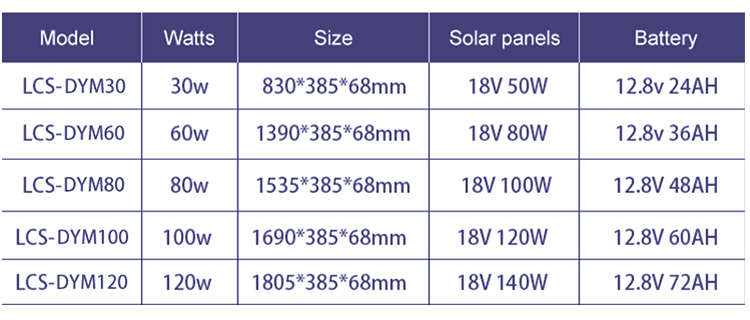

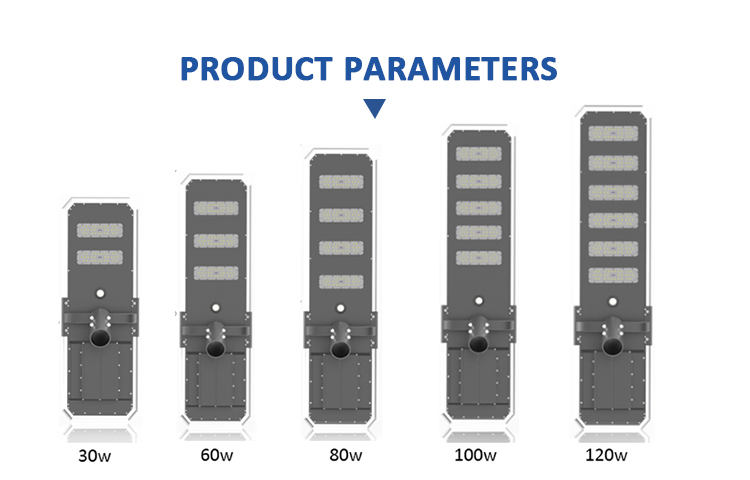

Specification

Specifications Of LECUSO DYM Series LED Solar Street Light

Power

30w

60w

80w

100w

120w

3030 LED chip

100PCS

150PCS

200PCS

250PCS

300PCS

Luminous Flux

5100LM

10200LM

13600LM

17000LM

20400LM

LiFePO4  Lithium Battery

12.8v 24AH

12.8v 36AH

12.8V 48AH

12.8V 60AH

12.8V 72AH

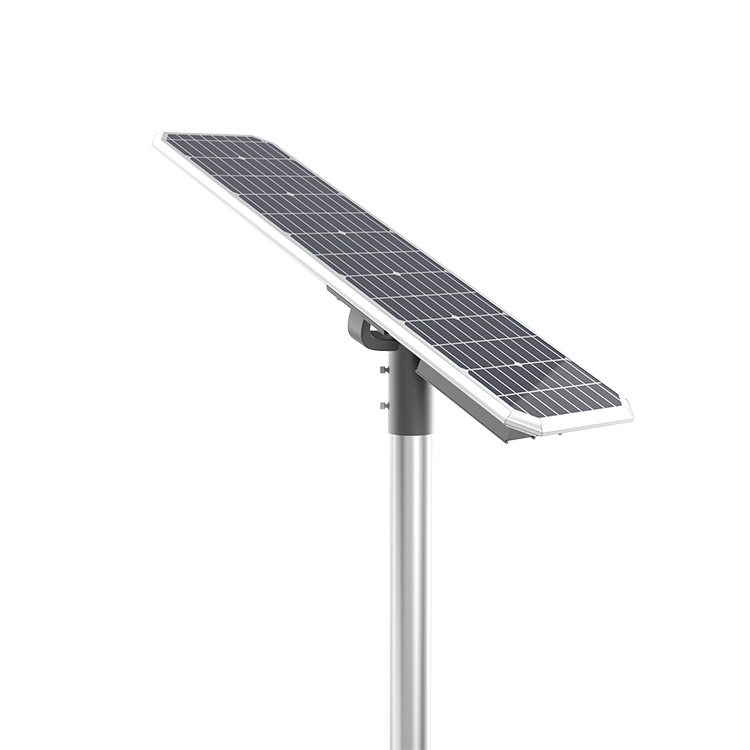

Mono Solar Panel

18V 50W

18V 80W

18V 100W

18V 120W

18V 140W

Install height

4-5M

6-7M

7-8M

8-10M

9-12M

Solar charging time

5-6 hours

Material

Aluminum Alloy+ PMMA

Lighting Mode

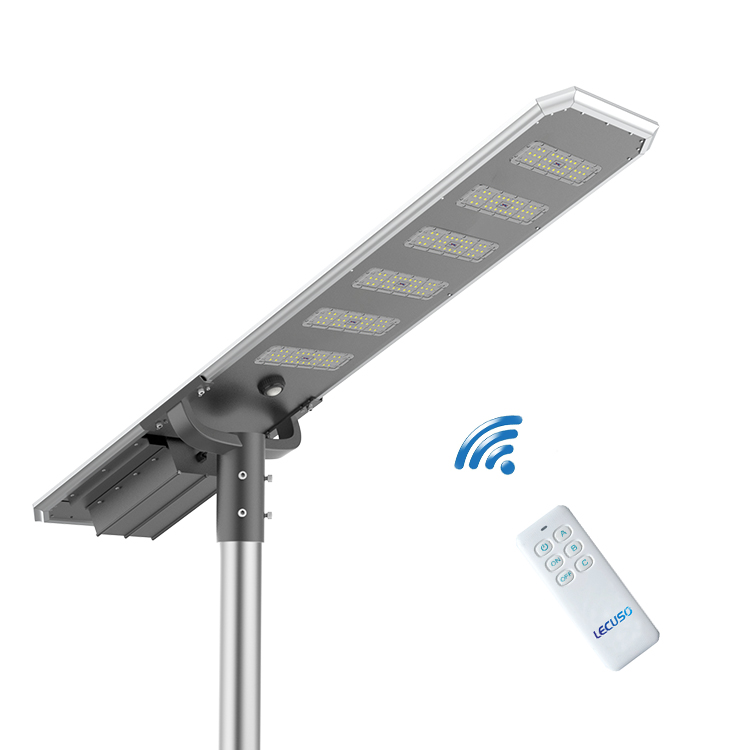

motion sensor/timer/remote control/ODM

CRI

>80

Rated Life

80000h

Working Temperature

-25~+60°C

Install

76mm-114mm

Application

Highway, street, road, garden, outdoor, etc.

Warranty

3/5 Years

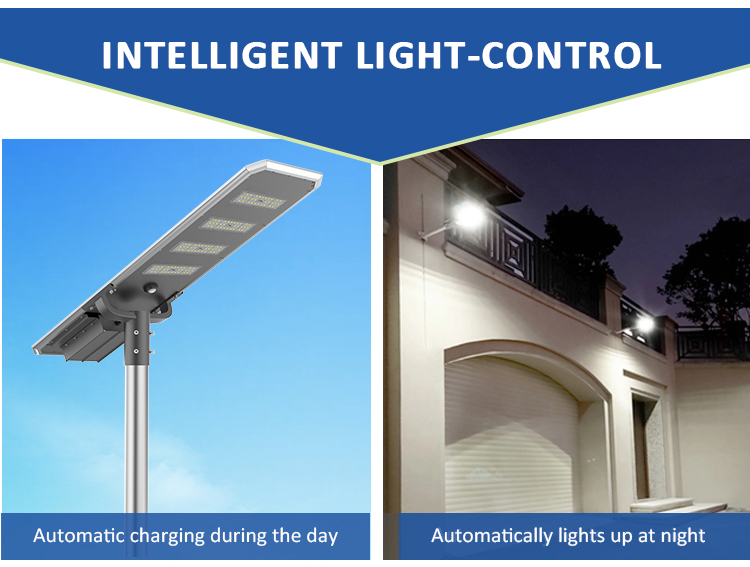

Automatic charging during the day             Automatically lights up at night

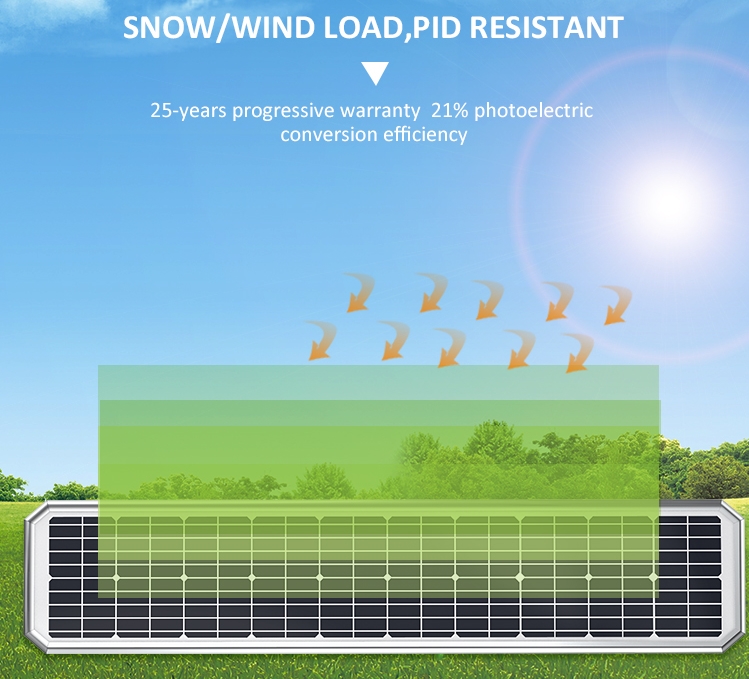

SNOW/WIND LOAD,PID RESISTANT

25-years progressive warranty 21% photoelectric conversion efficiency

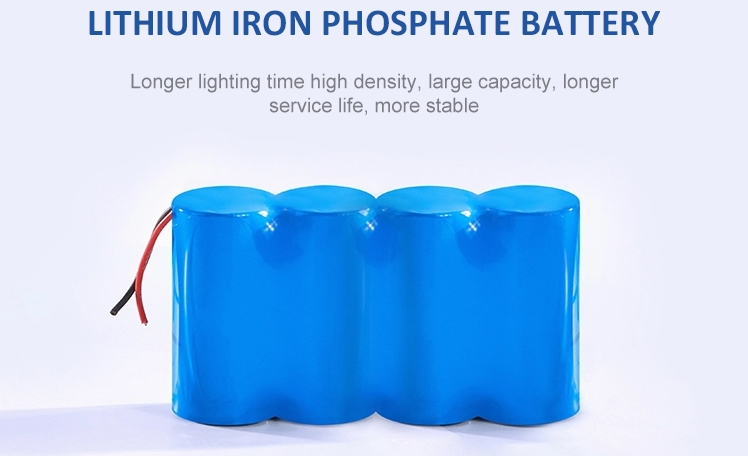

A Class LITHIUM IRON PHOSPHATE BATTERY(Lifepo4 Battery)

Longer lighting time high density, large capacity, longer service life, more stable

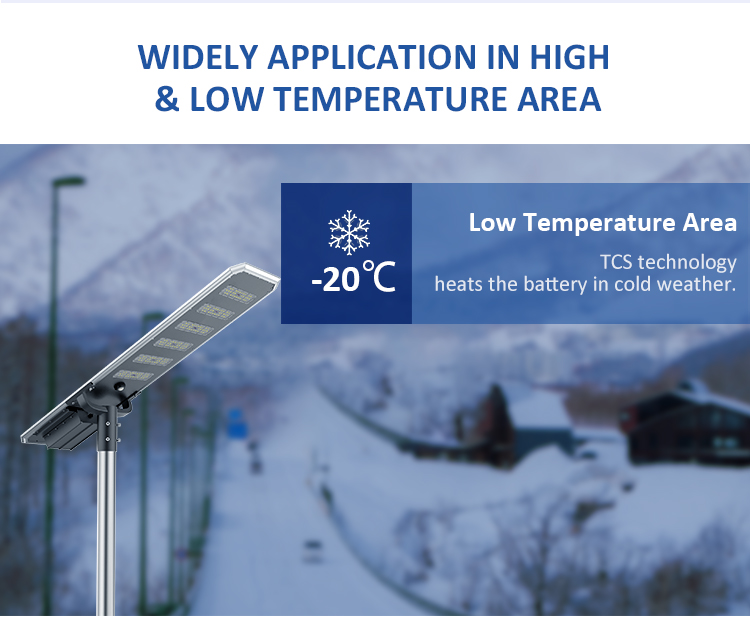

WIDELY APPLICATION IN HIGH & LOW TEMPERATURE AREA

Low Temperature Area -20°℃ ,TCS technology heats the battery in cold weather.

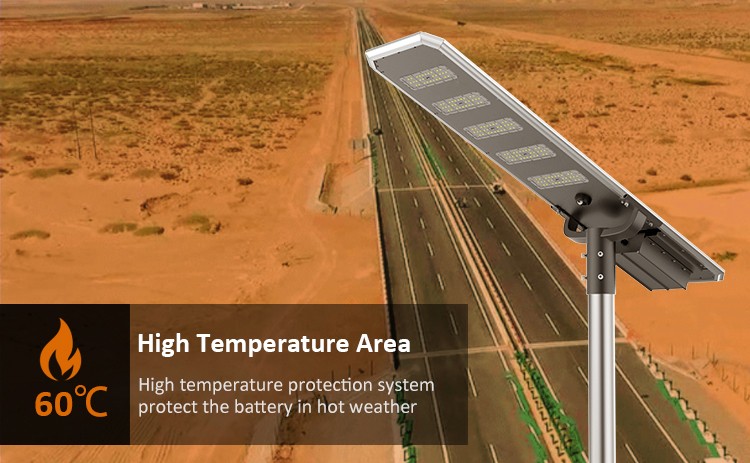

High Temperature Area 60℃

High temperature protection system protect the battery in hot weather

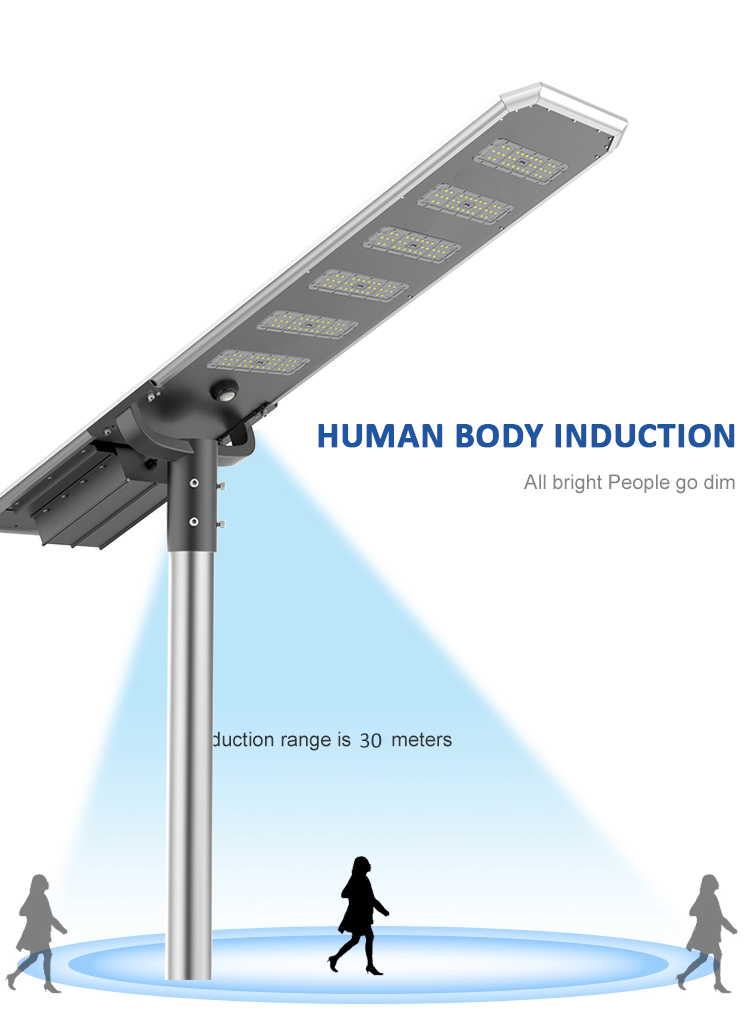

HUMAN BODY INDUCTION

All bright People go dim,Duction range is 30 Meters

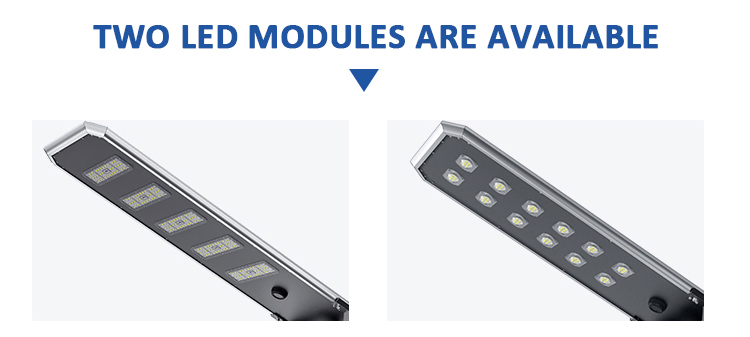

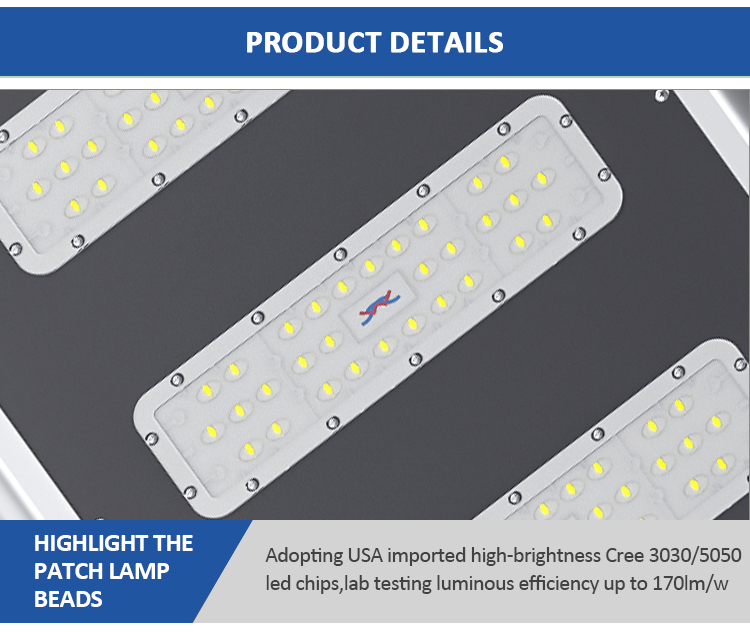

HIGH LIGHT THE PATCH LAMP CHIPS

Adopting USA imported high-brightness Cree 3030/5050led chips,lab testing luminous efficiency up to 170lm/w

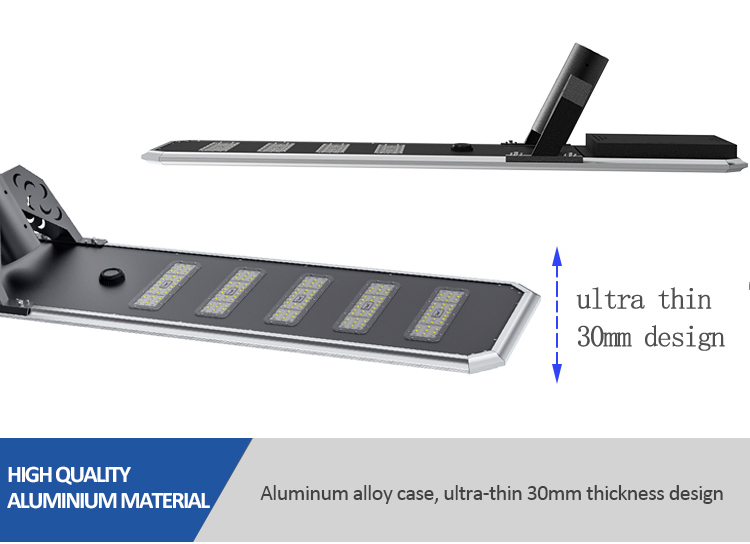

HIGH QUALITY ALUMINIUM MATERIAL

Aluminum alloy case, ultra-thin 30mm thickness design

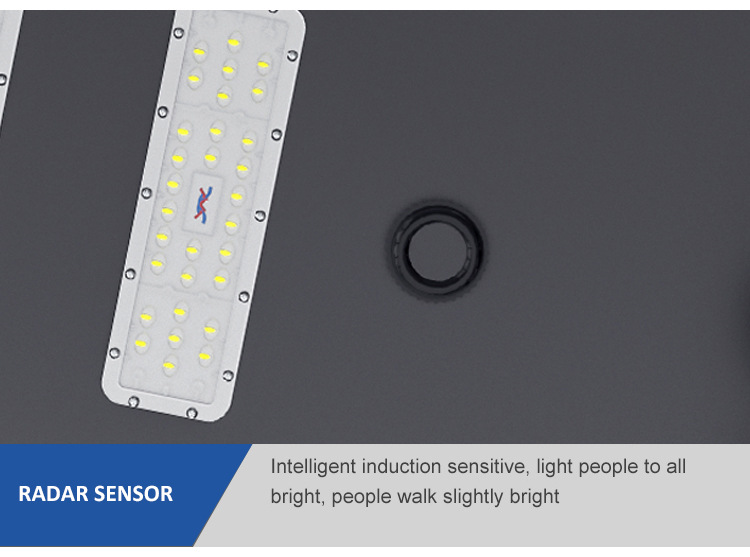

RADAR SENSOR

Intelligent induction sensitive, People pass Brightness, people Leave 30% Brightness

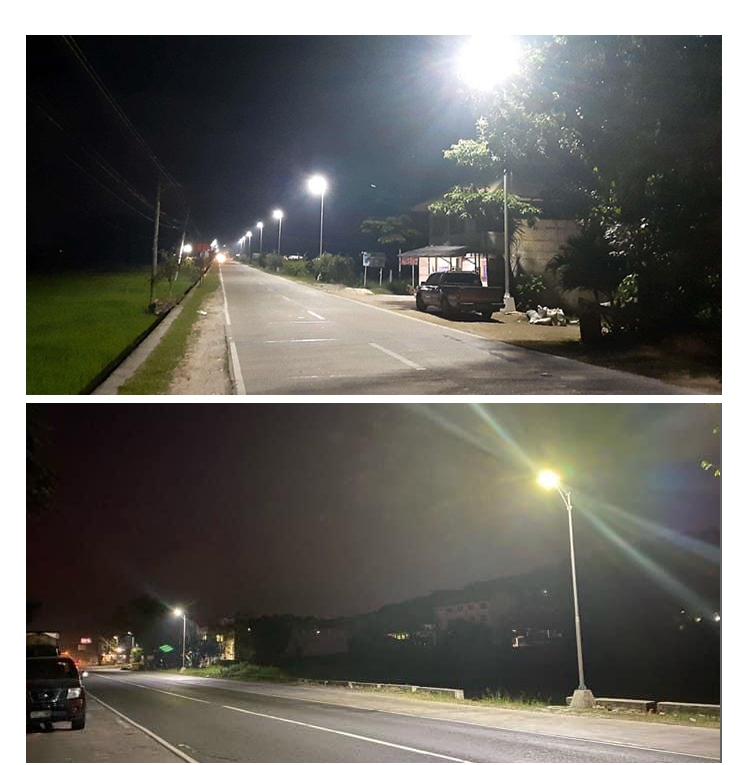

PROJECT CASE



Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.

View Cases
