Lead-acid Battery Solar Storage System

SEND INQUITY
Lead-acid Battery Solar Storage System
Lead-acid Battery Solar Storage System
Lead-acid Battery Solar Storage System
Lead-acid Battery Solar Storage System
Lead-acid Battery Solar Storage System
Lead-acid Battery Solar Storage System

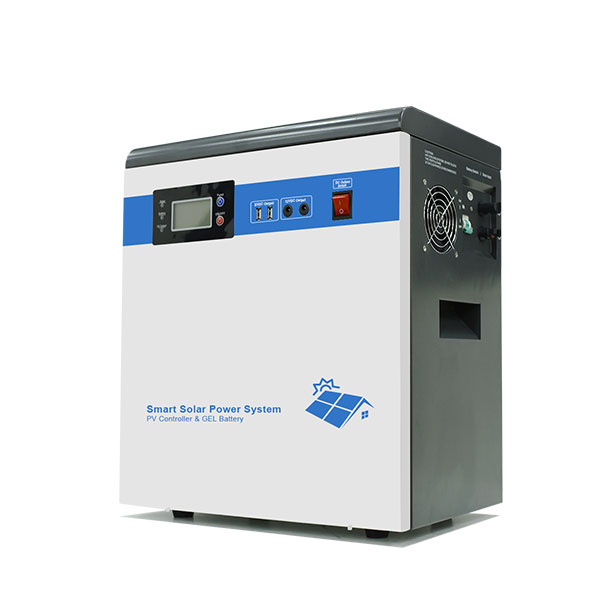

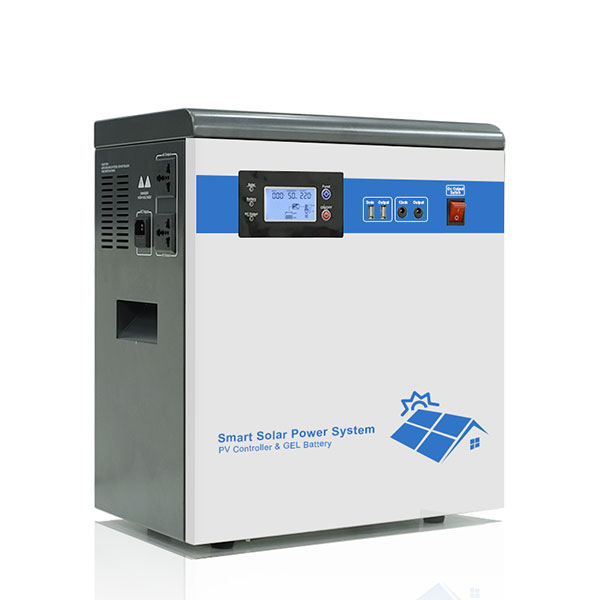

Integrated design without complicated wiring, using detachable battery cover, easy maintenance and replacement. The lead-acid battery solar storage system built in up to 12KWH battery, long using time.

Quick Information
  • Rated loads capacity:500W- 5000W
  • Power generation:780WH-12000WH
  • Solar panel: Polycrystalline / Monocrystalline
  • Battery: GEL Lead-acid Battery
  • Controller: PWM
  • Solar panel bracket: Roof / Ground type

The difference between the lead-acid battery solar storage system and the solar lithium battery storage system is mainly in the type of battery used. The lead-acid solar battery storage system uses traditional gel battery for storing electricity. The gel batteries have be used in solar power generation systems much earlier than lithium batteries, so its stability will be relatively greater than lithium batteries. And for the same capacity, the cost of gel battery is lower than that of the lithium battery. Therefore, the lead-acid battery solar storage system is also welcomed by many customers due to its high cost effect.

Solar storage system VS traditional solar power system

  • Easier

The integrated solar energy storage cabinet system does not require complicated wiring. It is easier and more convenient to use.

  • Save time

The solar energy storage cabinet system can be used as long as it is connected to the solar panel, without wiring, saving a lot of time to install the system.

  • Better management

The controller, inverter, and battery are all built-in which are making subsequent maintenance and management more convenient.

  • More space

The solar energy storage cabinet system covers a small area, a closed design, and strong environmental adaptability.


Our Advantages

  • Integrated design, easy to install and convenient to use.

  • Built in up to 12KWH battery, long using time.

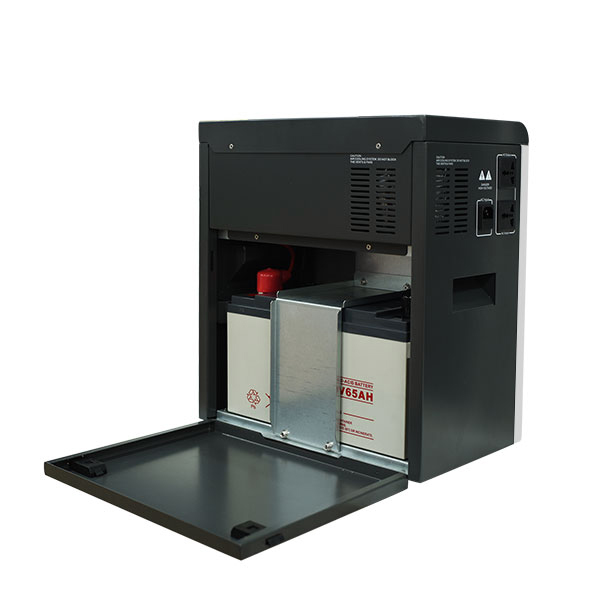

  • Using detachable battery cover, easy maintenance and replacement.

  • Designed with wheels, convenient for movement and transportation, flexibly adjust the installation position.


Specification

ModelPSG-500WPSG-1000WPSG-2000W
Battery rated voltage12V12V24V
INVERTER
Rated power500W1000W2000W
Input voltage range140-275V
Output waveSine Wave
Specification of built-in lithium battery12V65AH12V100AH2pcs 12V120AH
CommunicationRS232
SOLAR INPUT
Solar panel rated power360W360W720W
Rated charge current30A
DC OUTPUT
5 VDC USB output2Pieces /MAX 2A
12 VDC output ports2Pieces /MAX 2A
PHYSICAL
Heat dissipation/coolingTemperature control by intelligent exhaust fan
DisplayDigital LCD
Electricity chargingYes
Specification of built-in lithium battery434 × 242 × 461448 × 248 × 503491 × 394 × 552
Communication500 × 350 × 540517 × 346 × 583555 × 490 × 730


Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.
