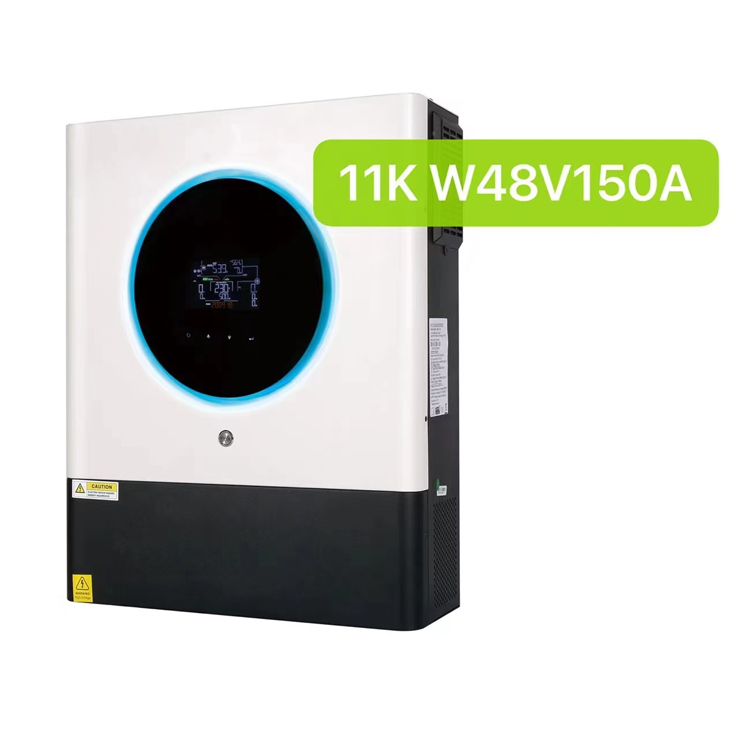

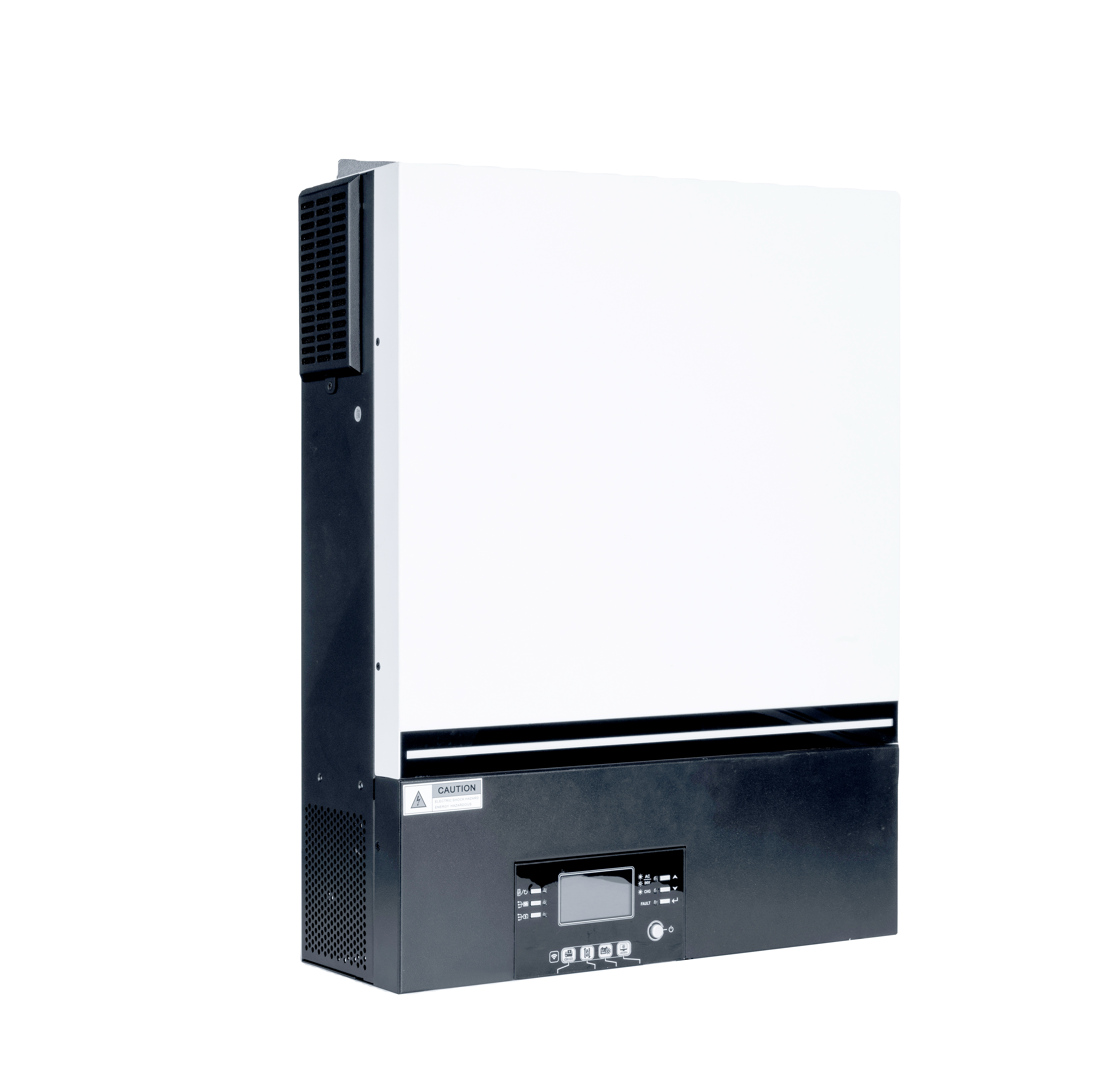

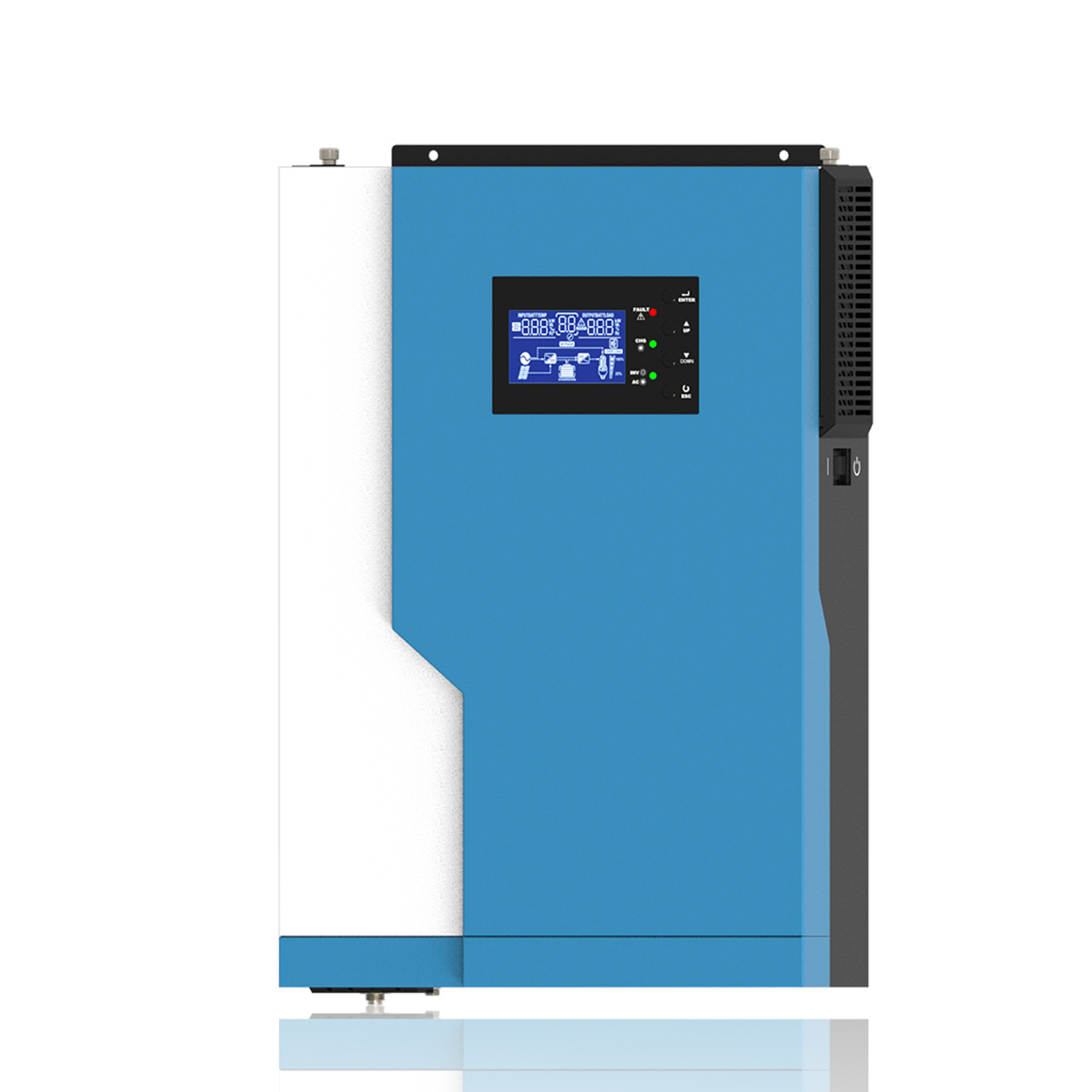

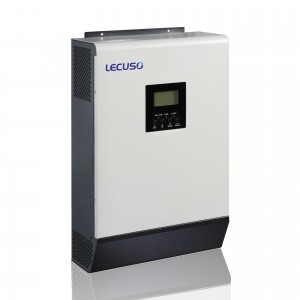

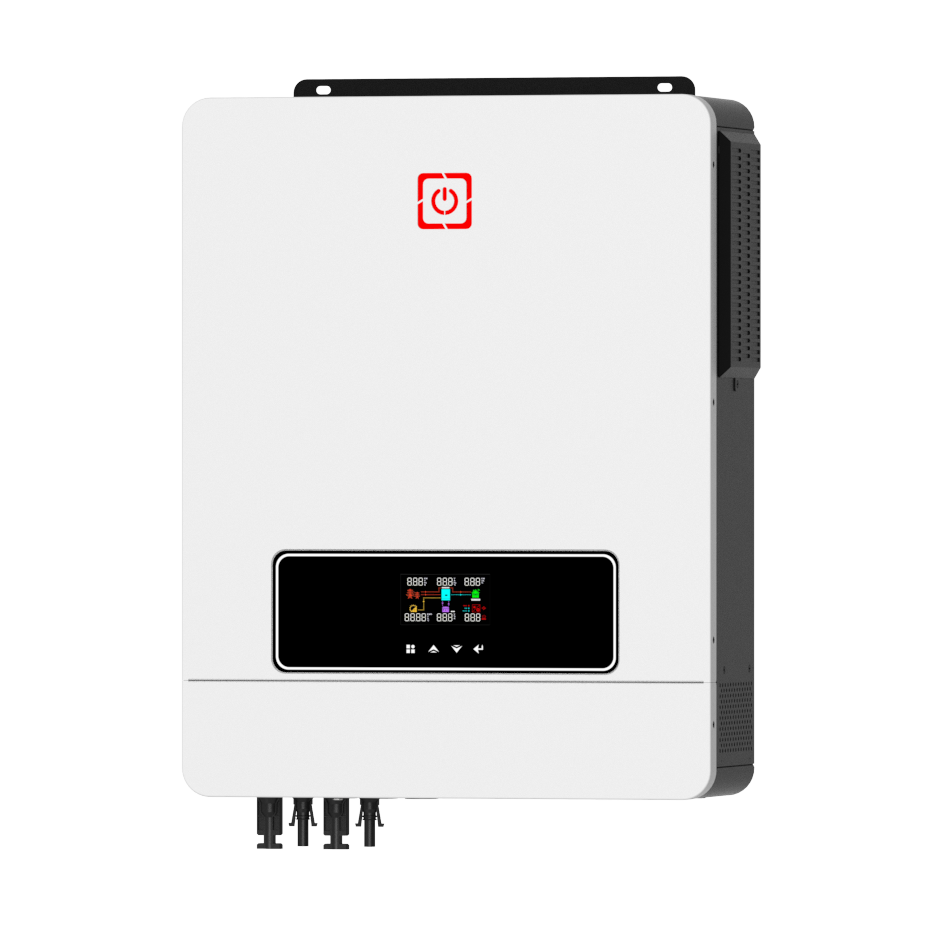

MPPT 3kw 5kw 5.5kw 8kw 10kw All in one solar hybrid inverter
- Short description
- Power: 1KW-10KW
- Type: off grid system
- Inverter: Hybrid solar Inverter
- Solar Panel Type: Monocrystalline Silicon, Polycrystalline Silicon
- Battery Type: Lead-Acid battery, Lithium battery
- Application: Home, Commercial, Industrial
Our Advantages

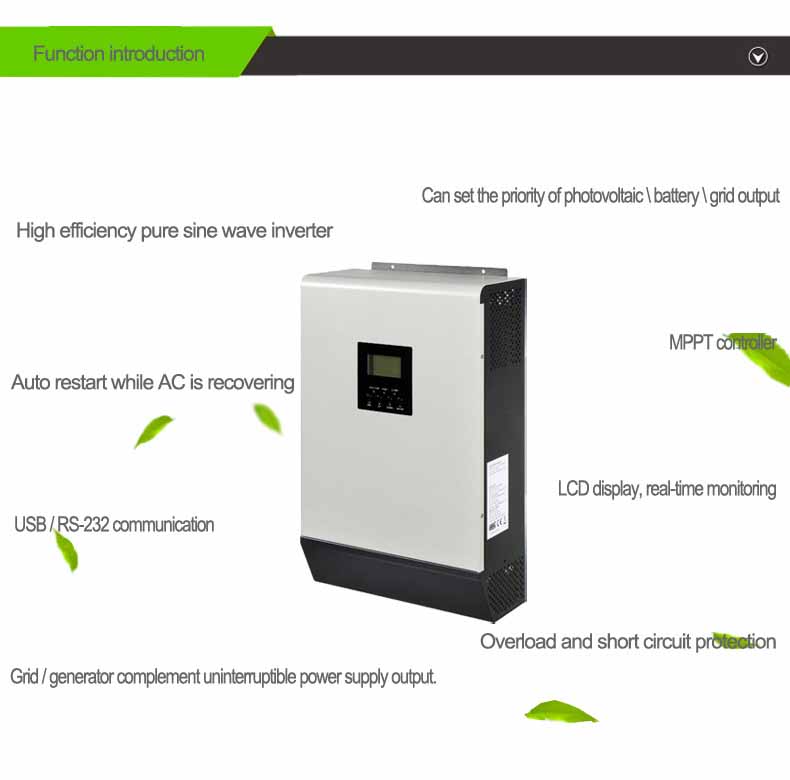

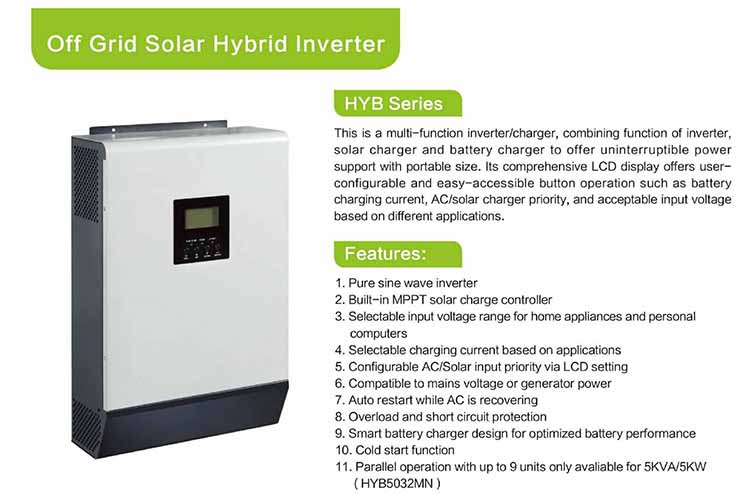

1. This is an upgraded multi functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Support Bluetooth for mobile monitoring, and its detachable LCD display module offers user-configurable and easy-accessible button operation such as battery charging current, AC/ solar charger priority, and acceptable input voltage based on different applications.
2. Support Bluetooth for mobile monitoring (Android App available).
3. Pure sine wave Built-in MPPT solar charge controlller Configurable solar input voltage up to 450V Maximum Configurable input
4. Voltage range for home appliances and personal computers via LCD setting Configurable batterycharging current based on
5. Auto restart while AC or Solar is recovering Capable working without battery connection Capable suppling power to AC output with
Specification
MODEL | LCS3022VM | LCS3022VMN PLUS | LCS5032VMN | LCS5032M | LCS5032MN |
RATED POWER | 3000VA/2400W | 3000VA/3000W | 5000VA/4000W | 5000VA/4000W | 5000VA/5000W |
Parallel Capacity | No | No | No | Yes, 9pcs | Yes, 9pcs |
Voltage | 230 VAC | ||||
selectable voltage range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | ||||
Frequency range | 50Hz/60Hz (auto sensing) | ||||
OUTPUT | |||||
Surge Power | 6000VA | 6000VA | 10000VA | 10000VA | 10000VA |
Waveform | pure sine wave | ||||
SOLAR CHARGER | |||||
Maximum PV Array Power | 1000W | 1500W | 3000W | 4800W | 5000W |
Maximum Charging Current | 40A | 60A | 60A | 80A | 80A |
Dimension, D*W*H(mm) | 95*240*316 | 100*272*385 | 155*295*455 | 155*295*455 | 155*295*455 |
Net weight (kgs) | 7KG | 7KG | 13KG | 13KG | 13KG |
Product Description
Packing & Delivery
