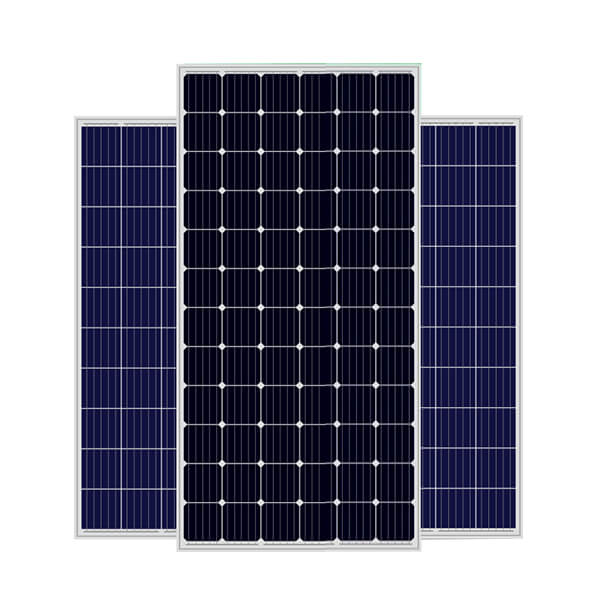

Polycrystalline-Monocrystalline Solar Panel
Both mono and poly type solar panel adopt most advanced PERC cells technology, realizing higher module conversion efficiency. Black silicon cells are used, with lower reflection, so as to improve power generation output.
- Max power:50W - 500W
- Cell efficiency:18% - 22%
- Operating module temperature:-40 °C to + 85 °C
- Maximum system voltage:1000/1500 V DC (IEC)
- Power tolerance: 0~ + 5W
- Standard test condition(STC): lrradiance 1000 W/m 2, module temperature 25 °C, AM=1.5; Tolerances of Pmax, Voc and Isc are all within +/- 5%.
The solar panel is a kind of semiconductor device composed of a certain number of solar cells which can convert sunshine into electricity. It can convert the solar radiation energy on its surface into direct current. Solar panels are the core component in solar power generation systems. They have the characteristics of long service life and strong mechanical resistance to pressure.
Our Advantages
Having 12 years’ experience of producing, designing, installation and exporting.
Owning professional solar panel factory, with competitive price guarantee.
With one-stop service, offering complete solar power system.
Offering OEM services.
Reliable after-sale service.

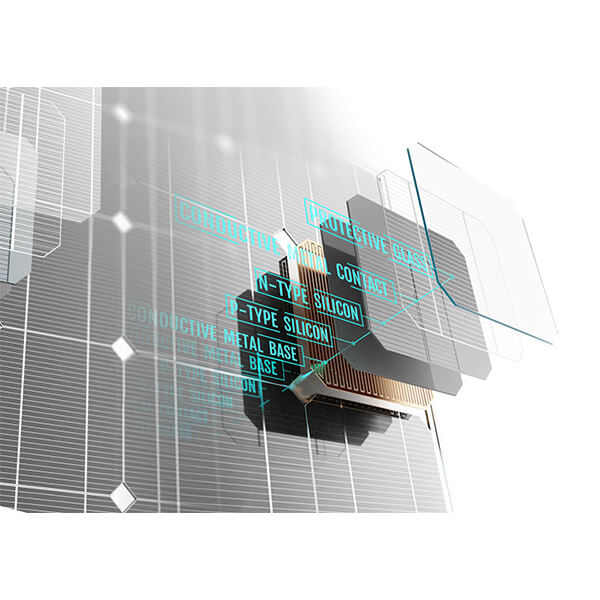

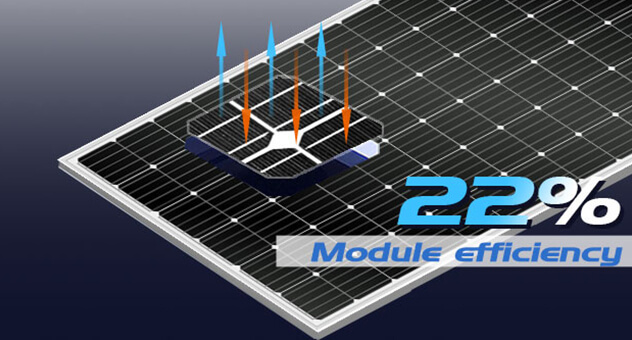

Solar Cell

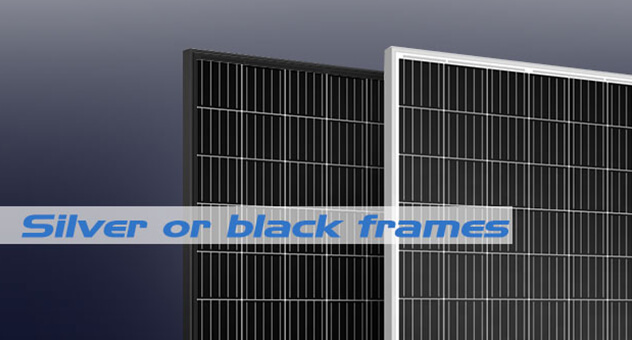

Fame

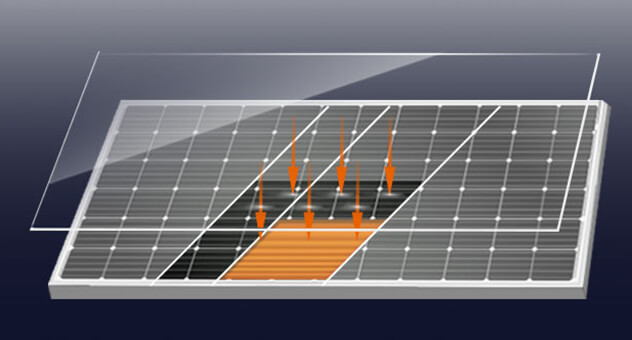

Glass

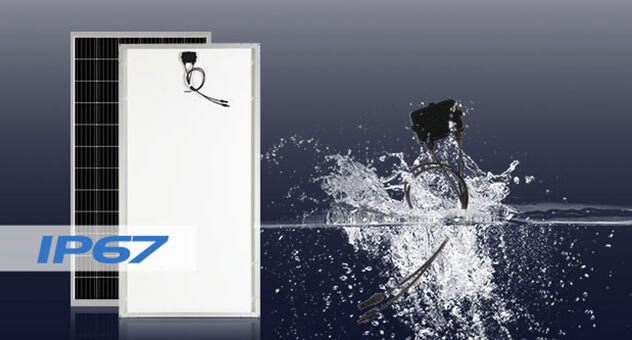

Junction Box
Specification

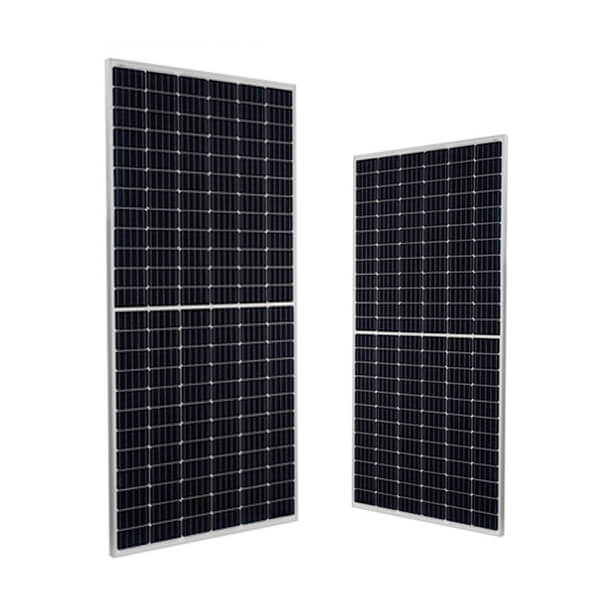

Monocrystalline solar panel
| Power | Vmp | Imp | Dimension |
| 100W | 18.9V | 5.3A | 1010 × 540 × 25 mm |
| 120W | 18.7V | 6.42A | 1020 × 680 × 35 mm |
| 150W | 18.5V | 8.11A | 1480 × 680 × 35 mm |
| 200W | 24.5V | 8.16A | 1330 × 992 × 35 mm |
| 270W | 31.2V | 8.65A | 1640 × 992 × 35 mm |
| 310W | 33.7V | 9.2A | 1640 × 992 × 35 mm |
| 350W | 38.8V | 9.02A | 1956 × 992 × 40 mm |
| 380W | 39.5V | 9.62A | 1956 × 992 × 40 mm |
| 450W | 48.1V | 9.36A | 1956 × 1310 × 40 mm |
| 500W | 48.7V | 10.27A | 1956 × 1310 × 40 mm |

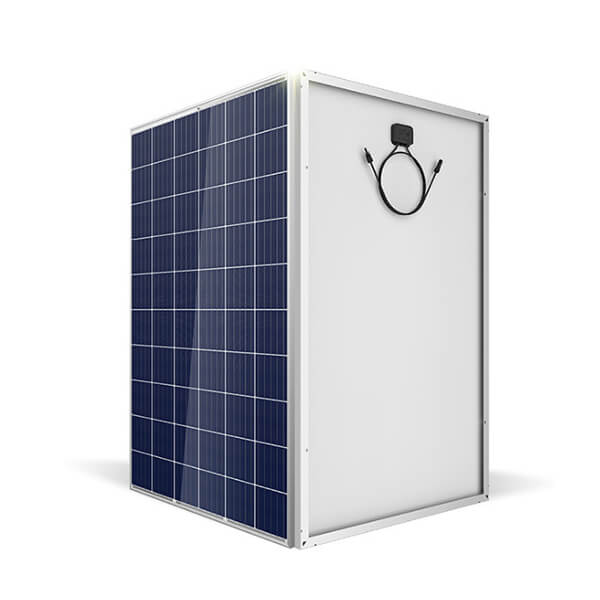

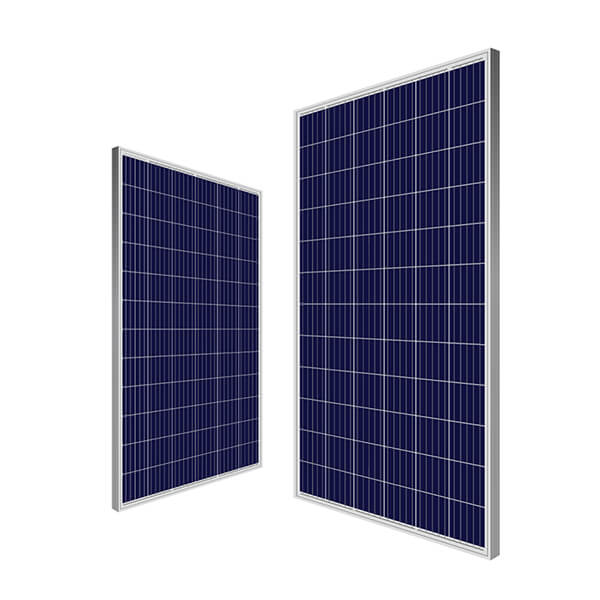

Polycrystalline solar panel
| Power | Vmp | Imp | Dimension |
| 100W | 18.9V | 5.3A | 1020 × 680 × 35 mm |
| 120W | 18.5V | 6.49A | 1030 × 680 × 35 mm |
| 150W | 18.7V | 8.02A | 1480 × 680 × 35 mm |
| 200W | 24.5V | 8.16A | 1330 × 992 × 35 mm |
| 270W | 31.5V | 8.57A | 1640 × 992 × 35 mm |
| 300W | 32.35V | 9.23A | 1640 × 992 × 35 mm |
| 350W | 38.9V | 9.00A | 1956 × 992 × 40 mm |
