Big Power LED Flood Light (TGD05)

SEND INQUITY
Big Power LED Flood Light (TGD05)
Big Power LED Flood Light (TGD05)
Big Power LED Flood Light (TGD05)
Big Power LED Flood Light (TGD05)
Big Power LED Flood Light (TGD05)
Big Power LED Flood Light (TGD05)

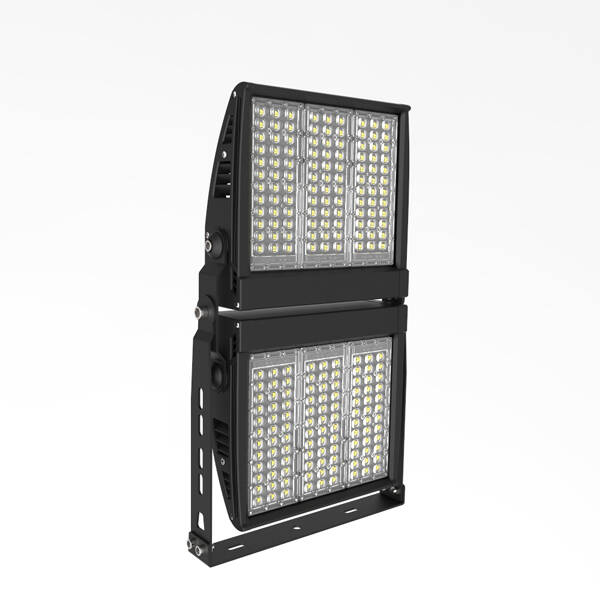

TGD05 series LED flood light is a high-power LED lamp which is specially designed for engineering lighting, like square, stadium, warehouse lighting, adjustable angle for flexible installation.

Quick Information
  • Power:200W-1000W
  • LED chip:PHILIPS
  • Luminous efficiency:140-150m/w
  • CRI:>80
  • Color temperature:3000-4000K/5000-6500K
  • Working voltage:AC85-265V

LED modular design can effectively solve the heat dissipation problem, thereby increasing the upper limit of the lamp power, up to 1000W. At the same time, each LED module is equipped with a high transmittance acrylic lens, and a variety of light emitting angles are available. Customers can choose the appropriate lens according to the lighting effect they want to achieve. We can also provide DIALux solutions for customers according to their project requirements.

Our Advantages

High to choose high power led flood light

First of all, we have to look at the LED flood light led chips. Because the LED chips are major part of the lamp, so its quality is very important. The quality of the led chips varies from good to bad. When we buy we need ask manufacturers what brand its led chips is, and the size of it. Because the larger the led chip is, the better the quality it is, and the higher brightness it shall be.

Secondly, it is the housing of the LED flood light. Because high-power LED flood lights will generate heat during use, and need a housing to dissipate heat, a good housing is very important. When we choose LED flood lights, we must choose those with an IP rating of 65 or higher, so that it can be used outdoors.

Thirdly, it is the driving power supply for LED flood lights. This is the center of high-power LED flood lights. If the driving power supply is not good, there will be many problems with the lights. Therefore, the requirements for the driving power supply are very high. You need to choose high quality power supply with certain brand strength then can ensure the safe operation of the lamp.

The last is the appearance of the LED flood light. If the first 3 conditions are passed, the appearance is the last pass of the quality inspection. With a good appearance, there will be no scratches, residues of waterproof glue, etc. on the lamps.

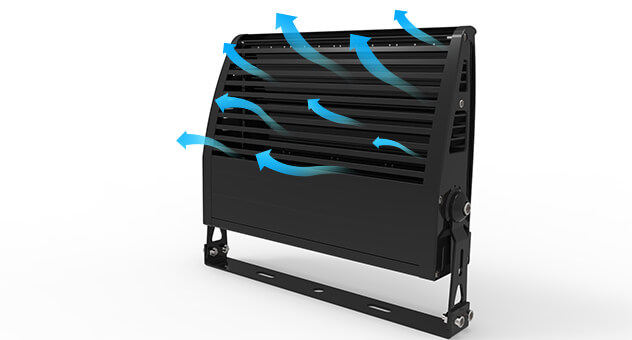

aluminum-die-casting-housing

Aluminum Die-casting Housing

Durable and slimline ADC12 aluminium die-casting housing with a black powder coated finish, ultra-slim design.

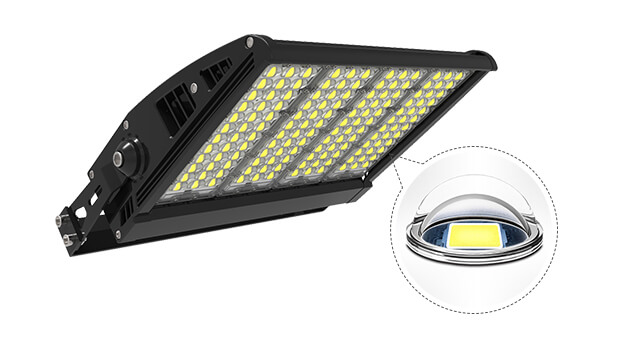

high-efficiency-with-multi-beam-angle-option

High Efficiency with Multi-beam Angle Option

Powerful 5050 leds make the efficiency up to 150lm/w, CRI80 for the whole light, different beam angle 25°/45°/110°, Type III available for most application.

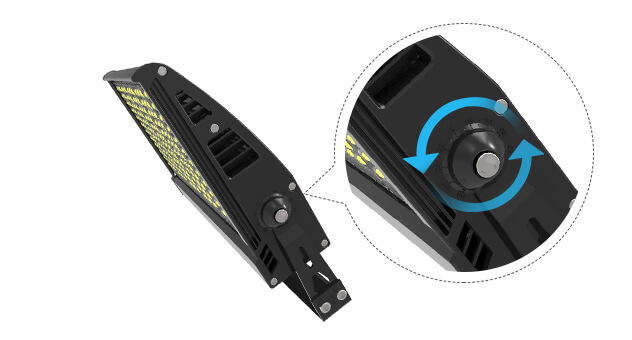

adjustable-mounting-bracket

Adjustable Mounting Bracket

±180°adjustable mounting bracket, flexible for different installation.

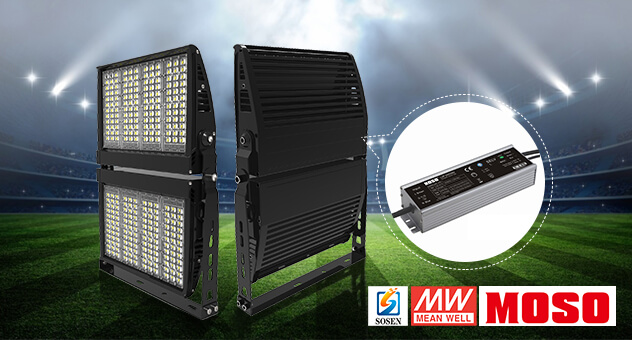

glue-driver

Glue Driver

Meanwell, Moso, Sosen driver optional, with 5 years warranty.


Specification

Power200w / 300w / 400w / 500w / 600w / 800w / 1000w
Led chipsLumiledsSMD3030 / LumiledsSMD5050
Light efficiency140-150lm/w
Input voltage AC85-265VPF>0.95
Power supplyMeanwell ELGCCT2700-6500K
Beam angle25°/45°/110°IP gradeIP67
Lifetime50000hours
Temperature-30-65
Light body colorBlack
Warranty5 years
Power CableBromn L firewire
Yellow green G ground
Blue N zero line


Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.

View Cases

Packing & Delivery
