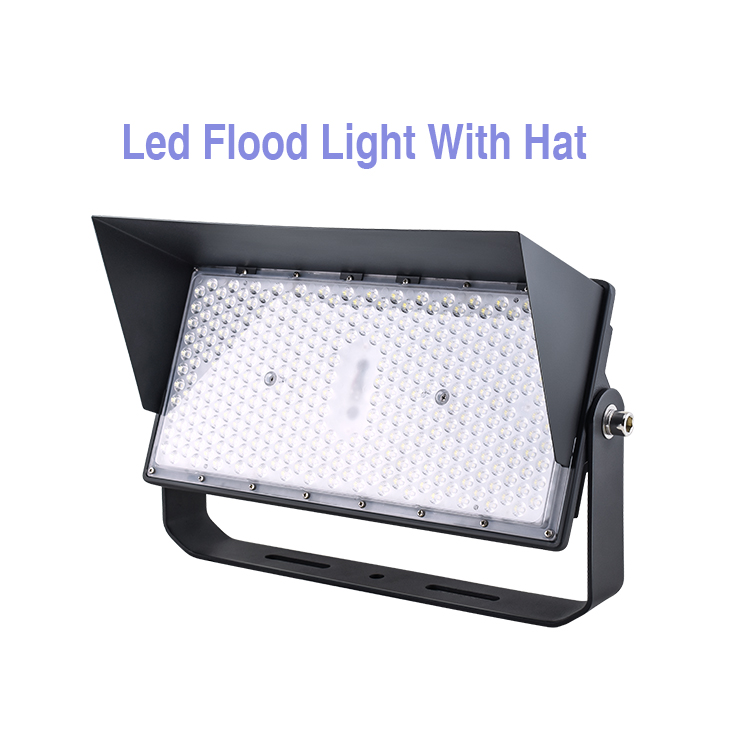

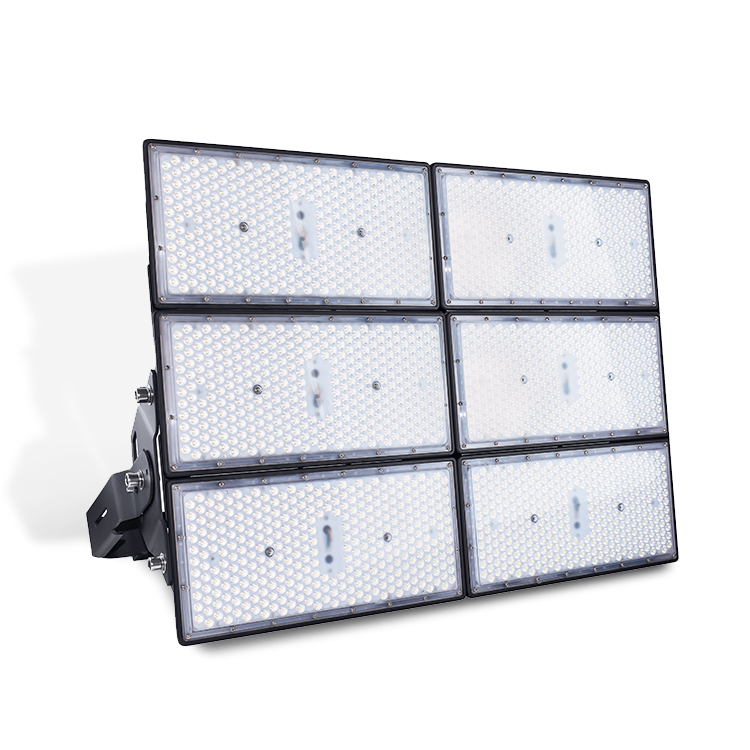

Outdoor New 100w 200w 250w 500w 800w 1000w ip66 outdoor white stadium led flood light

SEND INQUITY
Outdoor New 100w 200w 250w 500w 800w 1000w ip66 outdoor white stadium led flood light
Outdoor New 100w 200w 250w 500w 800w 1000w ip66 outdoor white stadium led flood light
Outdoor New 100w 200w 250w 500w 800w 1000w ip66 outdoor white stadium led flood light
Outdoor New 100w 200w 250w 500w 800w 1000w ip66 outdoor white stadium led flood light
Outdoor New 100w 200w 250w 500w 800w 1000w ip66 outdoor white stadium led flood light
Outdoor New 100w 200w 250w 500w 800w 1000w ip66 outdoor white stadium led flood light

Quick Information
  • Power:200w,400w,600w,800w,1000w,1200w,1600w,2000w
  • Material: Die-casting aluminum+PC lens

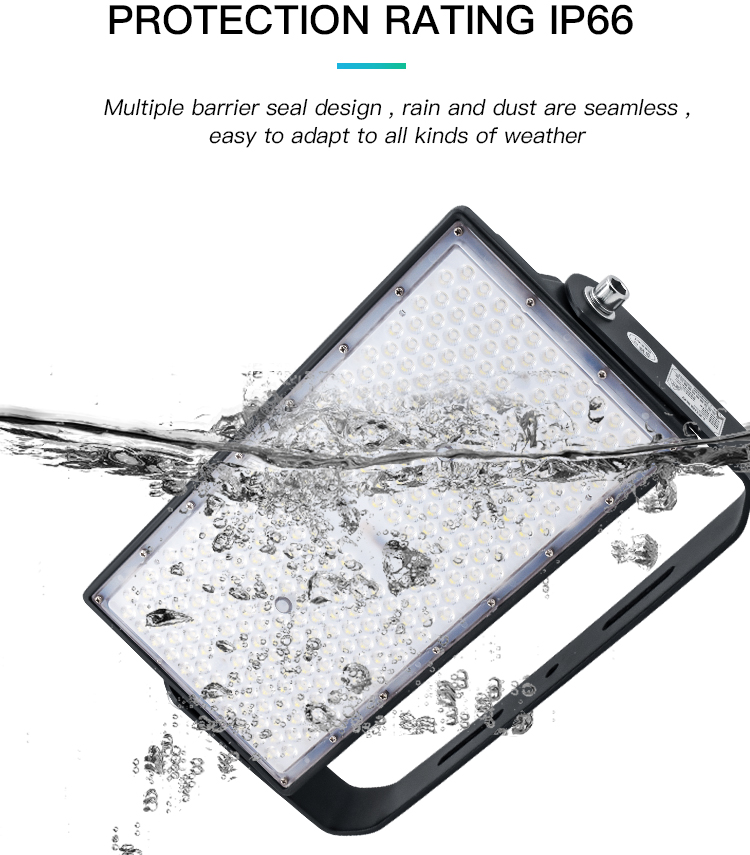

  • Waterproof Grade:IP66
  • Lumens:>150LM/W

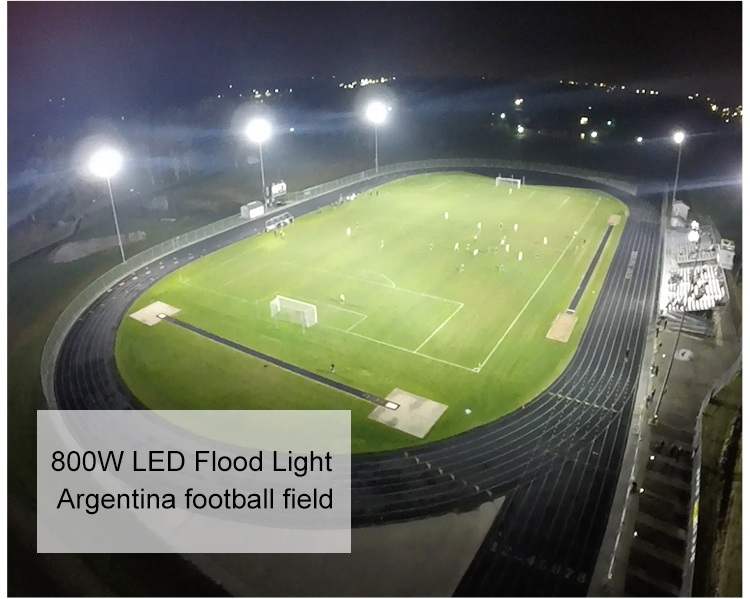

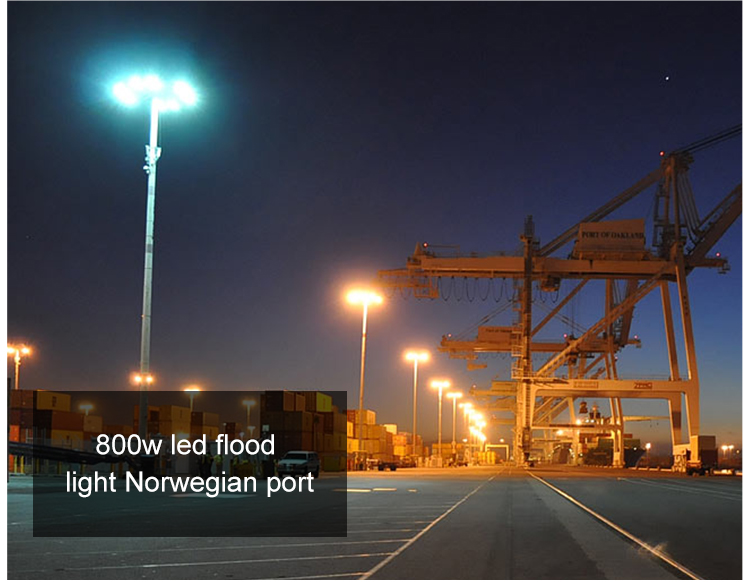

  • Suitable for lighting of football fields, squares, stadiums, tunnels, Courtyards,Sea port,road junctions
  • CE,ROHS,LM79,LM80,IES,Etc.
  • Install Height:3m-40m Pole

Our Advantages

1.In high pole lighting applications,glare has always been a problem that can not be ignored.Lecsuo stadium light can effectively reduce glare through a professional potical design to make light distribution even.

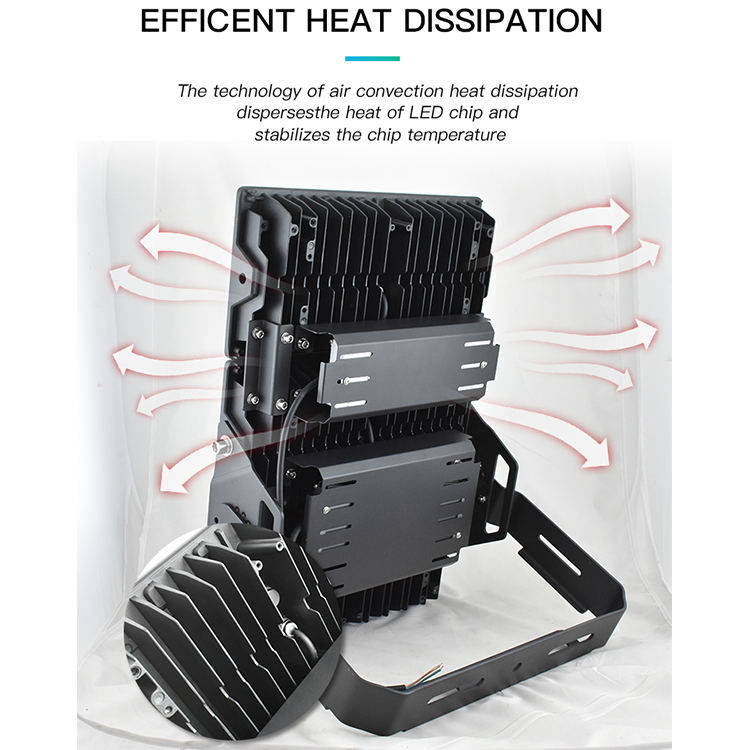

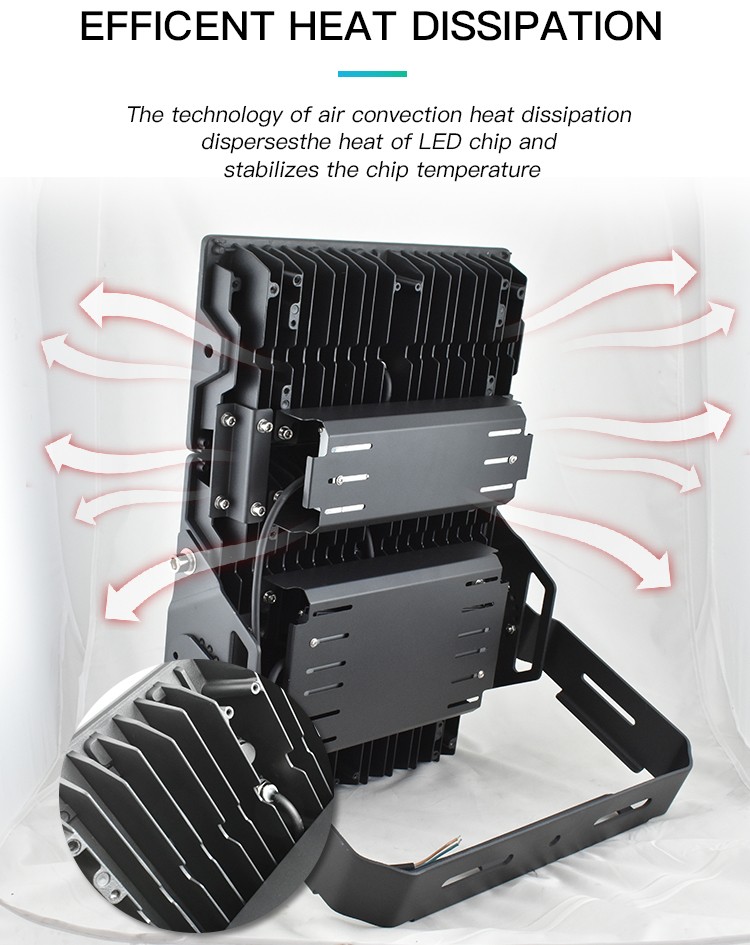

2. Vertical module design, one LED module is equipped with 200 high-brightness chips, which has better heat dissipation performance, more durable and longer life.

3. Strong wind protection, can be hung on a 30 meter light pole to resist typhoon level 12.

4. Taiwan MEANWELL XLG Led driver, IP66 waterproof grade and Aluminium shell protection, double protection, more secure.

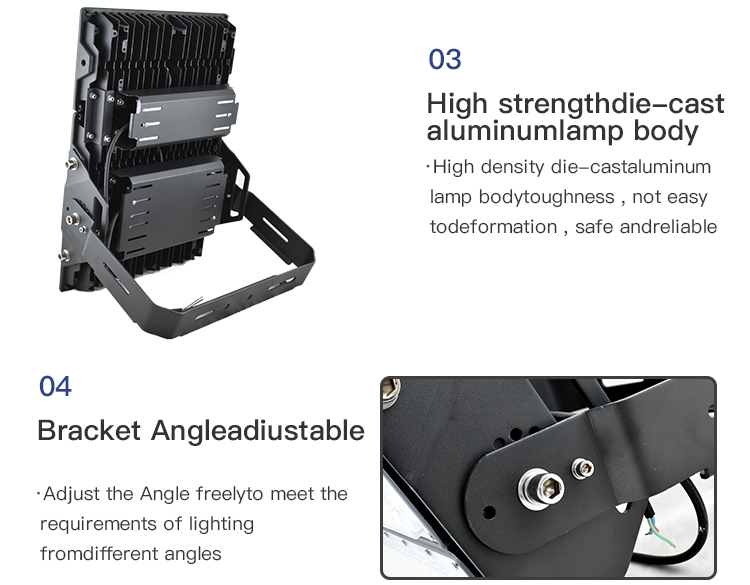

5.Led flood light sheel is made of 1060 High-grade aluminum, 10 years will not rust, weight less and strong, and has high thermal comductivity

6. Special optical design mask: Japanese Emperor Optical PC, tested by UL, light transmittance > 95%, no yellowing, with anti-ultraviolet and other functions.Good condensing, the illumination range of the flood light can exceed 100m.

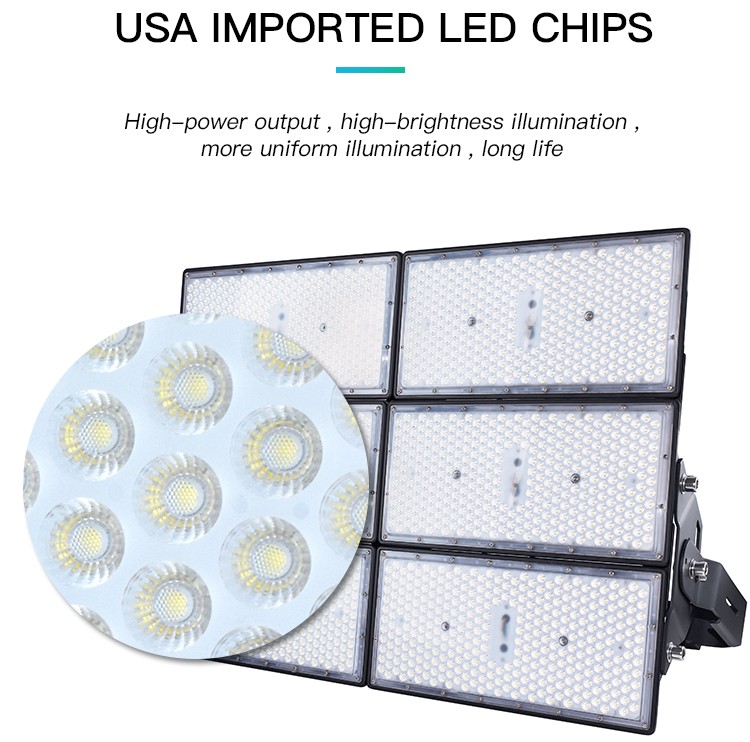

7. Imported high-efficiency LED chips: Lumileds 3030 and Lumileds 5050 are optional, light efficiency >150lm/w.

8. 3 installation methods: bracket installation/pole installation/wall installation optional.

9. Integrated design: simple installation, convenient and quick maintenance.

10.Led flood light Energy efficient:The energy saving effect is remarkable.Under the same conditions led light can save more than 50% energy than high pressure sodium lamp.The lower energy consumption,but better performance of lumen output.


Specification

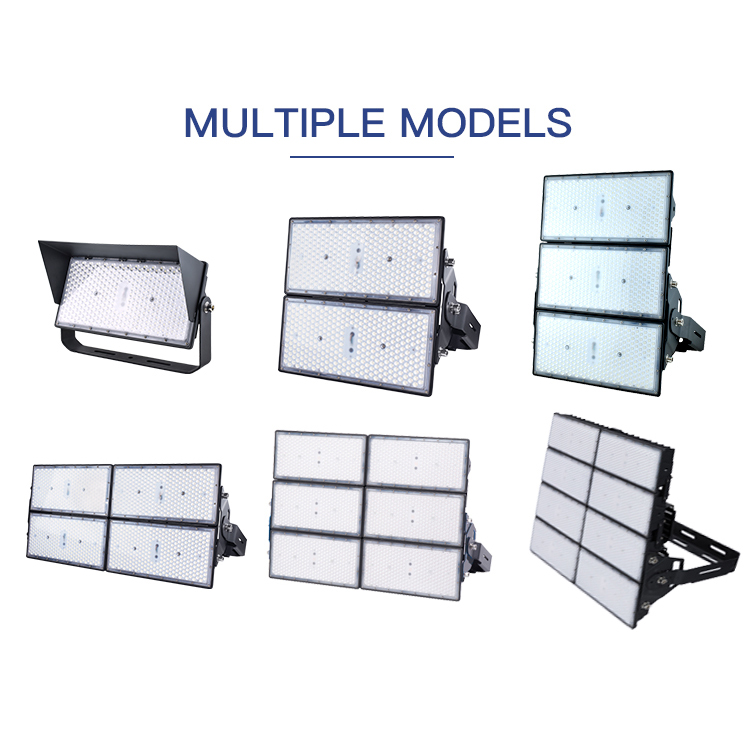

Model No

LCS-HL

LED Power

200w,400w,600w,800w,1000w,1200w,1600w,2000w

Lumen effect

140-150lm/w

Material

Die-casting aluminum+PC lens

CRI

Ra>80

Led Driver

Lecuso isolated driver or Meanwell ELG Driver

Power factor

0.95

Lifetime

50000hours

Input voltage

105v-305v

SPD

20kV SPD standard (40kV optional)

Beam Angle

 20°*20°, 30°*30°, 40°*40°, 60°*60°, 90°*90°, 120°*120°, 60°*120°, Type III, Type V

CCT

2700-6500K

IP Rating

IP66

Warranty

3/5 Years





Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.

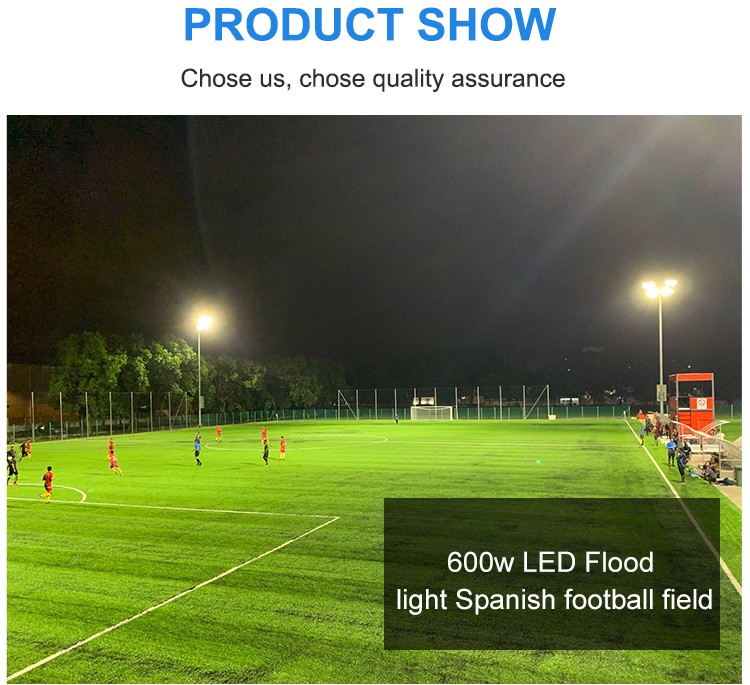

View Cases
