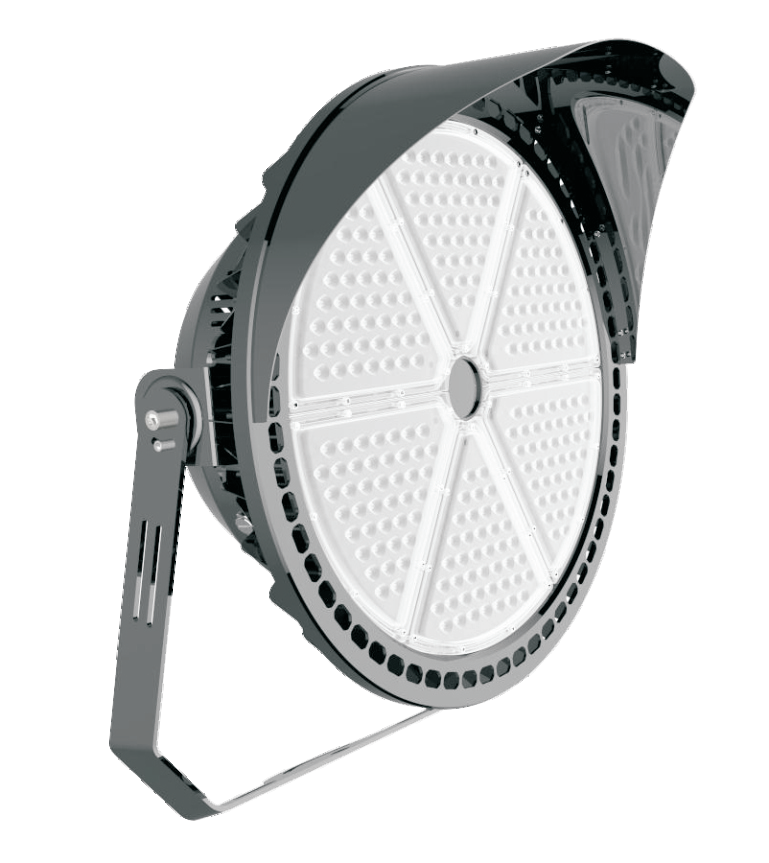

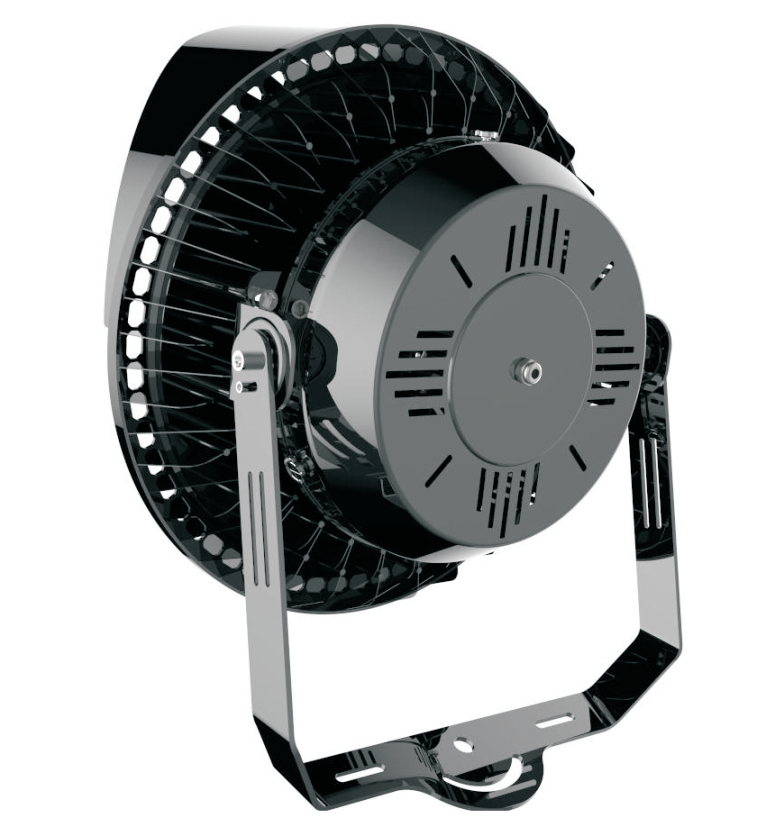

7years warranty 300w 600W 800W 1000W 1200w led flood light spot light
- Power: 200w,400w,600w,800w,1000w,1200w
- Material: Die-casting aluminum+PC lens
- Waterproof Grade: IP66
- Lumens: >150LM/W

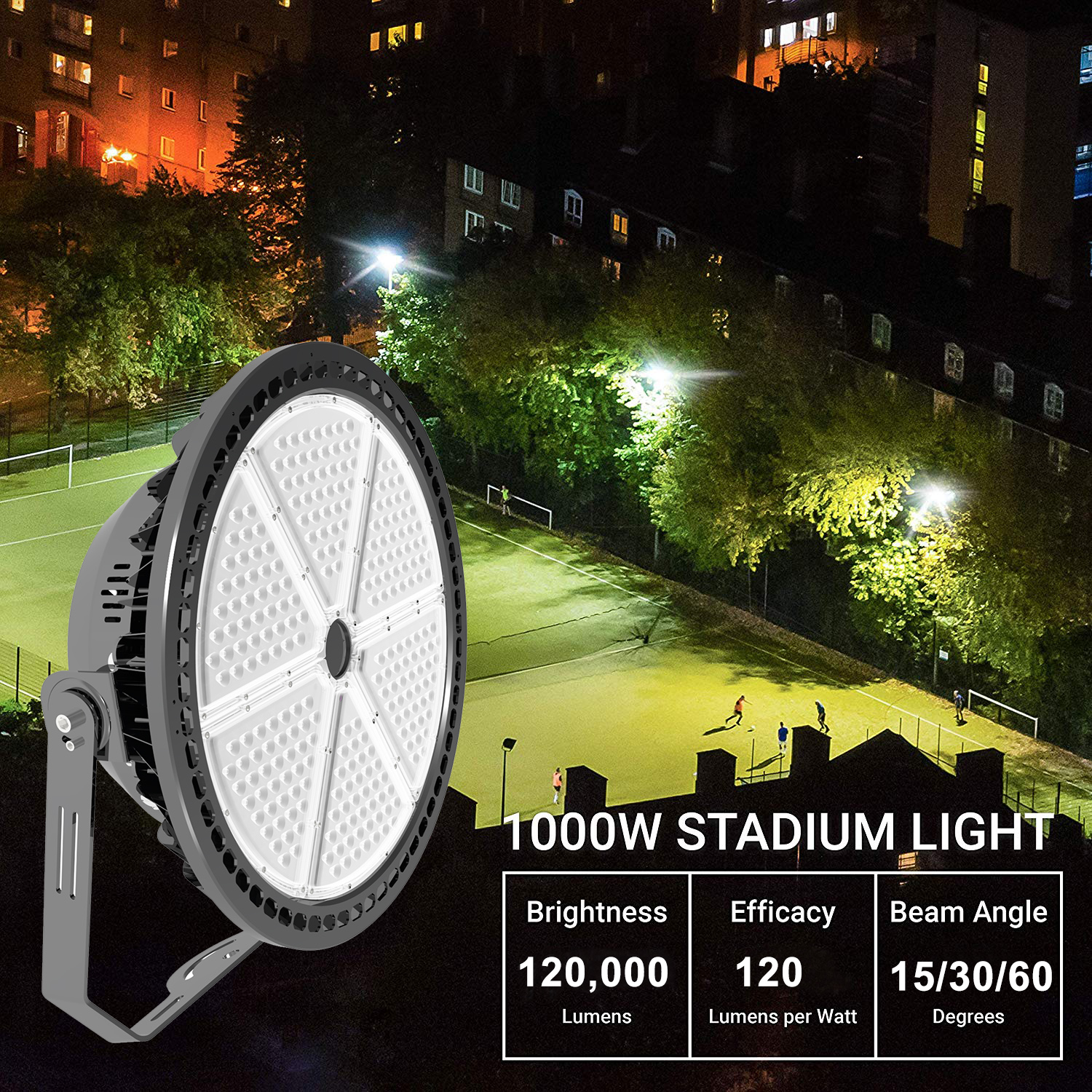

- Suitable for lighting of football fields, squares, stadiums, tunnels, Courtyards,Sea port,road junctions
- CE,ROHS,LM79,LM80,IES,Etc.
- Install Height: 8m-40m Pole
Our Advantages
1 Our high bay lights are available in a variety of wattages from 300W to 1200W, with an impressive light chip efficiency of 160lm/W. This ensures optimal energy utilization and provides bright and efficient lighting. We offer a variety of optical options, including 15°, 30°, 60°, and 60°×120°, that can be tailored to meet your specific needs.

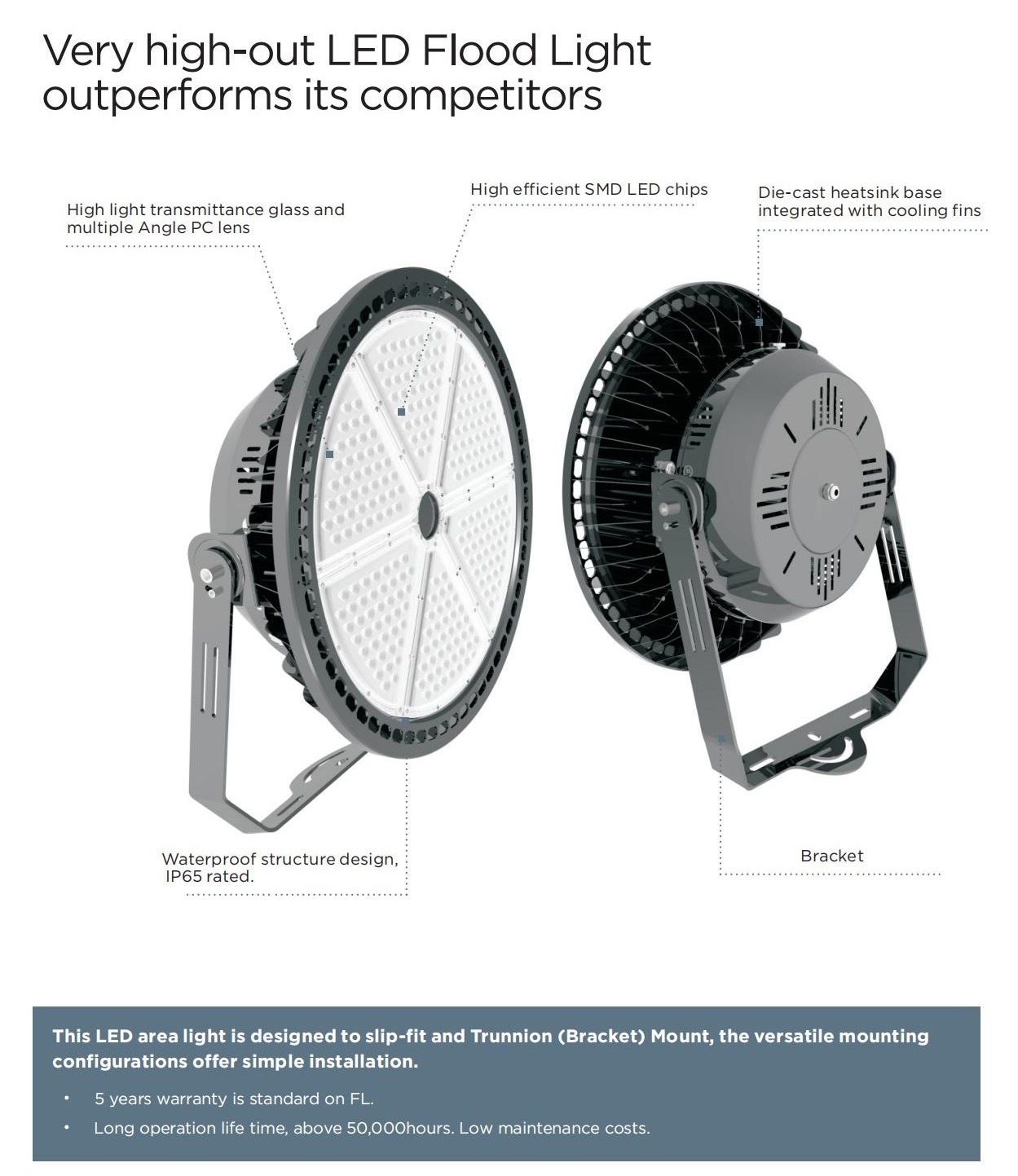

2. Our high bay light adopts high light transmittance and anti-UV frosted polycarbonate lens, which ensures good light distribution and prevents yellowing or damage caused by harmful UV rays. Well-thought-out thermal management design ensures efficient heat dissipation to maximize lamp life.
3. Our high bay lights are crafted from die-cast aluminum with a polyester powder coat finish to withstand outdoor conditions. With IP66/IK10 protection level, they are highly waterproof and impact-resistant, suitable for various outdoor environments. These lights are designed for easy installation and minimal maintenance, saving you time and energy. In addition, they are energy efficient, emit low heat and produce no UV or IR radiation.
4. Compared with incandescent lamps, our high bay lights can save energy significantly. With an 85W floodlight that produces a similar luminous flux to a 500W incandescent, you can reduce energy consumption by approximately 75%. This not only helps reduce electricity bills, but also enables sustainable and energy-efficient lighting solutions.
5. Our high bay lights give priority to environmental protection. The use of solid recording agents ensures that even if broken, there is no risk of contamination to the environment. With a recycling rate of over 99%, these lamps are truly green light sources. By choosing our high bay lights, you can be confident that you are making an environmentally friendly and sustainable lighting choice.

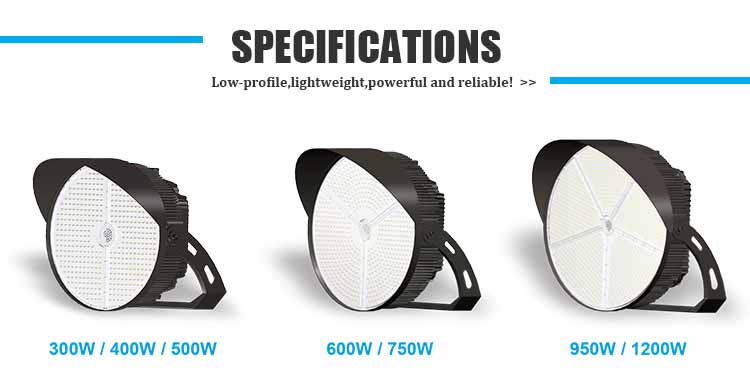

Specification
Specification | |||||||
Model NO. | 3H300 | 3H400 | 3H500 | 3H600 | 3H750 | 3H950 | 3H1200 |
Power | 300W | 400W | 500W | 600W | 750W | 950W | 1200W |
Luminous Flux | 38,486 lm | 50,520 lm | 56,614 lm | 76,819 lm | 84,374 lm | 115,344 lm | 134,087 lm |
Input V oltage | 100-277V /347-480V | 100-277V /347-480V | 100-277V /347-480V | 100-277V /347-480V | 100-277V /347-480V | 100-277V /347-480V | 100-277V /347-480V |
Gross Weight | 13.7kgs / 30.2 lbs | 14kgs / 30.9 lbs | 14.1 kgs / 31.1 lbs | 14.94 kgs / 42.8 lbs | 19.5 kgs / 43 lbs | 27 kgs / 59.5 lbs | 28 kgs / 61.7 lbs |
Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
CRI | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra | ≥70Ra, or ≥90Ra |
Driver Brand | Meanwell | ||||||
Light Distribution / Beam Angle(°) | 20°*20°, 30°*30°, 40°*40°, 60°*60°, 90°*90°, 120°*120°, 60°*120°, Type III, Type V | ||||||
Color Temp. | 3000K/4000K/5000K/5700K/6500K (others available) | ||||||
Dimming Options | 0-10V dimming / Zigbee wireless dimming available | ||||||
Zigbee Control | On/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP). | ||||||
Photocontrol | Twist-lock photocell available | ||||||
SPD | 20kV SPD standard (40kV optional) | ||||||
IP Rating | IP67 | ||||||
Operating Temp. | -40°C- 40°C / -40°F – 104°F | ||||||
Lifespan | >100,000 Hrs (L70 @ 25°C) | ||||||
Warranty | 7-year warranty for 100-277V version, 5-year warranty for 347-480V version | ||||||

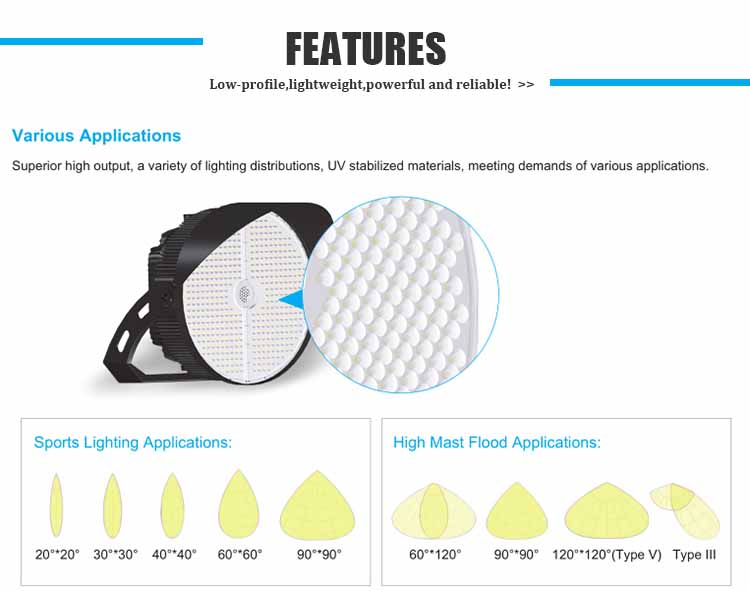

Various ApplicationsSuperior high output, a variety of lighting distributions, UV stabilized materials, meeting demands of various applications.

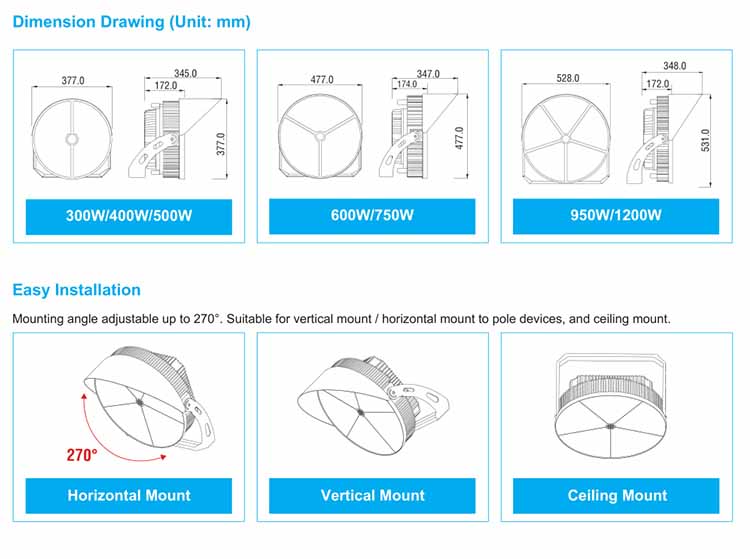

Easy InstallationMounting angle adjustable up to 270°. Suitable for vertical mount / horizontal mount to pole devices, and ceiling mount.

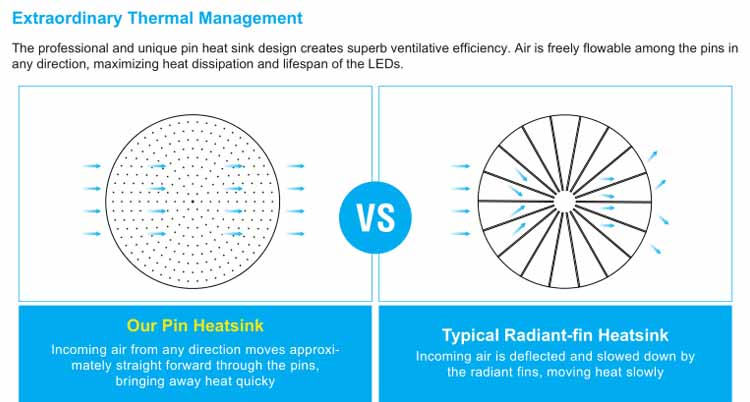

Extraordinary Thermal ManagementThe professional and unique pin heat sink design creates superb ventilative efficiency. Air is freely flowable among the pins inl any direction, maximizing heat dissipation and lifespan of the LEDs.Our Pin HeatsinkIncoming air from any direction moves approximately straight forward through the pins. bringing away heat quicky.Typical Radiant-fin HeatsinkIncoming air is deflected and slowed down bythe radiant fins, moving heat slowly

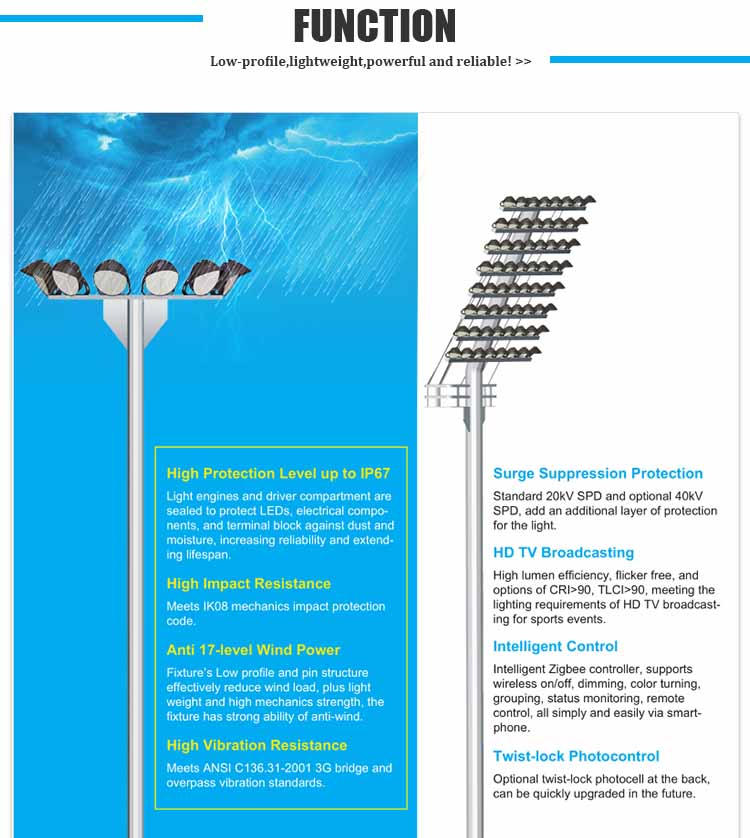

High Protection Level up to IP67Light engines and driver compartment are sealed to protect LEDs, electrical components, and terminal block against dust and moisture, increasing reliability and extending lifespan. High Impact ResistanceMeets IK08 mechanics impact protection codeAnti 17-level Wind PowerFixture's Low profile and pin structure effectively reduce wind load, plus light weight and high mechanics strength, the fixture has strong ability of anti-windHigh Vibration Resistance Meets ANSI C136.31-2001 3G bridge and overpass vibration standards.
Surge Suppression ProtectionStandard 20kV SPD and optional 40kV SPD, add an additional layer of protection for the light.HD TV BroadcastingHigh lumen efficiency, flicker free, and options of CRI>90, TLCI>90, meeting the lighting requirements of HD TV broadcasting for sports events.Intelligent ControlIntelligent Zigbee controller, supports wireless on/off, dimming, color turning. grouping, status monitoring, remote control, all simply and easily via smartphone.Twist-lock PhotocontrolOptional twist-lock photocell at the back, can be quickly upgraded in the future.

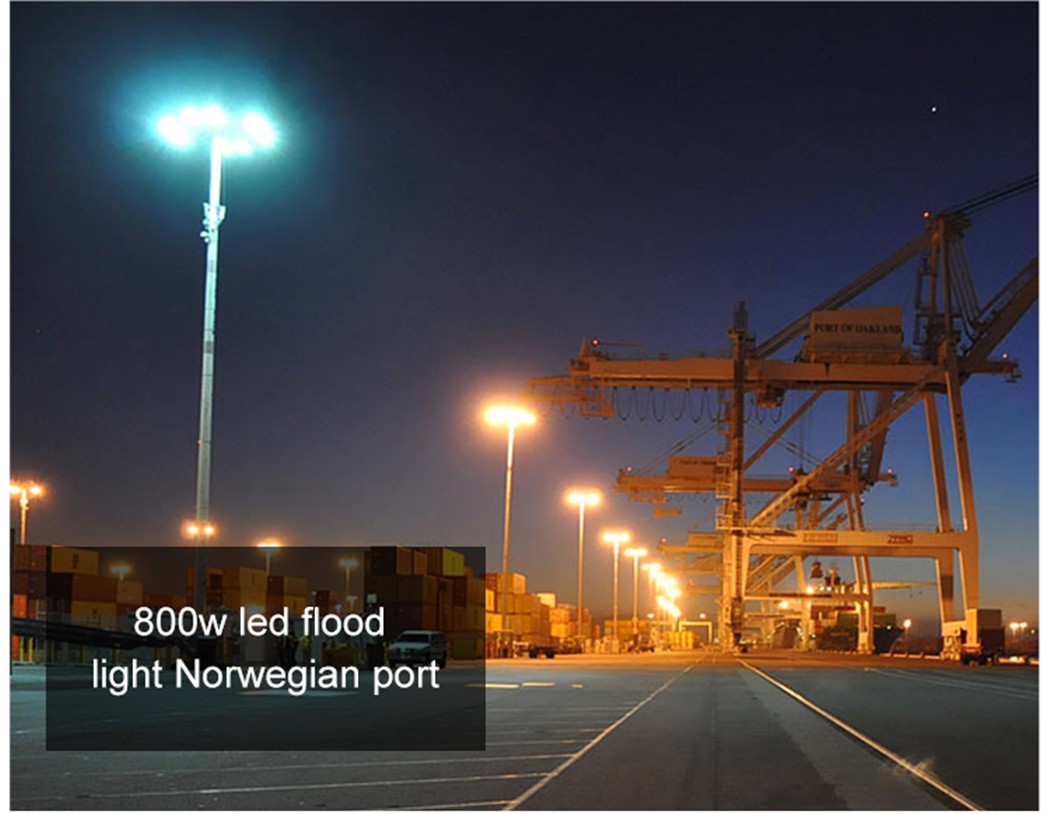

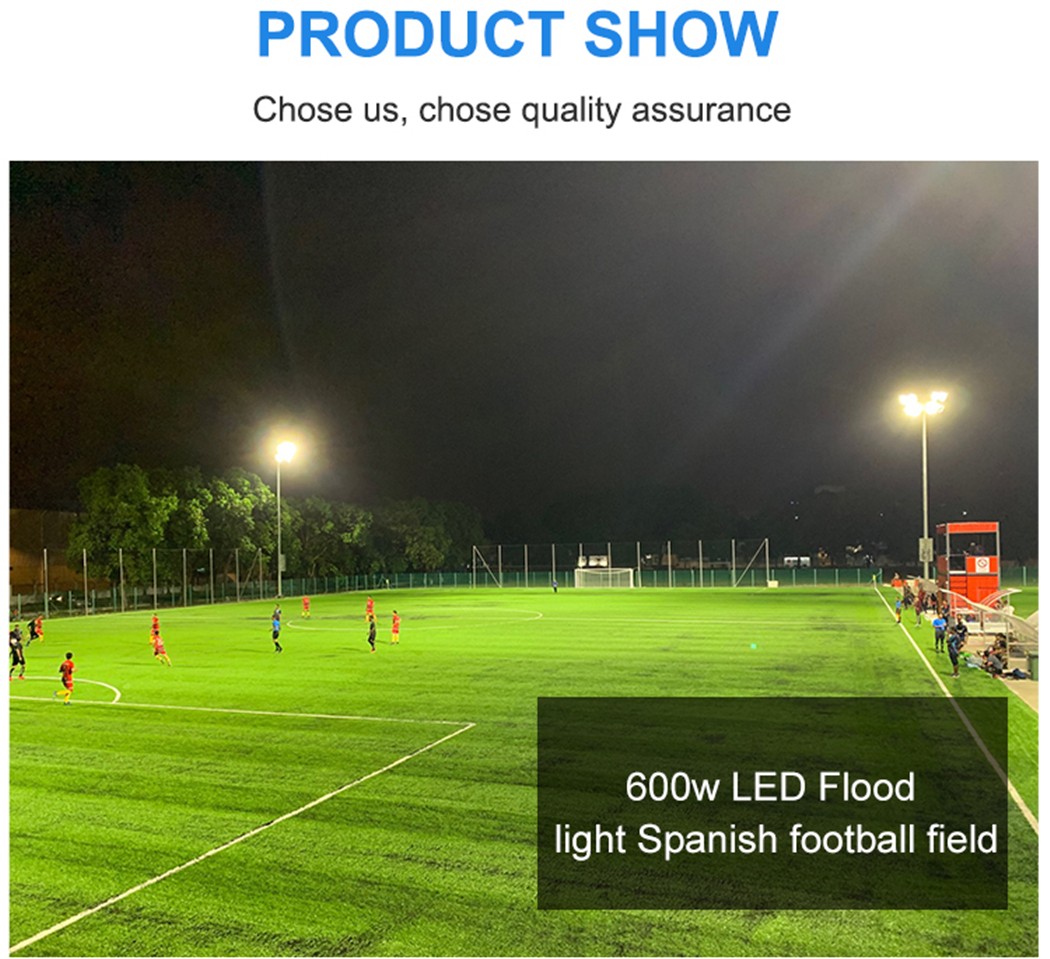

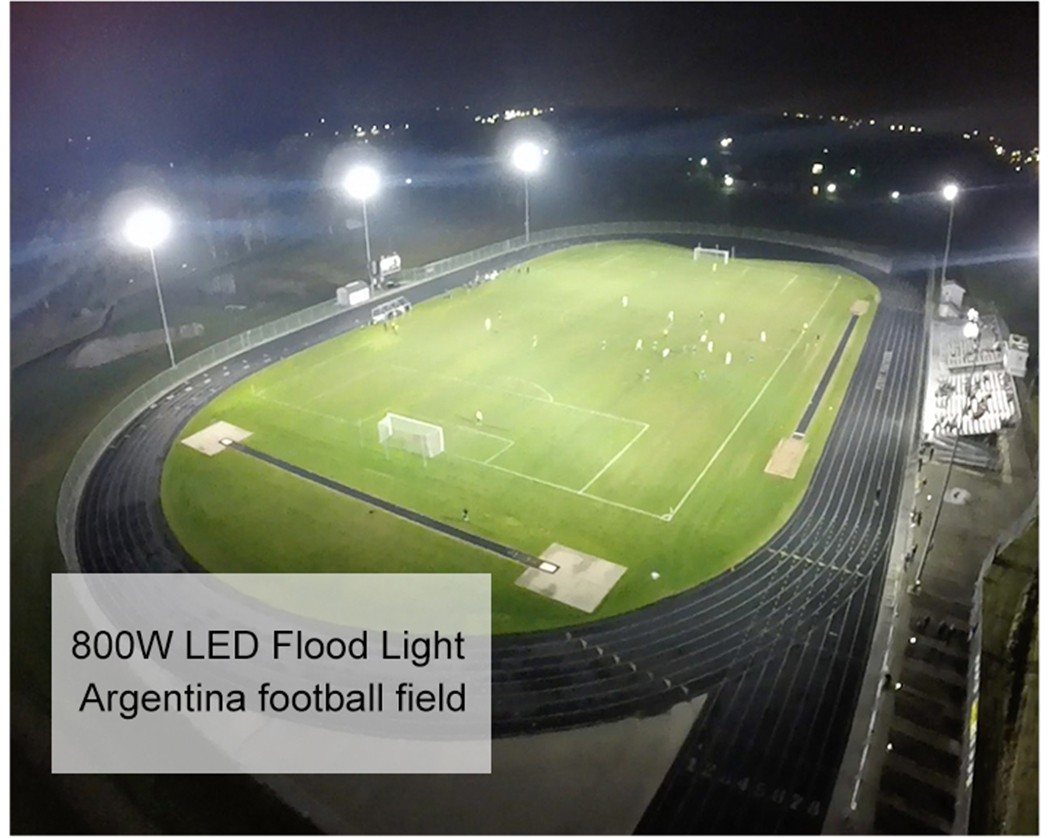

PROJECT CASE
