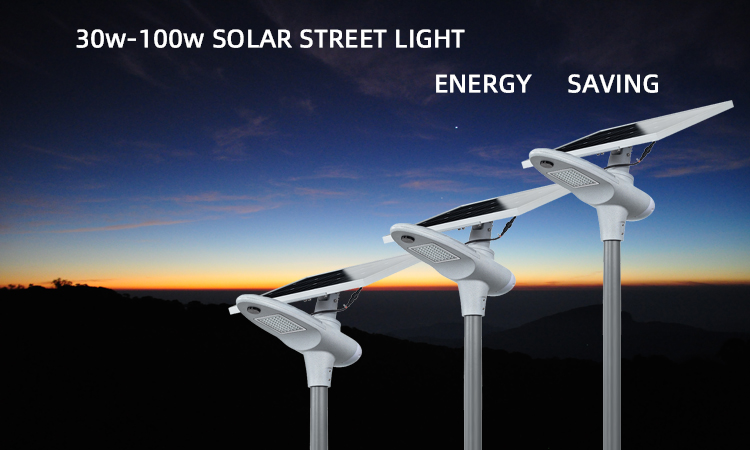

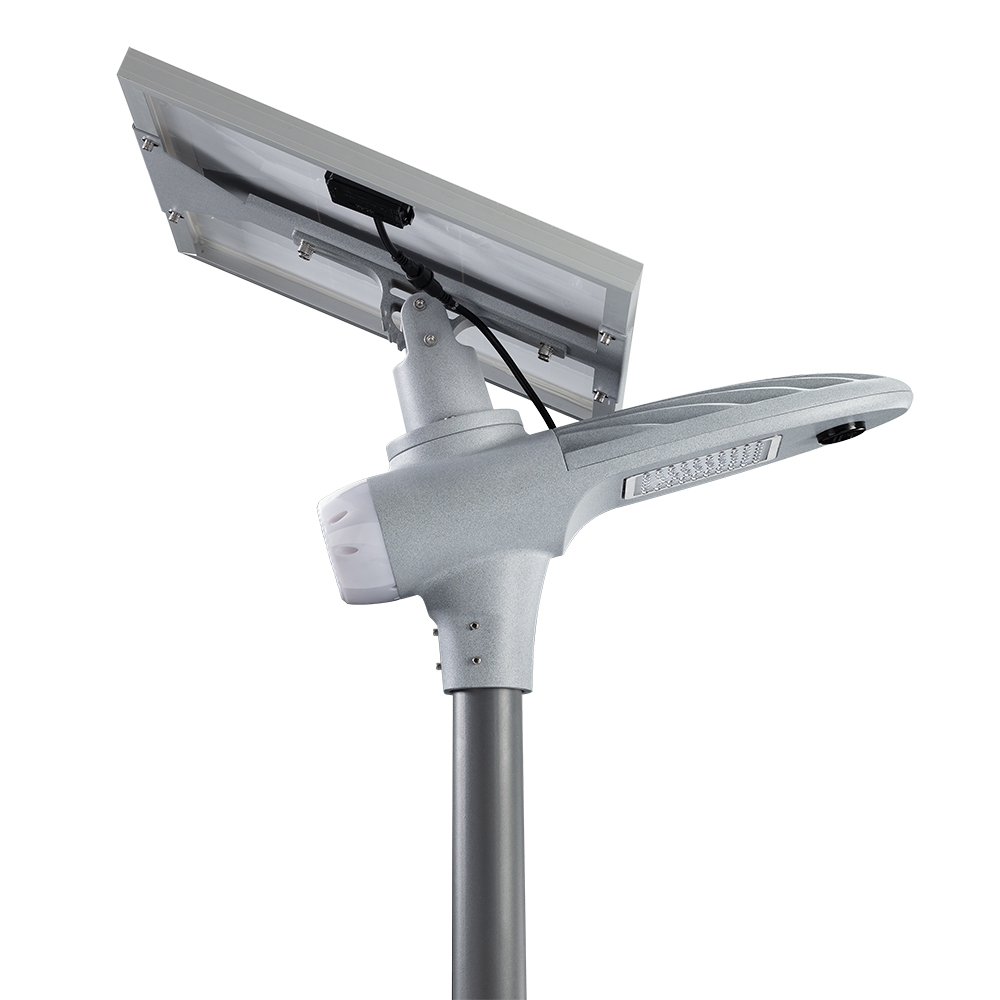

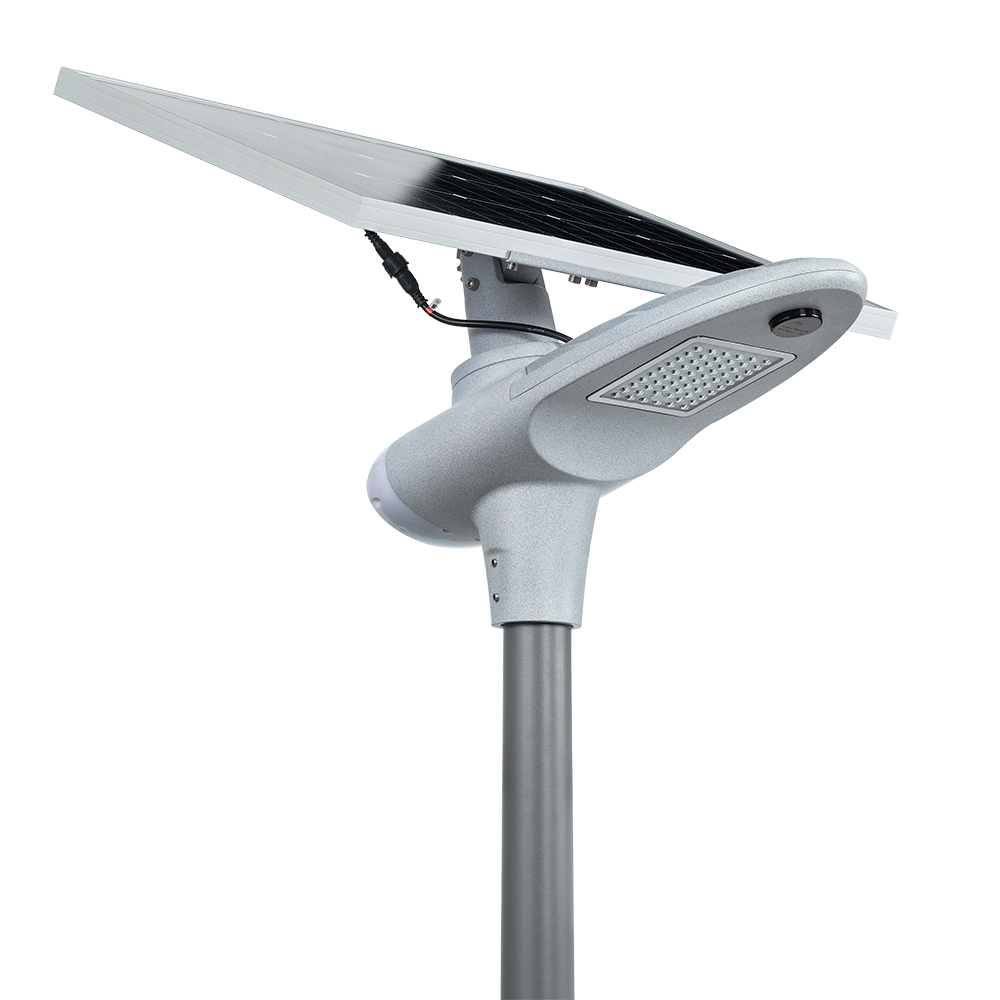

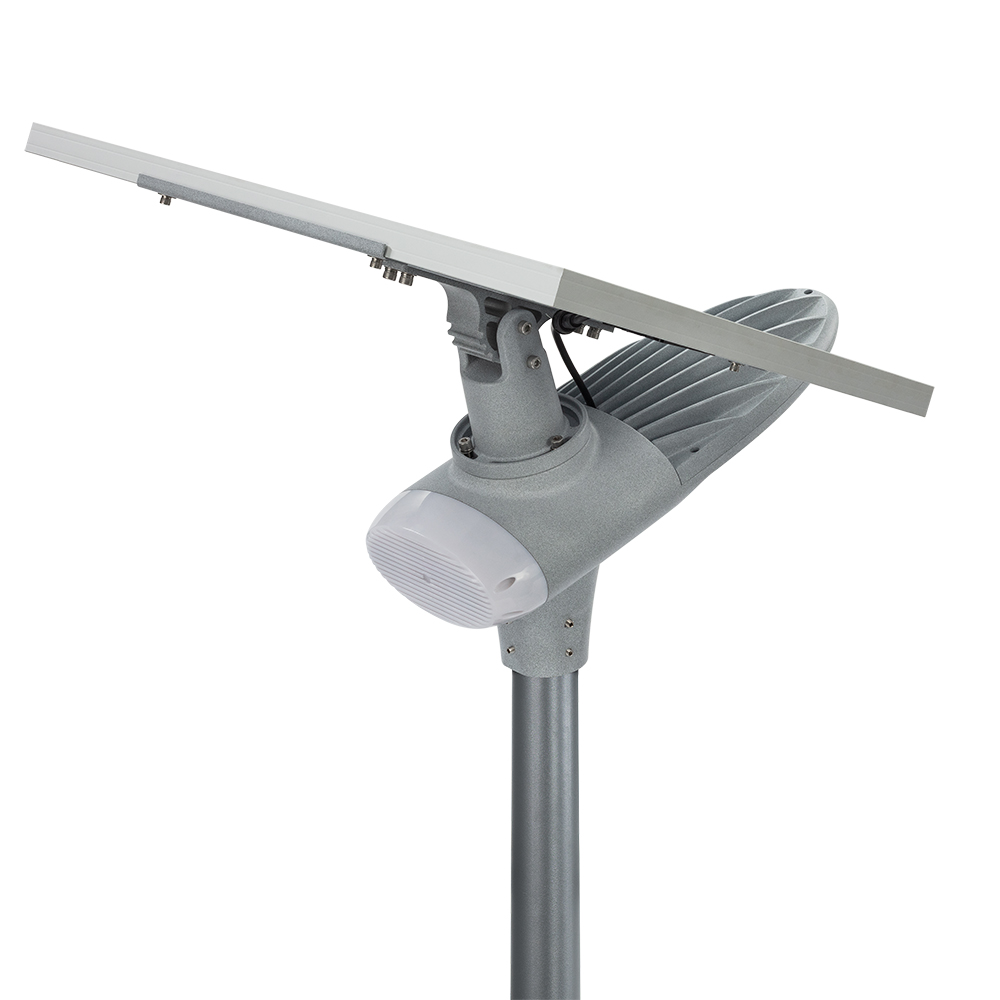

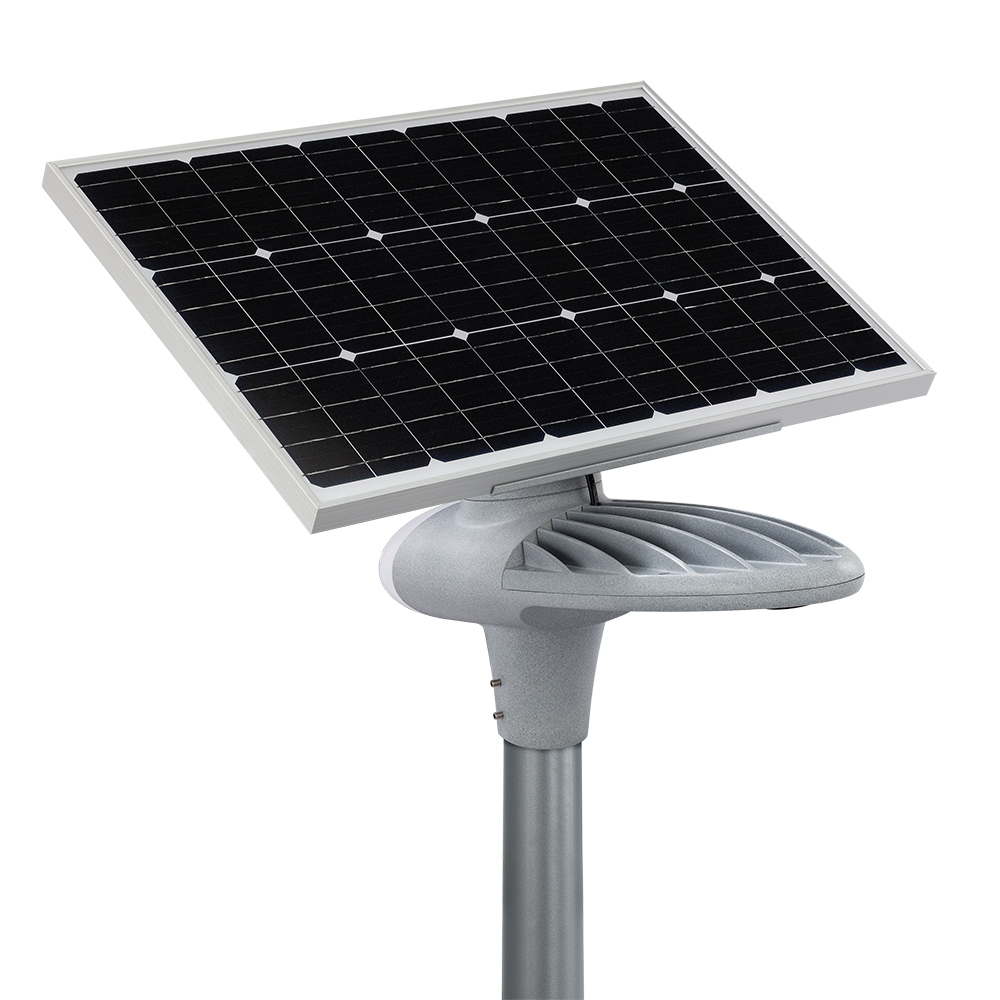

HX Series 40w 60w Semi-split Solar Street Light

SEND INQUITY
HX Series 40w 60w Semi-split Solar Street Light
HX Series 40w 60w Semi-split Solar Street Light
HX Series 40w 60w Semi-split Solar Street Light
HX Series 40w 60w Semi-split Solar Street Light

Quick Information
  • Power :40W 60W 80W 100W 120W
  • 3030 LED chip: 40PCS/60PCS
  • Luminous Flux: 100LM
  • LiFePO4 Battery: 12.8v 24AH-64AH
  • Mono Solar Panel :18V 50W-160W
  • Install height :4-10M

Our Advantages

1. The solar panel of this product adopts a flexible and adjustable angle design, which can absorb more sunlight according to different installation positions. This feature ensures that the solar energy is fully utilized, maximizing the efficiency of the product. In addition, the high wind resistance makes it ideal for various weather conditions.

2. Our products include RGB tail lights to add a touch of beauty to the street. Capable of switching between 6 different colors, these taillights create an attractive and vibrant ambiance that enhances the overall look.

3. The battery replacement process is very simple and convenient. Just protect the back cover of the light pole, and you can easily take out the battery box without removing the entire light pole cover. This simplifies the battery replacement process and saves time and effort.

4. Our unique remote control design can realize seamless control of the product. With the ability to choose 4 different working modes, you can easily change the lighting mode according to the environment and preference. Remote control gives you flexibility and convenience.

5. Our products provide a wide lighting angle of 210*70° to ensure good lighting of the area. With additional features like night sensor, PIR motion sensor and remote control, you have full control over lighting conditions, making it highly customizable to suit your needs.

6. The product is equipped with a large-capacity deep-cycle lithium battery with a longer service life. This ensures a longer product life and provides a reliable light source.

7. This product is a patented design, beautiful in appearance, and is designed in one piece with high-quality aluminum alloy shell. This not only adds to the overall aesthetics, but also ensures the durability and longevity of the product.

Specification

specifications

Power

40w

60w

80w

100w

120w

3030 LED chip

40PCS

40PCS

60PCS

60PCS

60PCS

Luminous Flux

4000LM

6000LM

8000LM

10000LM

12000LM

LiFePO4 Battery

12.8v 24AH

12.8v 36AH

12.8V 42AH

12.8V 50AH

12.8V 64AH

Mono Solar Panel

18V 50W

18V 80W

18V 100W

18V 130W

18V 160W

Install height

4-5M

6-7M

7-8M

8-10M

9-12M

Solar charging time

5-6 hours

Material

Aluminum Alloy+ PMMA

Work temperature

 -25℃ to 65℃

Warranty

3 Years

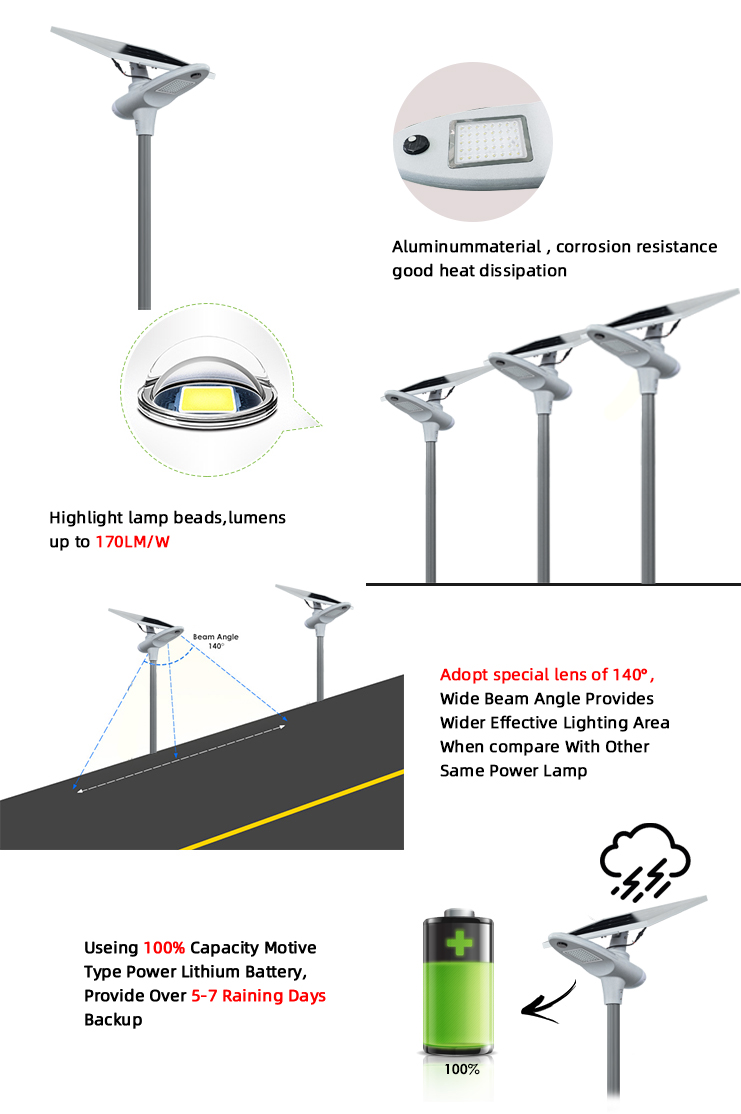

Aluminum material,corrosion resistance good heat dissipation

High light lamp beads,lumens up to 170LM/W

Adopt special lens of 140°,Wide Beam Angle Provides Wider Effective Lighting AreaWhen compare With Other Same Power Lamp

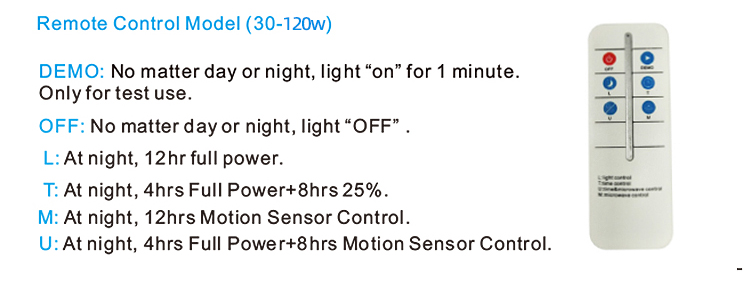

Useing Capacity Motive Type Power Lithium Battery,Provide Over 5-7 Raining DaysBackup7.jpgRemote Control Model (30-120w)

DEMO: No matter day or night, light "on" for 1 minute.Only for test use.

OFF: No matter day or night, light "OFF”.

L: At night, 12hr full power.

T: At night, 4hrs Full Power+8hrs 25%.

M: At night, 12hrs Motion Sensor Control.

U:At night, 4hrs Full Power+8hrs Motion Sensor Control.

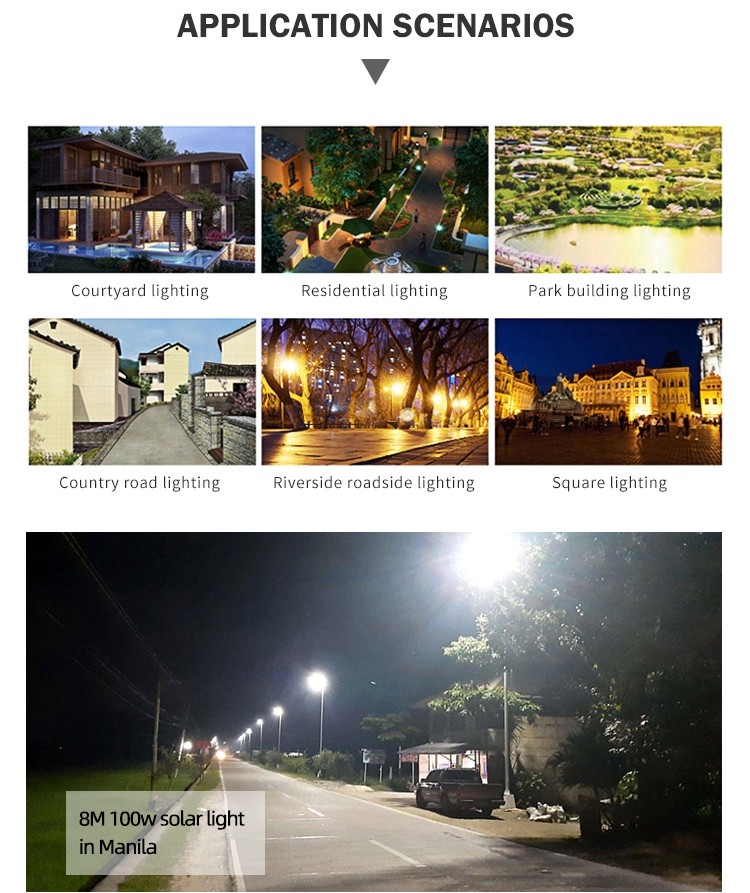

Application

Street Lighting, Road Lighting, Experssway Lighting, Country Road Lighting.

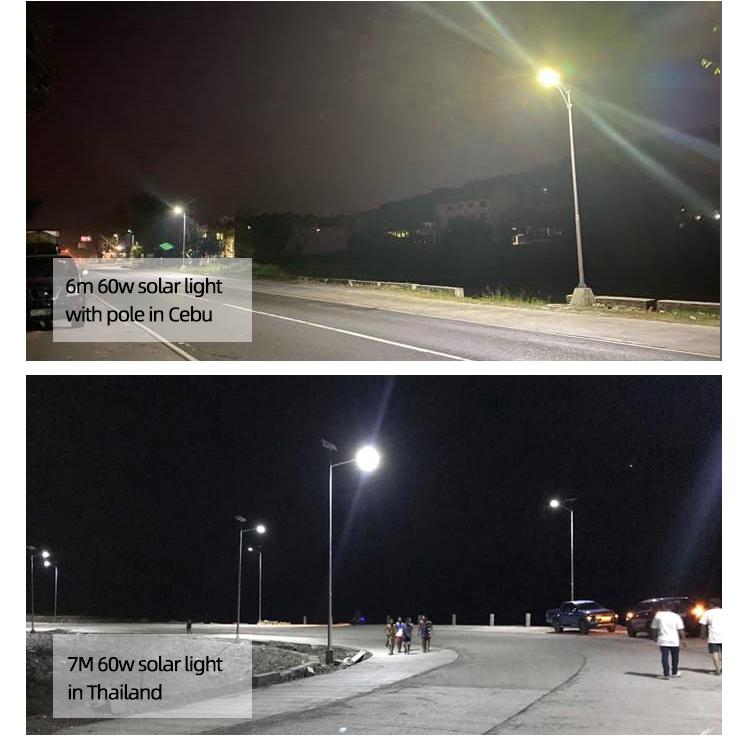

View Cases
