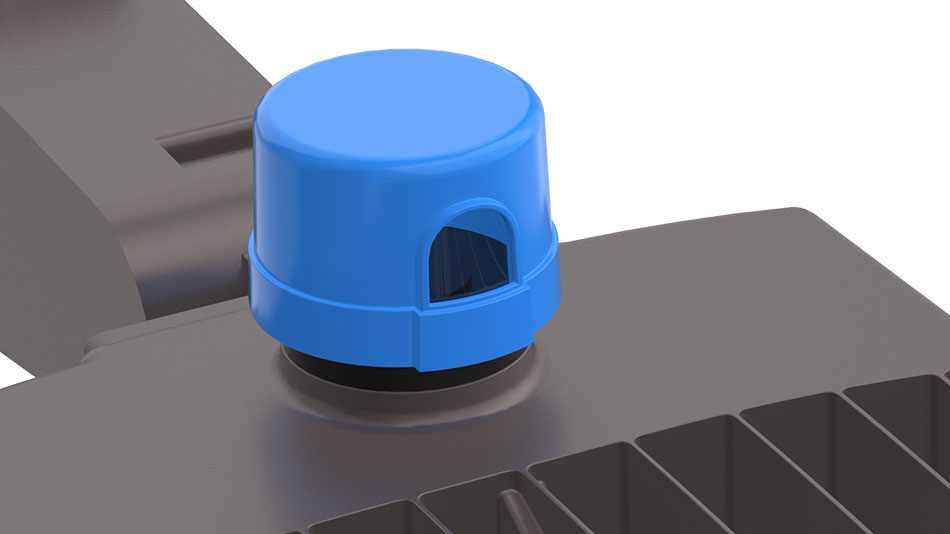

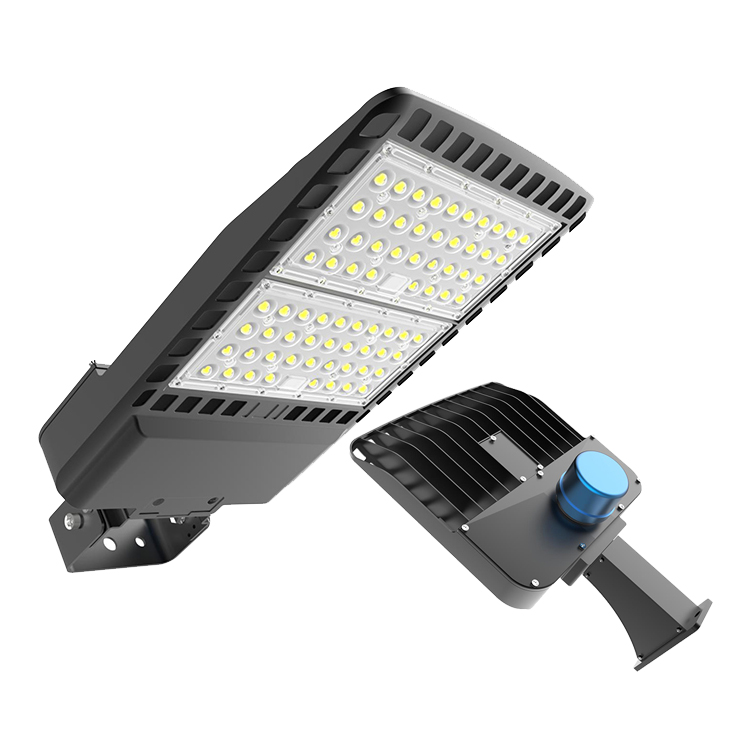

The LCS-HX LED shoebox floodlight lighting fixture appears to be a versatile and practical option for both commercial and residential lighting needs. It is designed for areas that require a substantial amount of light, such as parking lots, driveways, and outdoor courts like basketball, tennis, and volleyball areas. The fixture comes with a dusk to dawn function that can be activated when using the optional twist lock photocell. This function automatically turns the light on at dusk and off at dawn, eliminating the need for manual switching and providing added convenience to the user.

Features

Easy to install and operate

Energy saving, long lifespan

Light is soft and uniform

safe to the eyes Instant start, no flickering, no humming

Green and eco-friendly without mercury

The LED LCS-HX Electronics General Area LED Light is a sturdy lighting solution available in 60, 100, 200, and 250-watt models. It operates on a voltage range of 120-277VAC and has an impressive lifespan of over 70,000+ hours. The fixture is dimmable via a 7-pin receptacle, allowing for adjustable lighting levels.

To ensure durability, the fixture is constructed with a die-cast aluminum housing that is coated with polyester powder paint, providing superior protection against environmental elements. Buyers have the flexibility to choose from various mounting options and beam configurations based on their specific requirements.

The LCS-HX LED light is designed to meet the high standards of modern commercial businesses and projects. It features LED drivers and electrical components that are hard mounted to the die-cast housing, optimizing heat sinking and operational efficiency. It is compatible with input voltages ranging from 120V to 277V AC. The 100-watt unit emits a bright light output of 17,000 lumens with an impressive efficacy of 170 lumens per watt. The fixture also has a high Color Rendering Index (CRI) rating above 80, ensuring accurate and vibrant color representation.

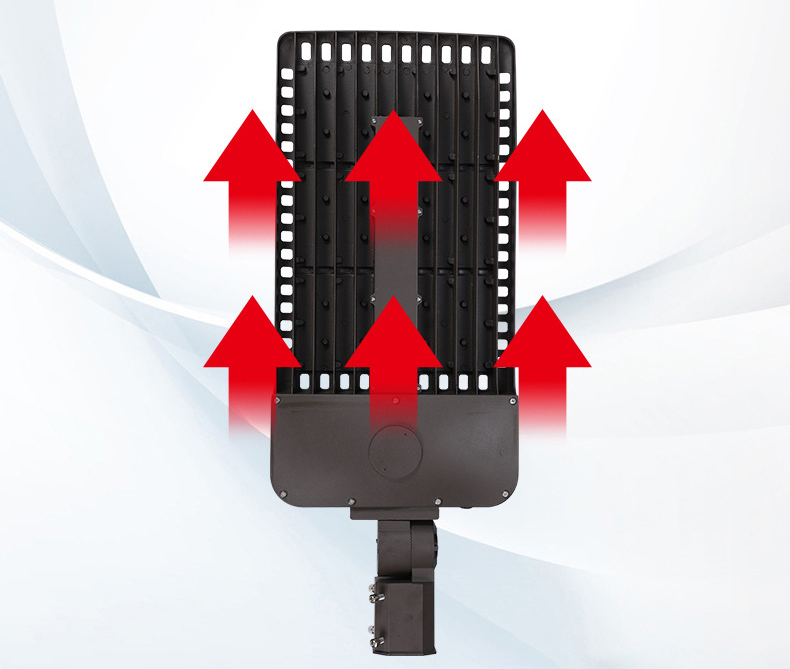

With its extended lifespan of over 70,000+ hours, the General Area LED Light incorporates an active heat dissipating system that provides even heat distribution and helps to maintain a lower temperature rise. The design includes aluminum fins that aid in heat dispersion, promoting a long and reliable LED life.

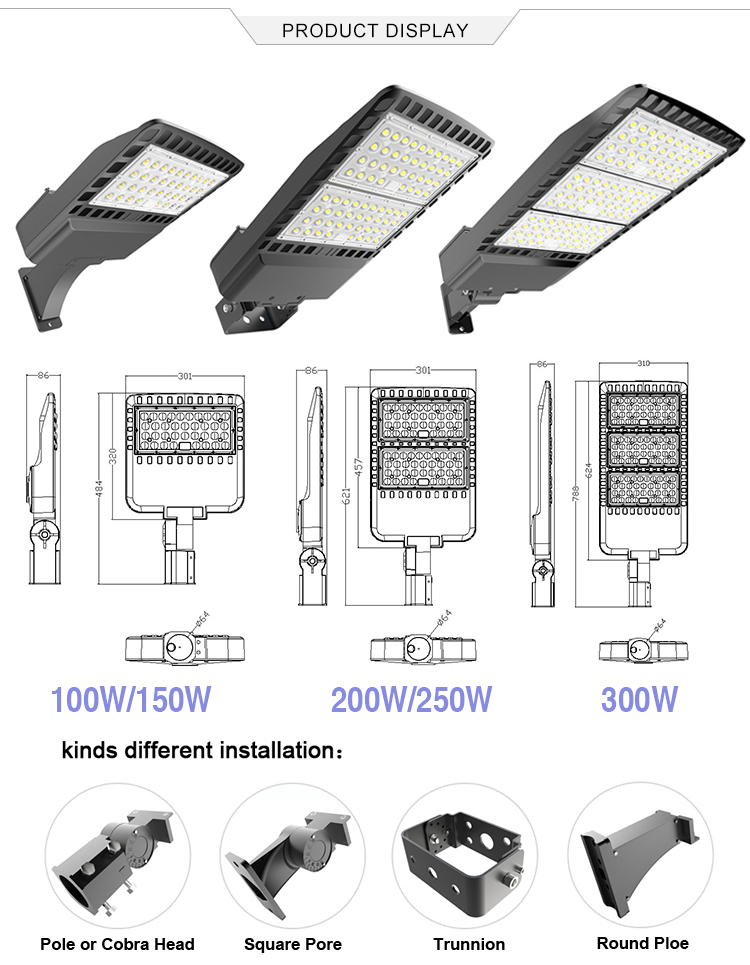

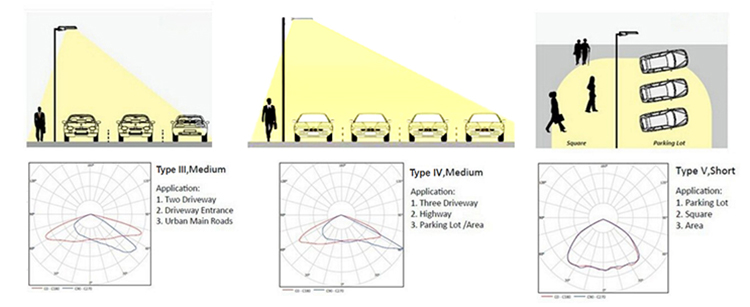

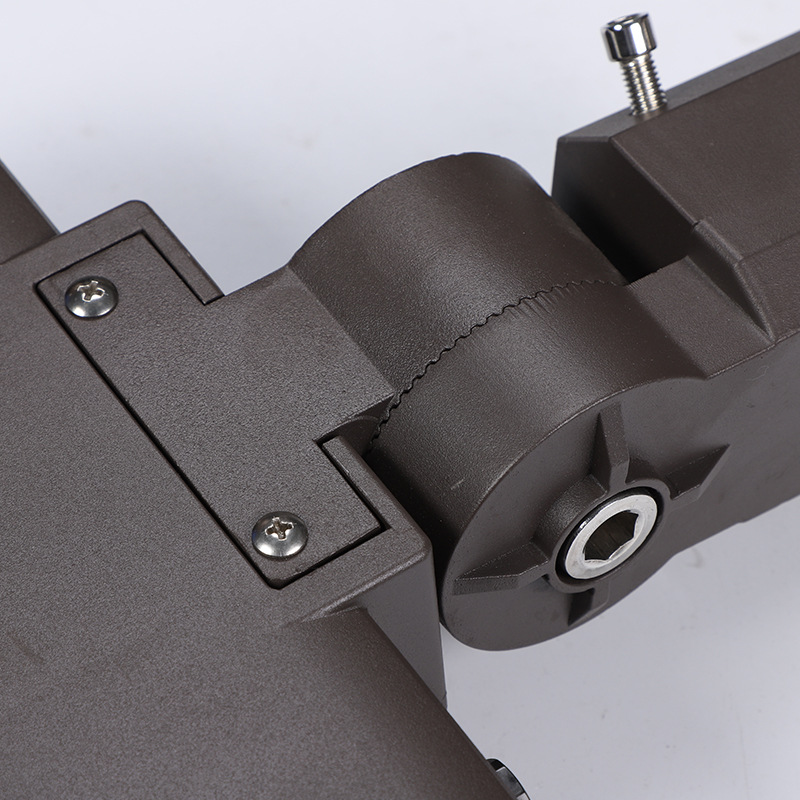

The fixture offers a wide range of beam configurations to suit different lighting needs, including options such as 10°, 30°, 60°, 110°, Down Light, Type II M, Type III M, Type IV M, Type V S, Tunnel, or Wide Flood. For mounting, options like Square Pole, Round Pole, Pole Top, and Trunnion are available. The cast aluminum arm includes bolt guides, facilitating easy positioning during installation to the pole. The housing, square pole arm, and round pole adapter come conveniently packaged in a single carton, ensuring a contractor-friendly installation process.

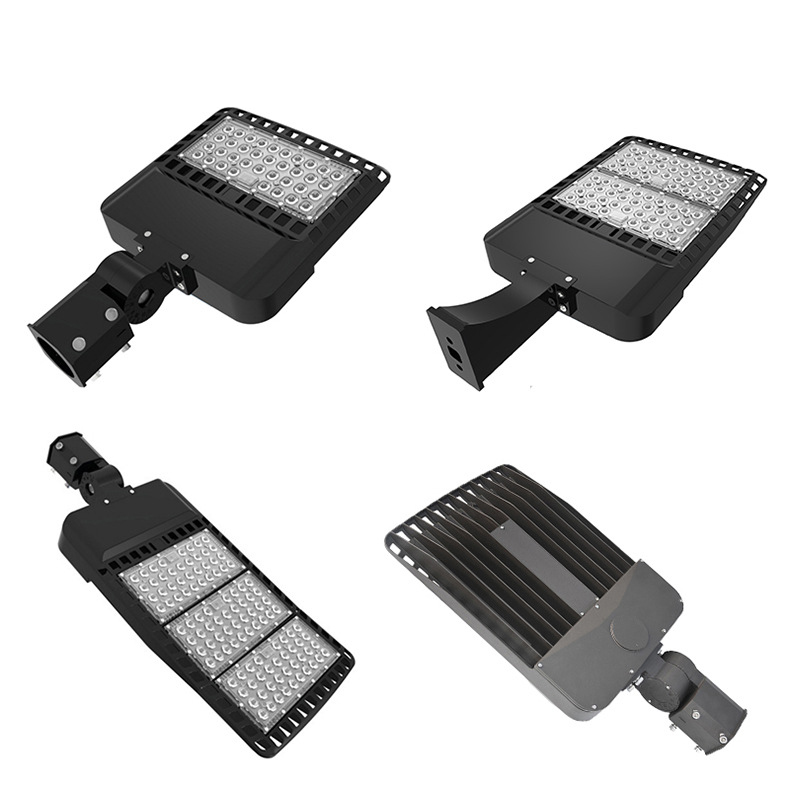

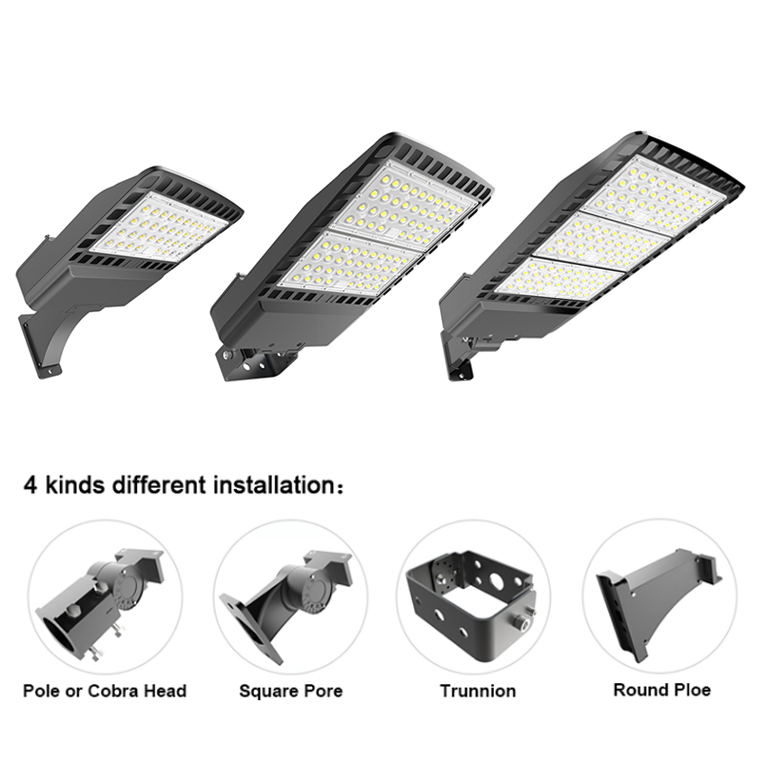

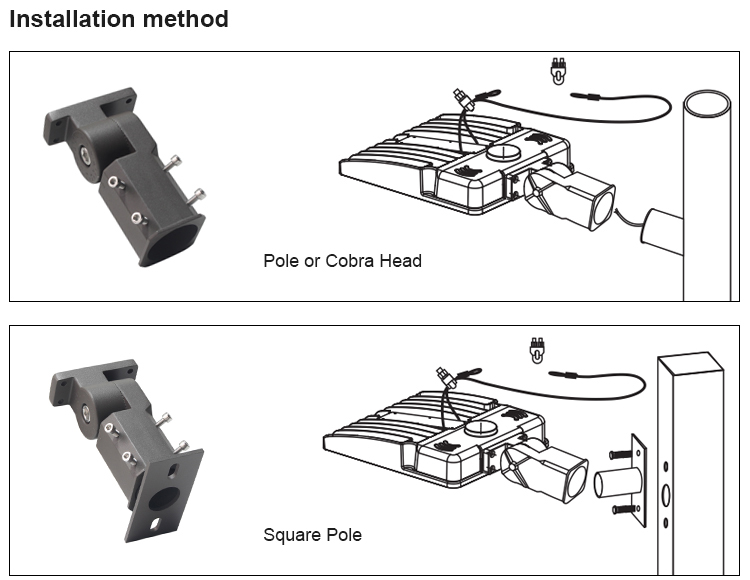

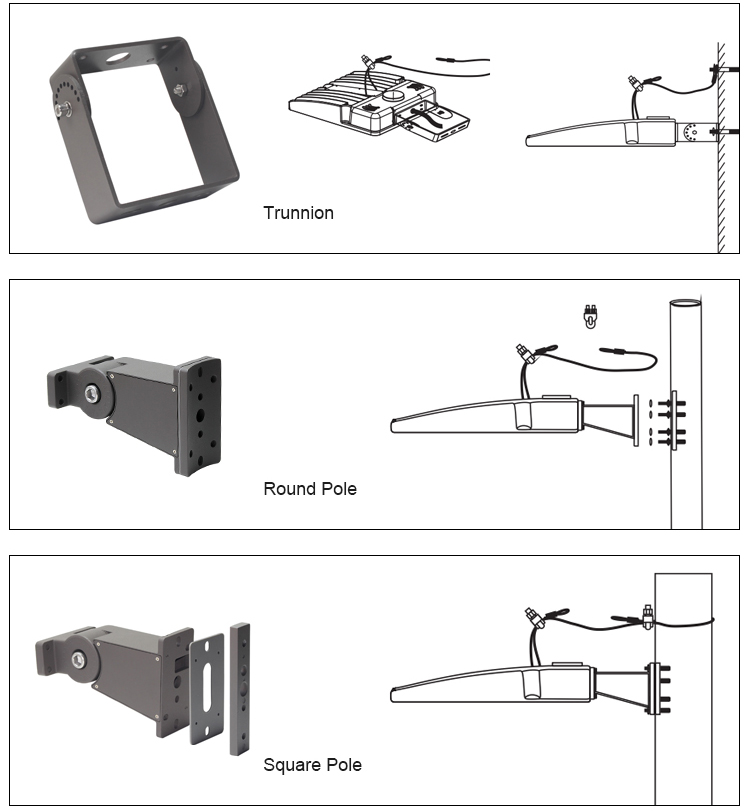

The mounting options provide versatility for different installation scenarios. The round pole mount is suitable for 3-5" OD round poles and is installed directly to the side of the pole using a U bolt mounting system. The square pole mount works with 3" x 3" to 5" x 5" square poles and can also be used as a flat surface or wall mount bracket for interior or exterior walls. The pole top/tennion mount is adjustable for angle and can be secured to 1.5-2" OD poles (with a nominal OD up to 2-3/8"). The trunnion/U-bracket mount offers the most flexibility in terms of adjustment, allowing operators to rotate the mounting bracket to achieve the desired orientation and angle for light distribution. This mount is commonly used for walls, flat surfaces, mast heads, and square tube poles. The cast aluminum arm with bolt guides further facilitates easy positioning of the fixture during installation.

Overall, the LCS-HX LED shoebox floodlight lighting fixture combines durability, versatility, and energy efficiency to provide a reliable lighting solution for various commercial and residential applications.
