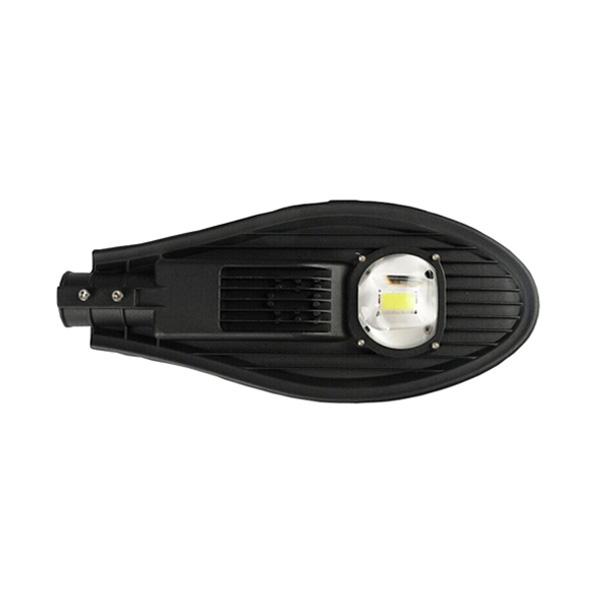

COB LED Street Light(SLM2)
SLM2 series of LED street lights is a classic LED lamp with an integral die-cast aluminum shell and COB integrated lamp beads.
- Power:30W-200W
- Power:30W-200W
- Luminous efficiency:100-110lm/w
- Luminous efficiency:100-110lm/w
- Color temperature: 3000-4000K/5000-6500K
- Working voltage: AC85-265V
This series of products has been welcomed by domestic and foreign customers for many years due to its high cost performance. The lamp bead adopts SMD and integrated lens, which has stronger light-gathering performance. Using imported LED chips and high-quality LED drive power, the lighting effect and stability are guaranteed.
Our Advantages
Special assembling technology of heat dissipation
A. For led
On the housing, before putting the cob led, we will polish the place where to put the led. The reason is polishing can remove the paints. (the paints will affect the heat-conduction from the cob led to the housing.)
B. Perfect way to spread the thermal-conductive grease.
We use special way to make sure the grease(paste) very uniformly on the contact surface of led and housing. When the cob led is put on the housing, the grease(paste) will be spread very uniformly on the contact surface, so the heat can be conducted very well.

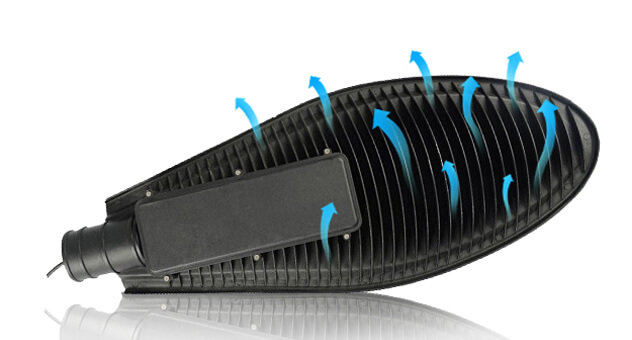

Aviation Aluminum Lamp Body

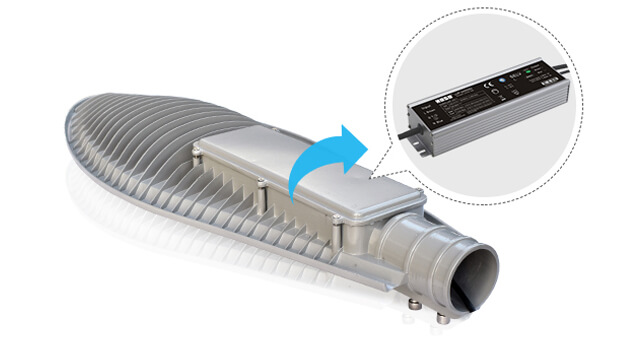

Intelligent IC Constant Current Driver

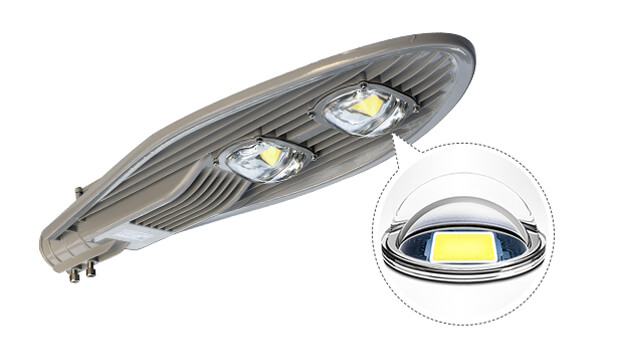

High Lumens

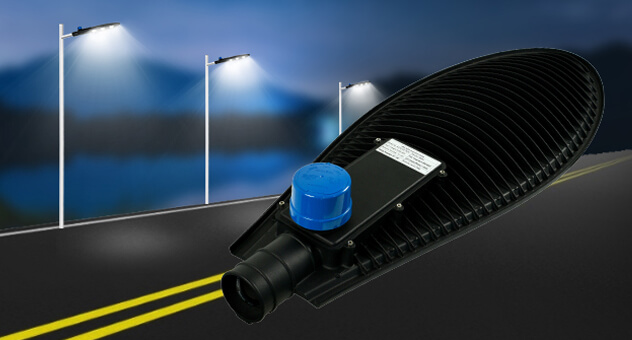

Optional Light Control Function
Specification
| Power | 30W | 50W | 80W | 100W | 120W | 150W |
| LED chips(PHILIPS/BRIDEGELUX) | 1 | 1 | 1 | 2 | 3 | 3 |
| Luminous efficiency | 2550-2700lm | 4250-4500lm | 6800-7200lm | 8500-9000lm | 10200-10800lm | 12750-13500lm |
| Voltage | AC85-265V | |||||
| PF | ≥0.95 | |||||
| CRI | Ra>80 | |||||
| Color temperature | 3000-6500K | |||||
| Bean angle | horizontal >140°, vertical >70° | |||||
| Working temperature | -30℃ ~ + 50℃ | |||||
| Working humidity | <85%RH | |||||
| Guard level | Ip66 | |||||
| Warranty | 3 year | |||||
Packing & Delivery
