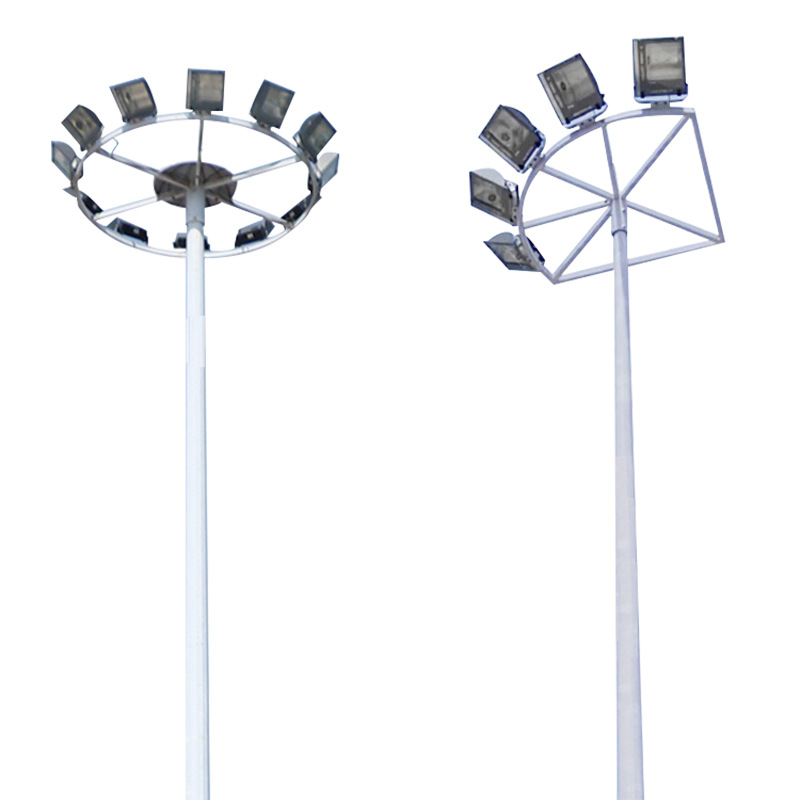

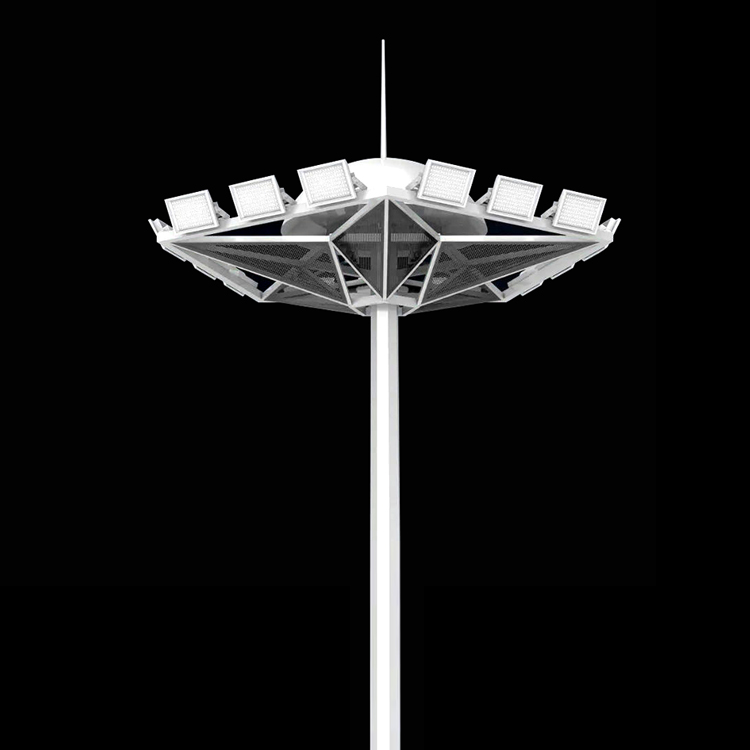

12M 15M 20M 25M 30M 35M 40M Automatic lift High mast flood stadium light pole
- Height of high mast light:15-40m height
- Surface treatment:Hot dip Galvanized and Powder coating
- Material:Q235,Q345,Q460,GR50,GR65
- Application:Highway, Toll gate, Port(marina), Court, Parking lot, Amenity, Plaza, Airport
- LED flood Light Power:150w-2000W
- Long warranty:20 years for high mast light pole
- Lighting solutions service:Lighting and circuitry design, Project Installation
Our Advantages
A high mast light pole is a modern lighting device that consists of a tall steel column-shaped pole with a height of 15 meters and a high-power combined light frame. It includes lamps, internal lamps, poles, and basic parts. The pole is designed for easy maintenance and features an automatic lifting system operated by an electric motor.Lifting style high mast light pole are safer and easier to maintain than climbing ladder high mast light poles. The style of the lamps can be customized based on user requirements, surrounding environment, and lighting needs.
The internal lamps of the high mast light pole typically consist of floodlights and spotlights. The light source options include LED or high-pressure sodium lamps, which can provide illumination with a radius of up to 80 meters. The pole body is generally a single-body structure made of polygonal-shaped steel plates. To ensure durability and longevity, the light poles undergo a hot-dip galvanization process and are powder-coated. This treatment extends their lifespan to over 20 years, making them more economical compared to aluminum or stainless steel alternatives.
For the light source, you have the option to choose between 200W-2000W high-voltage sodium lamps, LED lamps, or metal halide lamps. The rated voltage and frequency are typically 220V (±10%)/380V, 50Hz/60Hz.

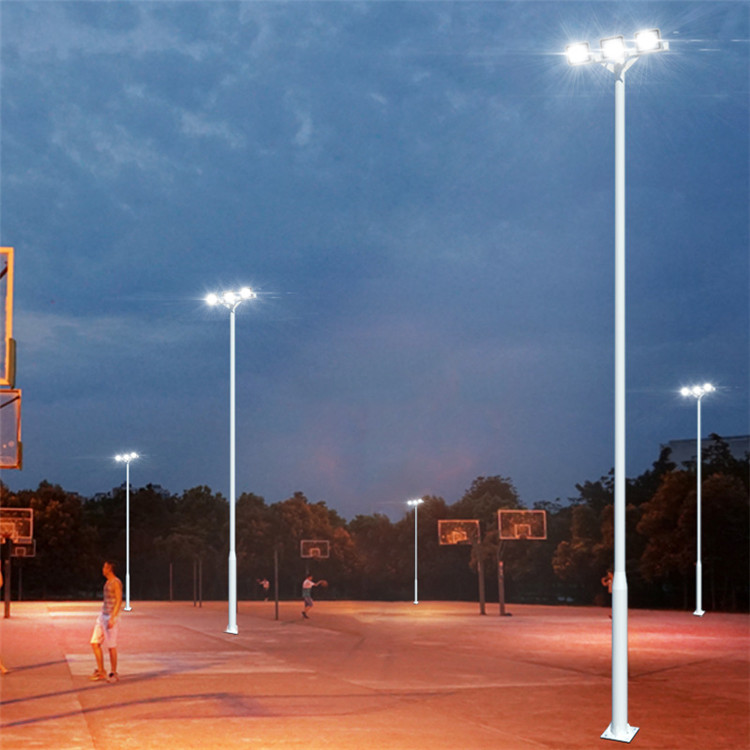

High mast light poles find applications in various locations such as city squares, stations, wharves, freight yards, roads, sports venues, and overpasses. They are designed to provide efficient and powerful lighting in these areas.
One of the advantages of these high mast light poles is their environmental friendliness. They are free of lead, mercury, fragile glass, and other environmentally harmful materials, making them a sustainable lighting solution.
Additionally, these high mast light poles offer significant energy-saving benefits, with electricity savings of more than 75% compared to conventional sodium lights. This energy efficiency contributes to cost savings and reduces the overall environmental impact.

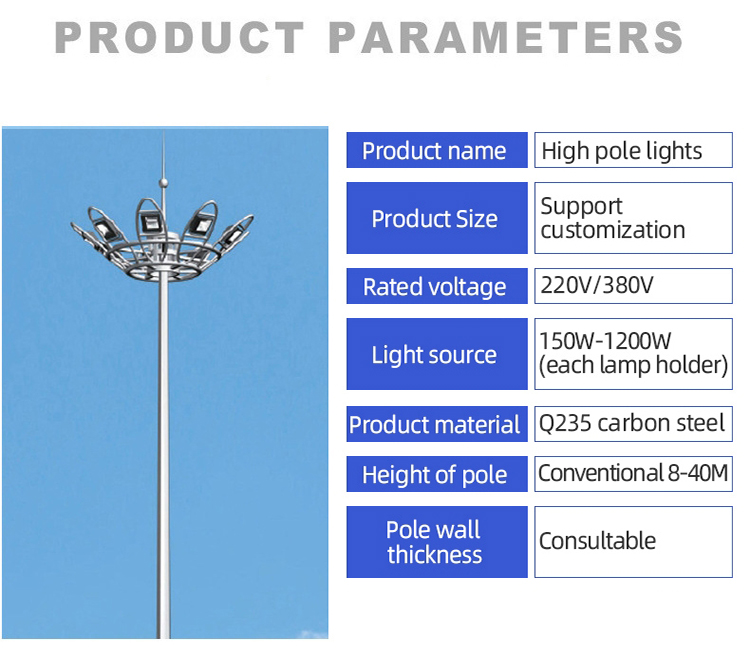

Specification
Height | From 15 m to 45 m |
Shape | Round conical; Octagonal tapered; Straight square; Tubular stepped;Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52 |
Power | 400 W- 2000 W |
Light Extension | Up to 30 000 m² |
Lifting system | Automatic Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute Euqiped e;ectromagnetism brake and break –proof device,manual opeation applied under power cut |
Electric appliance control device | Electric appliance box to be be the holde of the pole ,lifting operation could be 5 meter away from the pole through wire Time control and light control could be equipped to realize full-load lighting mode and part lighitng mode |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Design of pole | Against earthquake of 8 grade |
Length of per section | Within 14m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness | 1 mm to 30 mm |
Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Wind resistance | Customized,according to customer's environment |

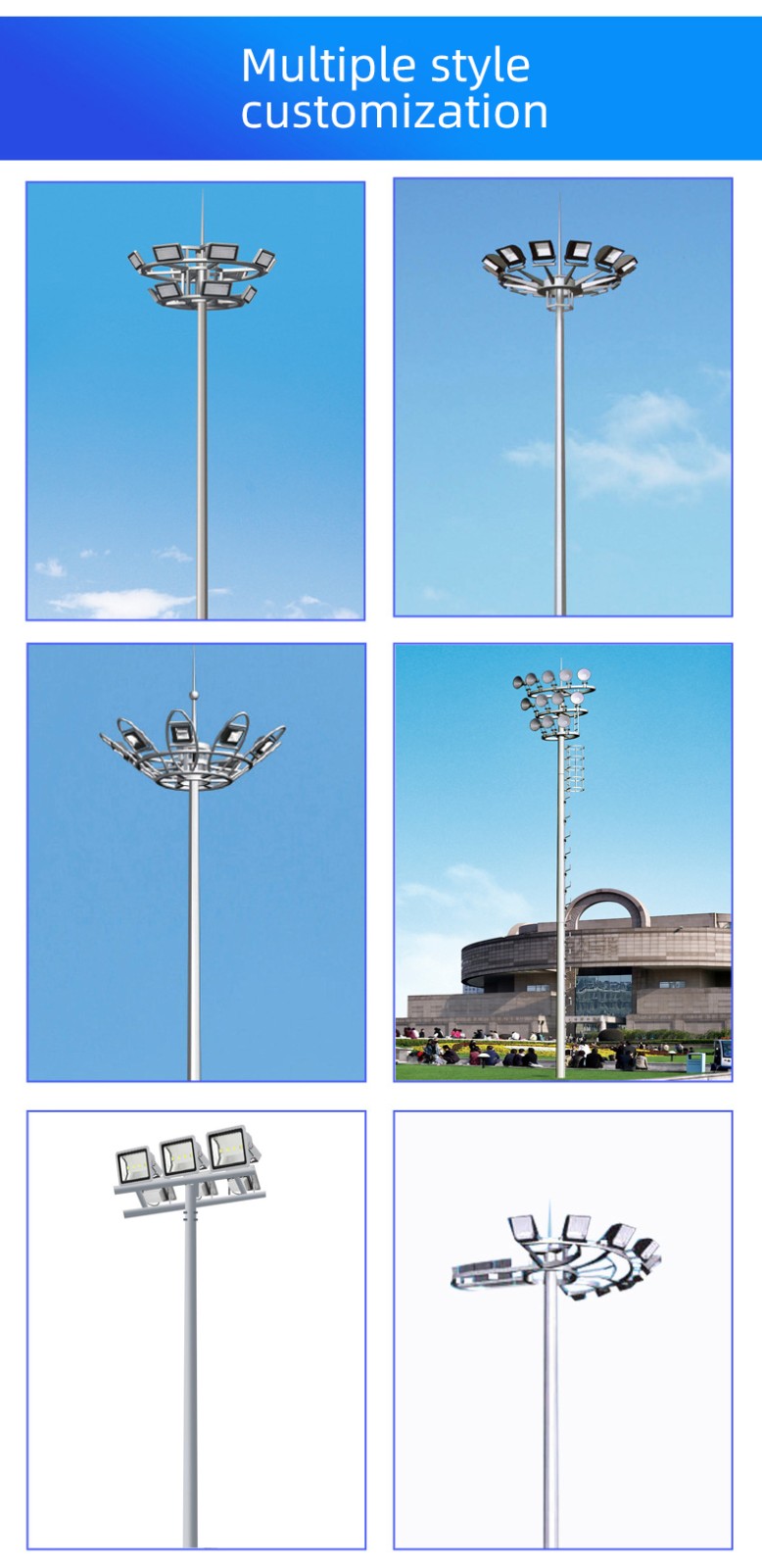

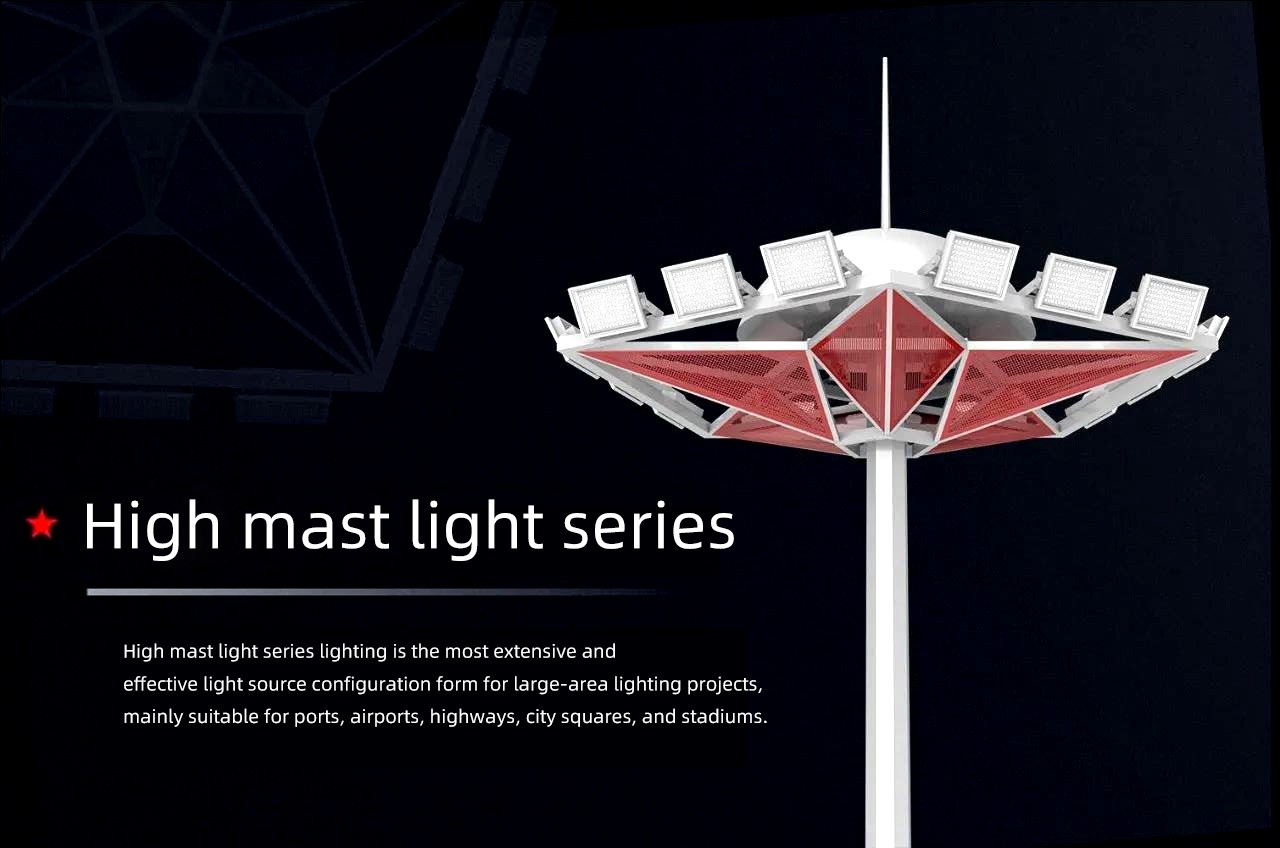

High mast light series
High mast light series lighting is the most extensive and effective light source configuration form for large-area lighting projects, mainly suitable for ports, airports, highways, city squares, and stadiums.

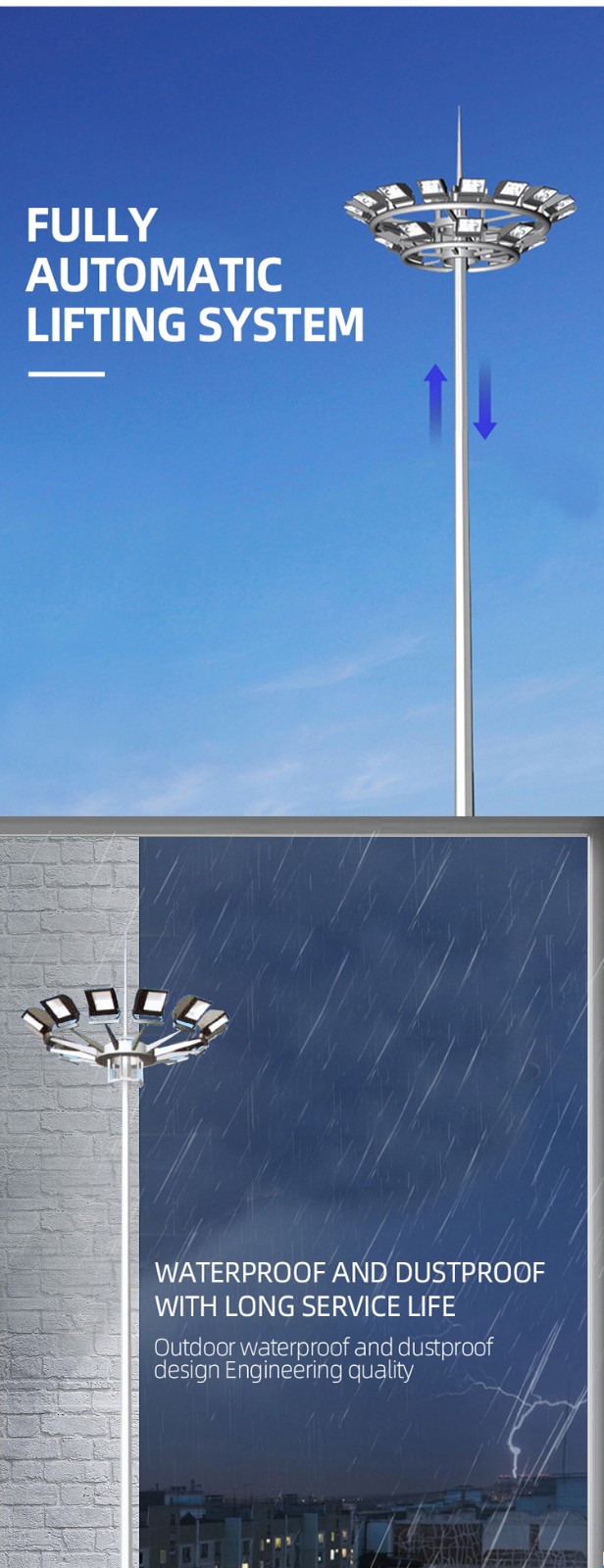

WATERPROOF AND DUSTPROOF WITH LONG SERVICE LIFEOutdoor waterproof and dustproof design Engineering quality

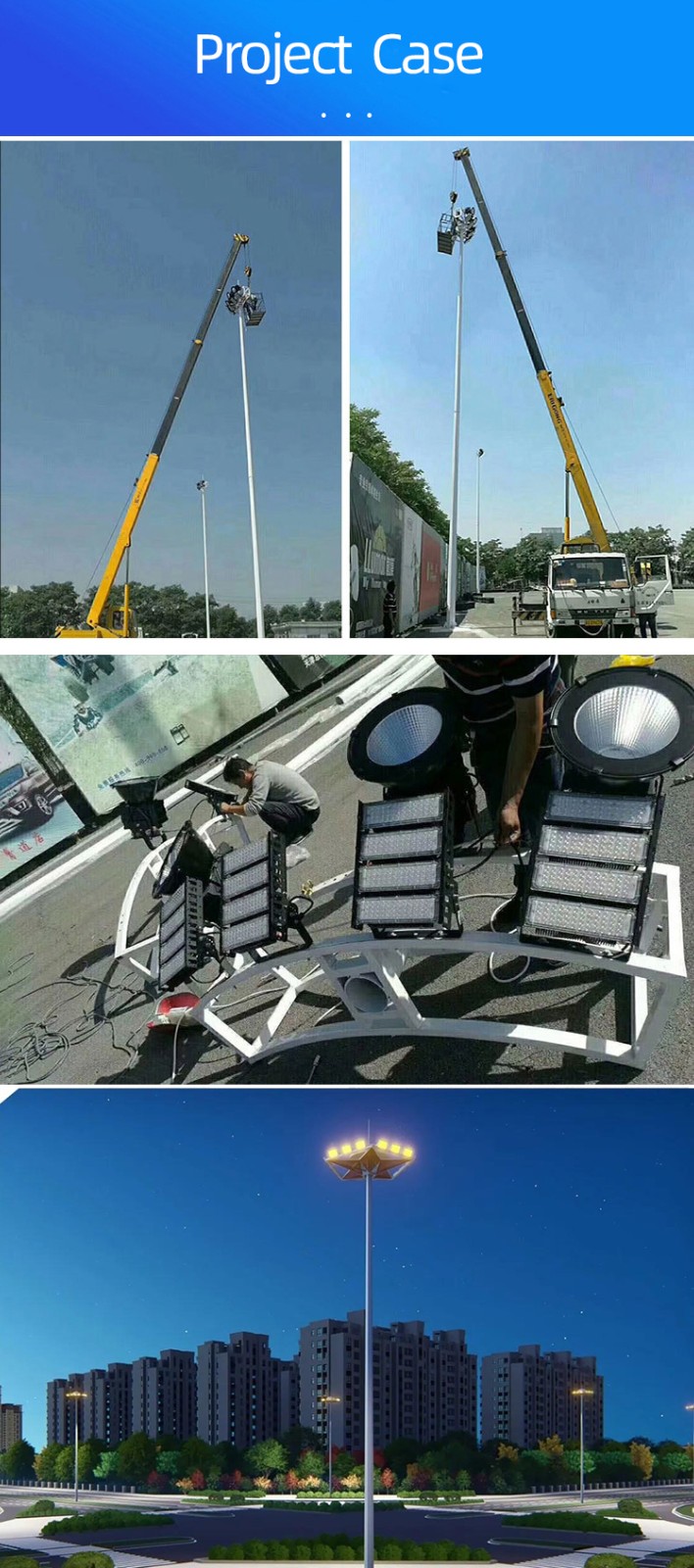

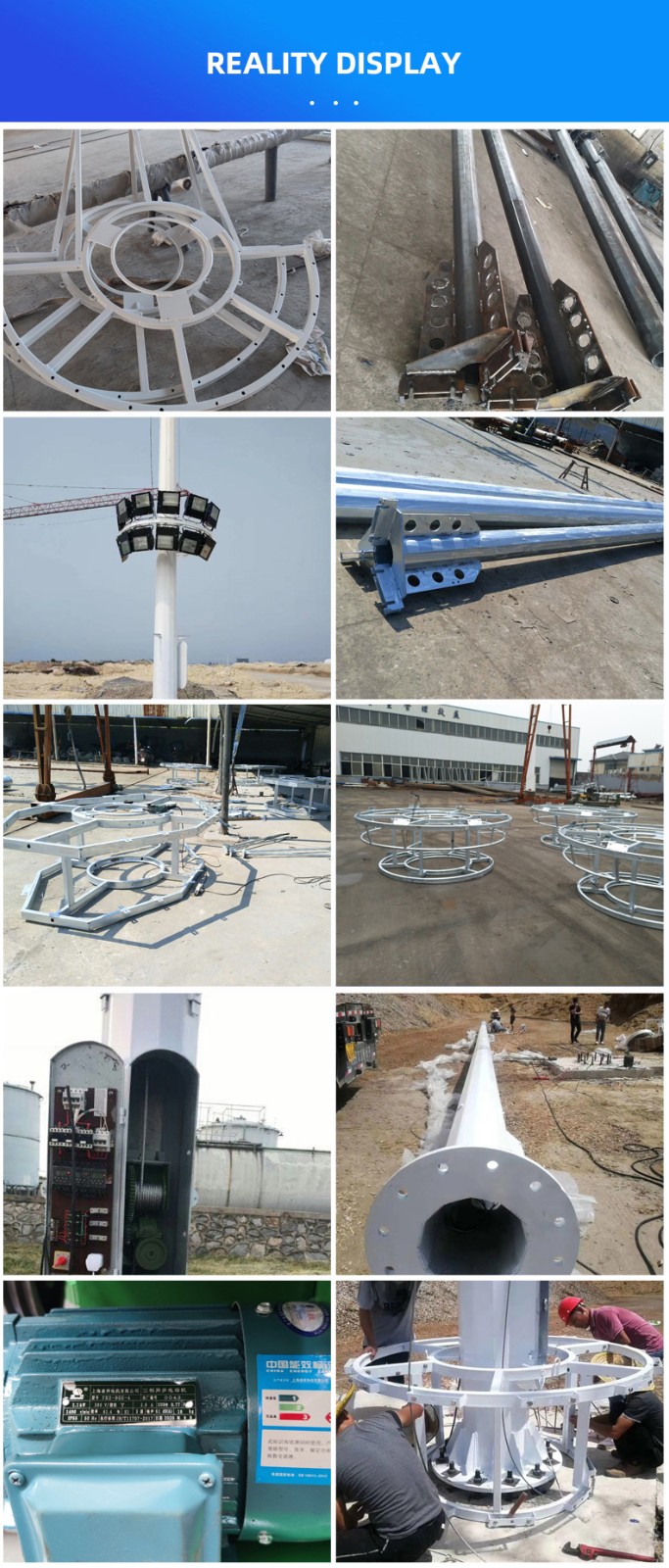

PROJECT CASE
Packing & Delivery

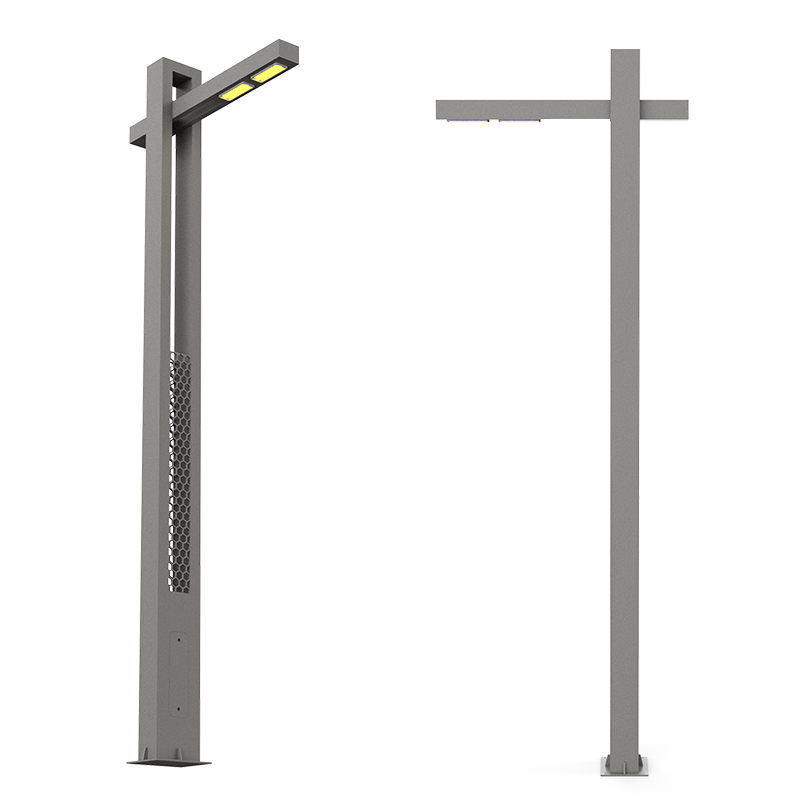

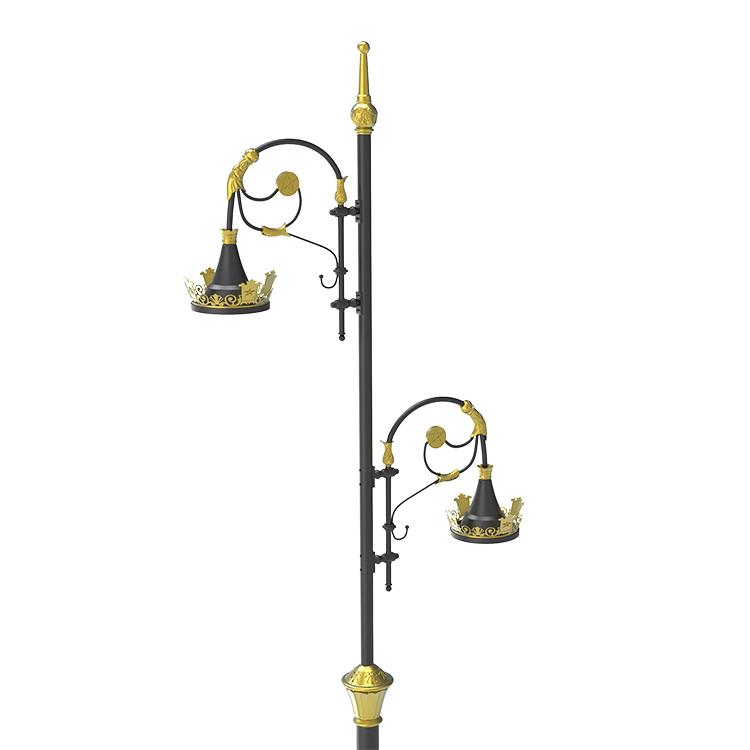

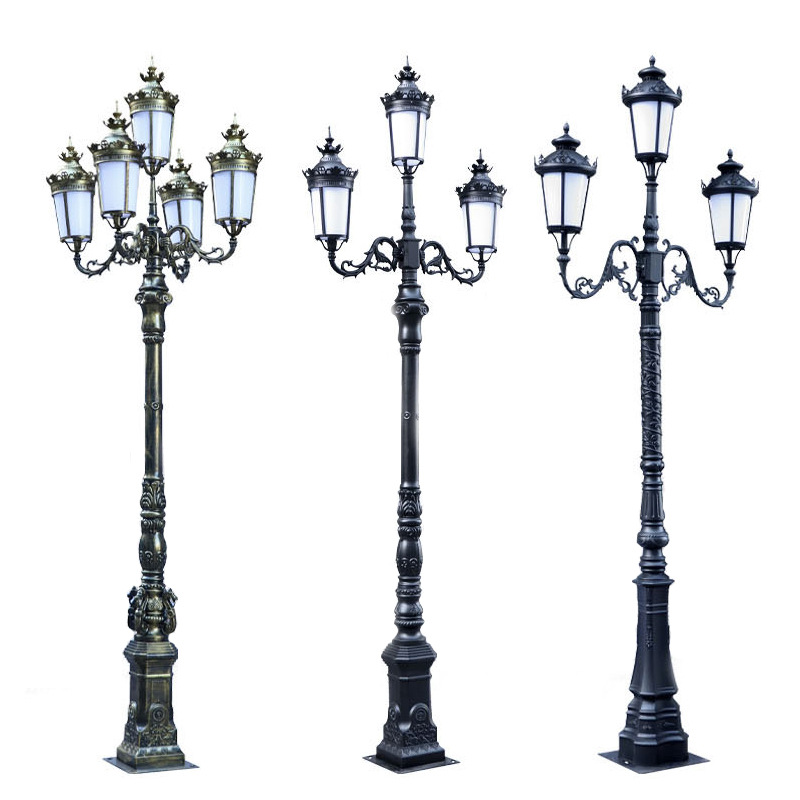

Recommend
