China manufacturer 5m 6m 8m 10m 12m Galvanized street light pole price
- Height:3m-35m
- Material:Q235/Q345/Q460 Steel
- Surface treatment:Hot dip galvanized+Powder coating
- Zinc layer thickness:>80
- Warranty:20years
Our Advantages

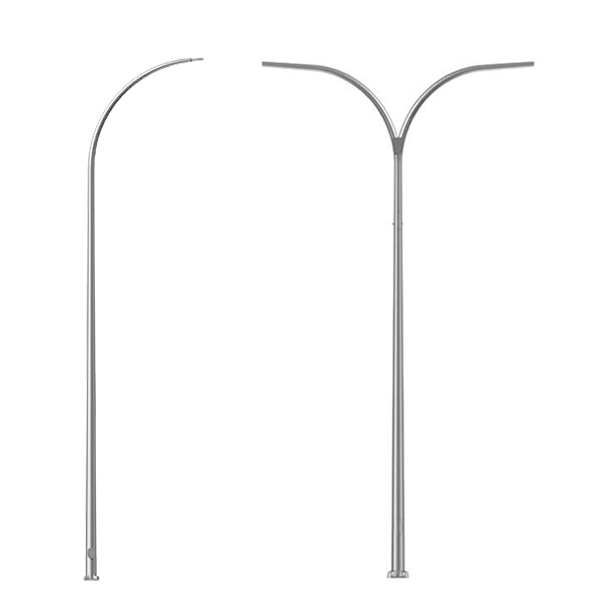

Our single and double arm conical lamp poles are constructed using Q235 Steel as the raw material. They are available in heights ranging from 3 meters to 12 meters (15ft, 20ft, 30ft, 35ft, 40ft) with a wall thickness of 3.0mm to 6.0mm (0.12 inches to 0.19 inches). These poles come in both single and double arm types, with variable arm lengths from 1m to 3m. The curved arms are specifically designed for mounting LED street lights or solar street lights.

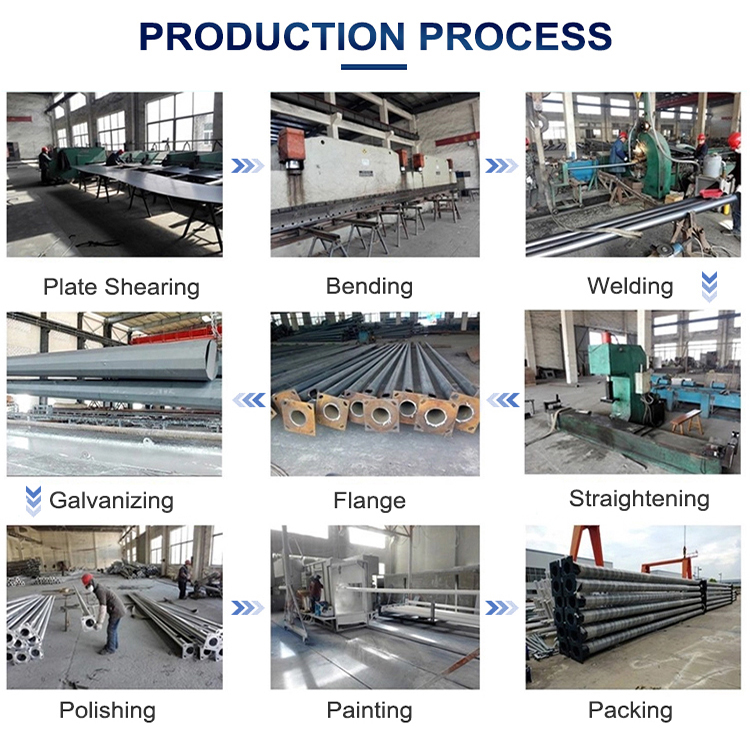

The design of these light poles is simple and basic, making them easy to install and maintain. They have undergone rigorous testing for high strength and durability. Generally, they are suitable for various applications such as streets, squares, stadiums, highways, expressways, and seaside areas. These street lighting poles meet all relevant ASTM standards and undergo flaw testing after welding. The internal and external double welding ensures a visually appealing weld, in accordance with international welding standards like CWB and BS EN15614. Our team of welders has over 18 years of welding experience.

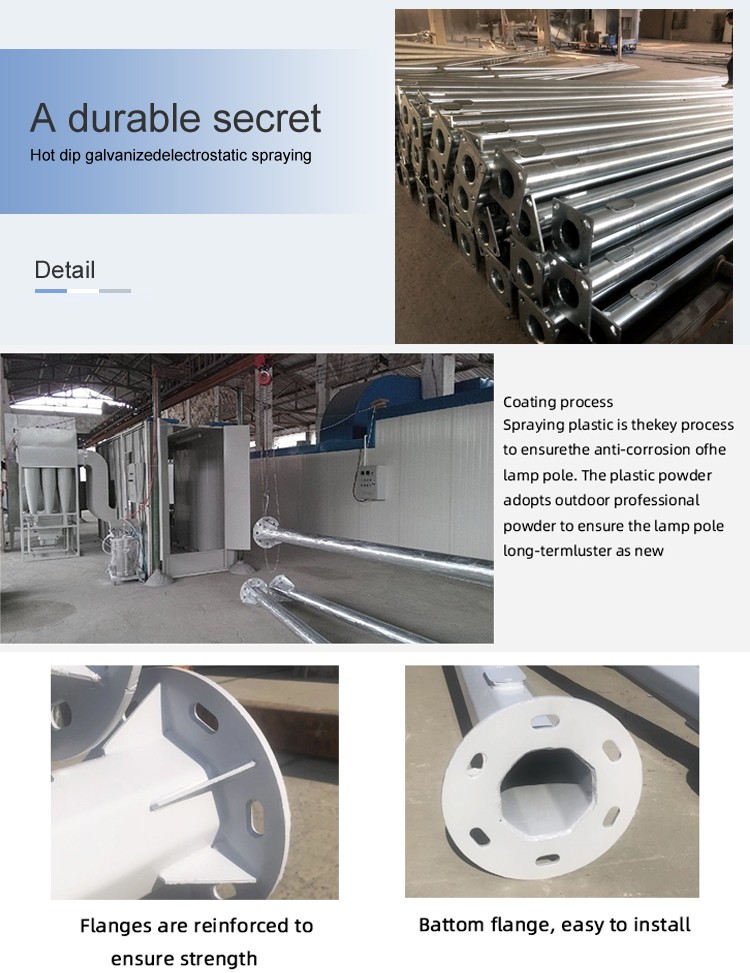

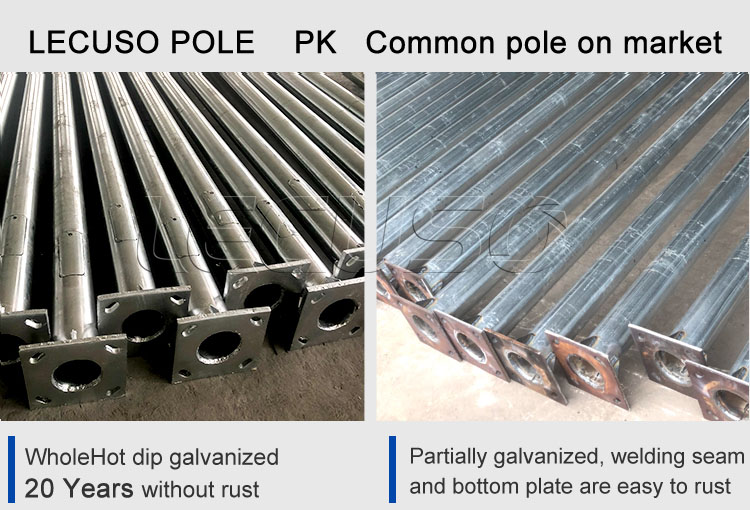

To enhance the longevity and corrosion resistance of our light poles, we apply a hot-dip galvanization process to the entire pole. The zinc layer thickness is not less than 80 microns, and our LECUSO light poles typically have a zinc layer thickness exceeding 100 μm. This ensures that our poles can withstand coastal environments without experiencing significant corrosion, thus providing a service life of up to 20 years.
Specification
3M ~ 12M Street Light Pole Specification
Light Pole Height | Top Diameter | Bottom Diameter | Pole Thickness | Base Plate |
3M | 60 mm | 130 mm | 2.75 mm | 250 * 250 * S14 mm |
4M | 60 mm | 130 mm | 2.75 mm | 260 * 260 * S14 mm |
5M | 60 mm | 140 mm | 3.00 mm | 260 * 260 * S14 mm |
6M | 60 mm | 145 mm | 3.00 mm | 300 * 300 * S16 mm |
7M | 76 mm | 160 mm | 3.00 mm | 300 * 300 * S16 mm |
8M | 80 mm | 180 mm | 3.25 ~ 4.00 mm | 320 * 320 * S20 mm |
9M | 80 mm | 180 mm | 3.25 ~ 4.00 mm | 350 * 350 * S20 mm |
10M | 90 mm | 200 mm | 3.5 ~ 4.00 mm | 400 * 400 * S20 mm |
11M | 100 mm | 205 mm | 3.75 ~ 4.00 mm | 400 * 400 * S20 mm |
12M | 100 mm | 220 mm | 4.00 ~ 5.00 mm | 400 * 400 * S20 mm |
±2/% | ||||
Minimum yield strength | 285Mpa-450Mpa | |||
Anti-corrosion performance | Class II | |||
Against earthquake grade | 10 | |||
Color | Customized | |||
Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | |||

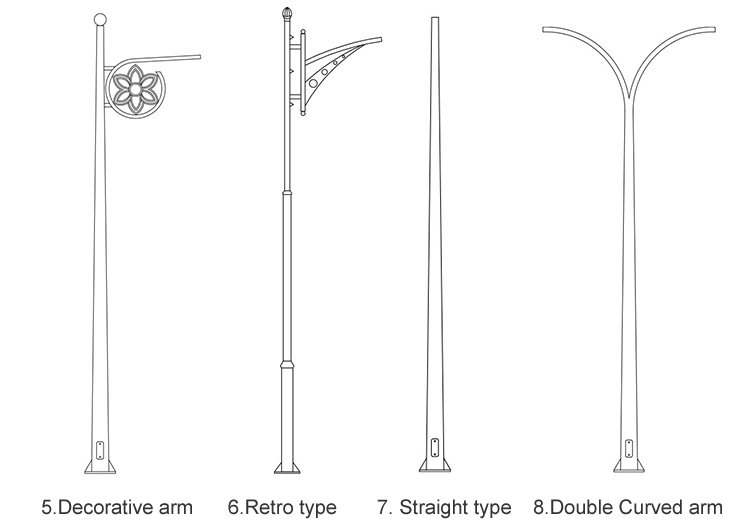

Shape Type | Conical pole, Octagonal pole,Square pole, Diameter pole | |||

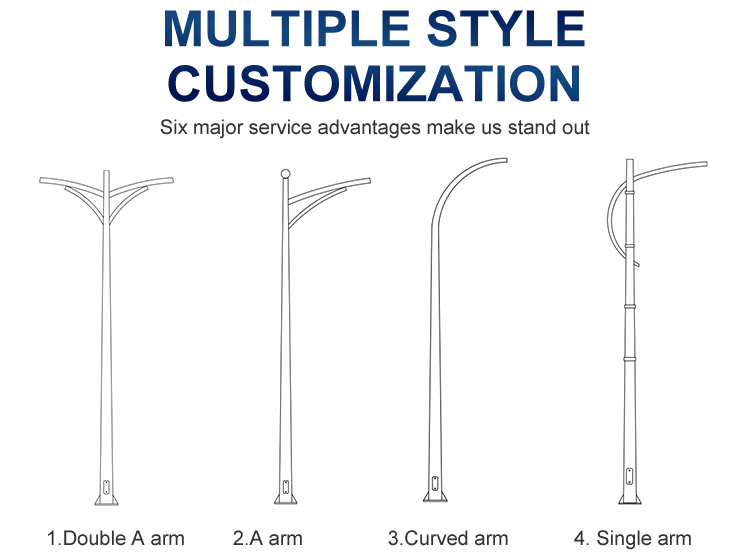

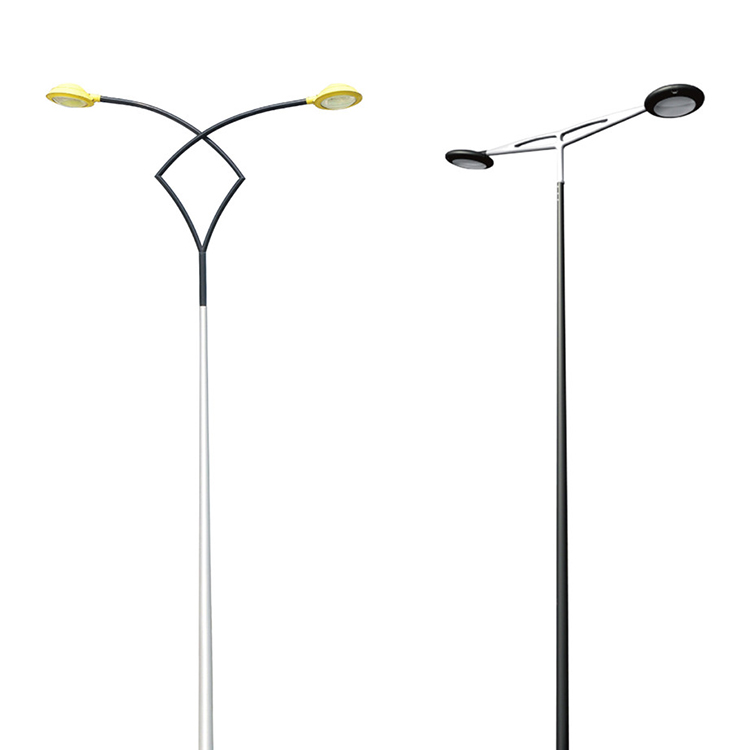

Arm Type | single arm,double arms,triple arms,four arms | |||
Stiffener | With big size to strength the pole to resist the wind | |||
Powder coating | Thickness of powder coating>100um. Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square). | |||
Wind Resistance | According to local weather condition, General design strength of wind resistance is ≥150KM/H | |||

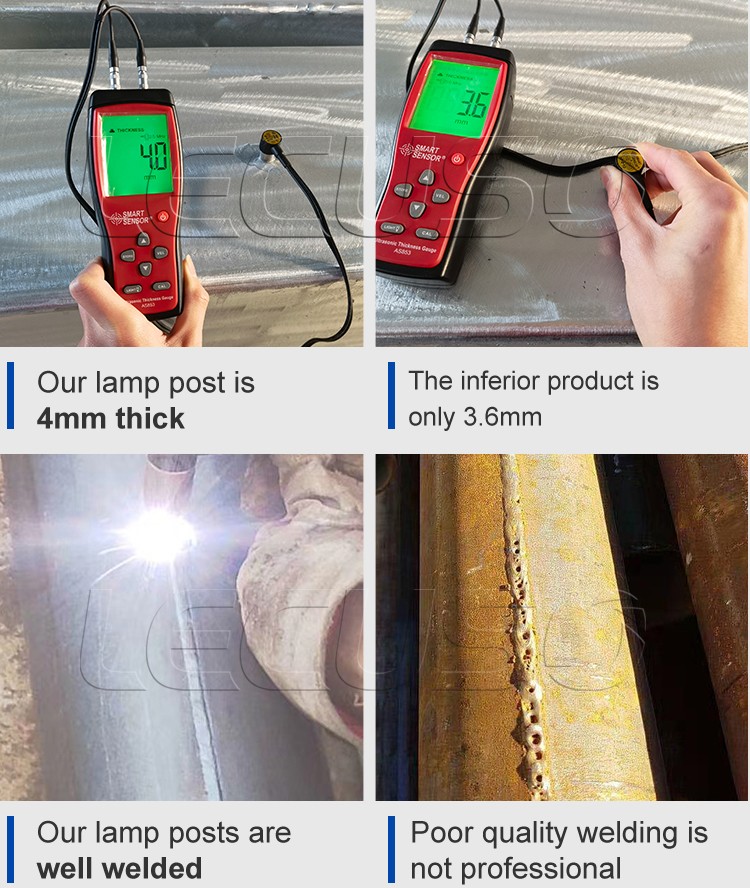

Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | |||
Hot-Dip Galvanized | Thickness of hot-galvanized>80um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. | |||
Material | Aluminium,SS304 is available | |||
Passivation | Available | |||

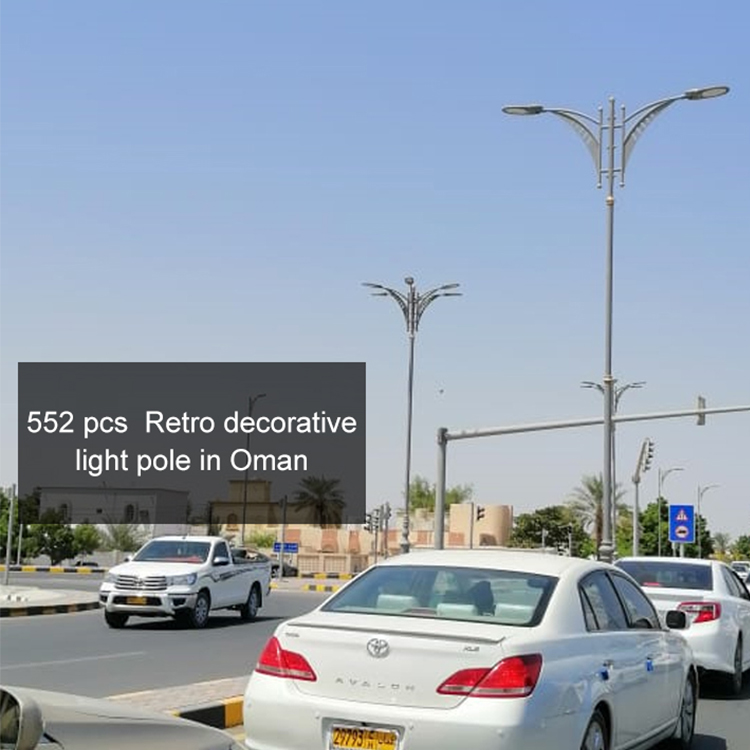

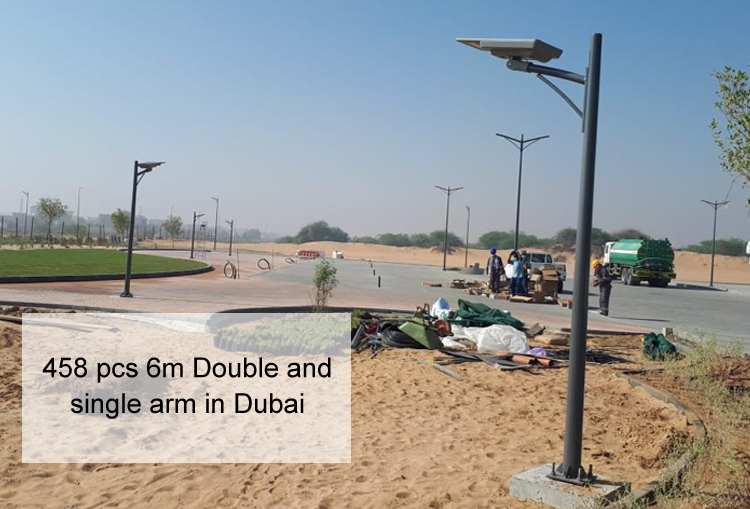

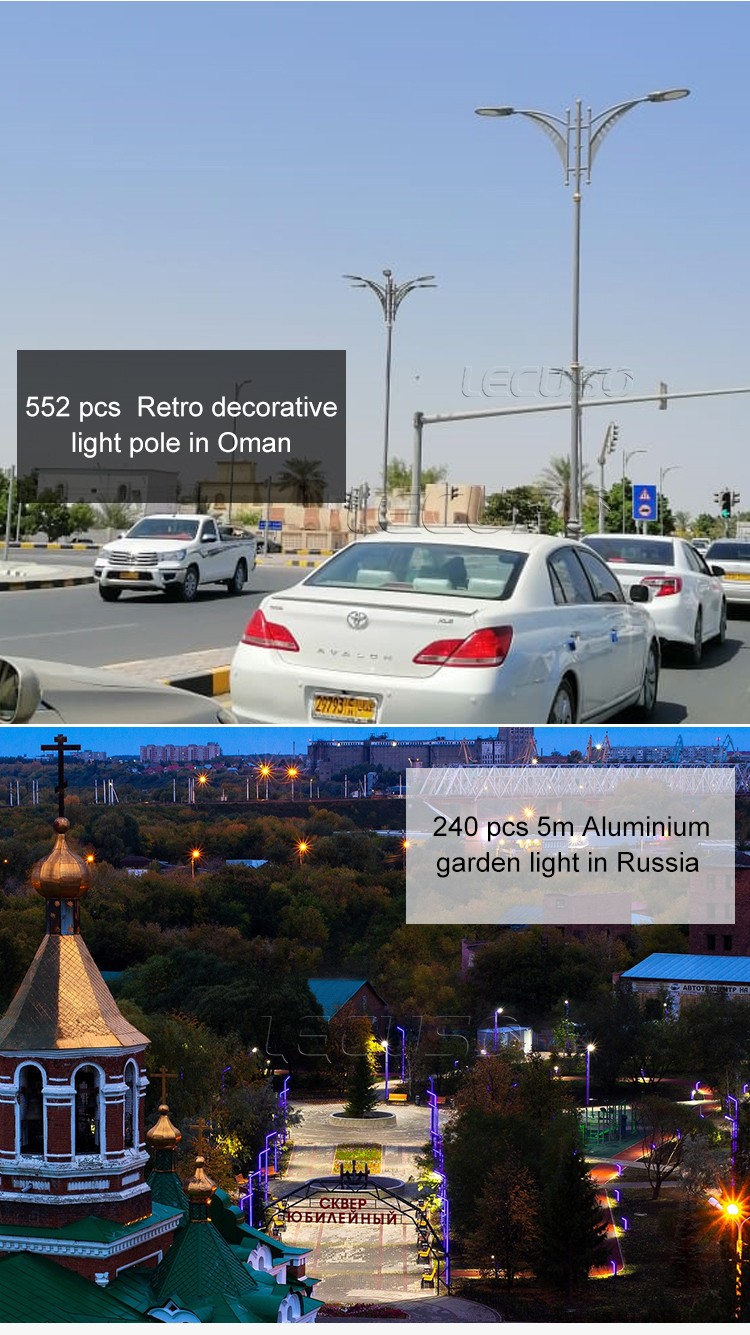

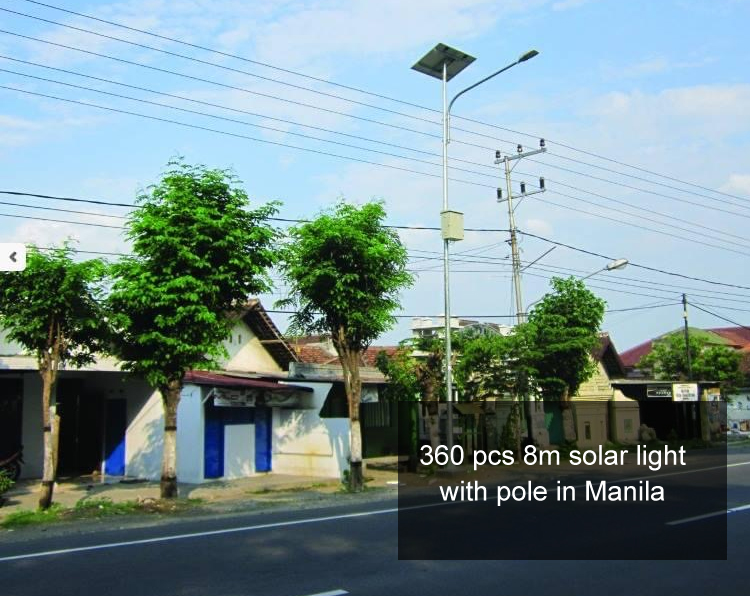

PROJECT CASE

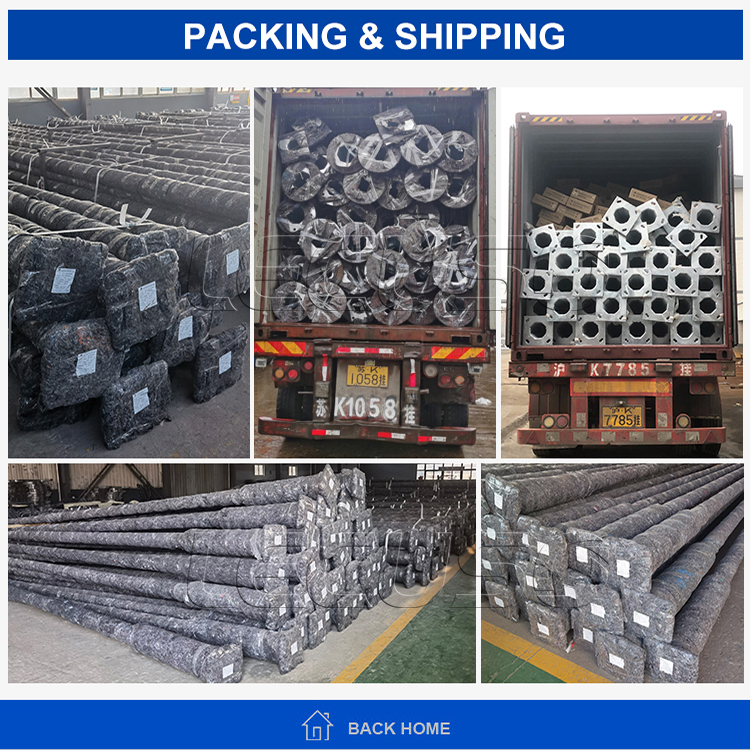

Packing & Delivery
